Product Overview

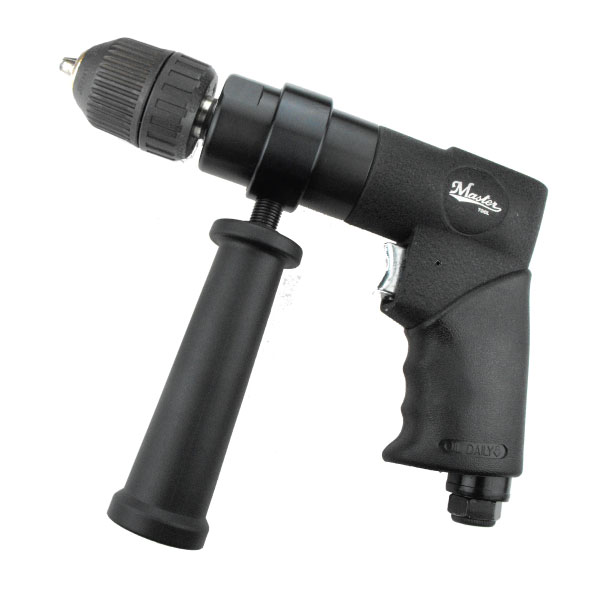

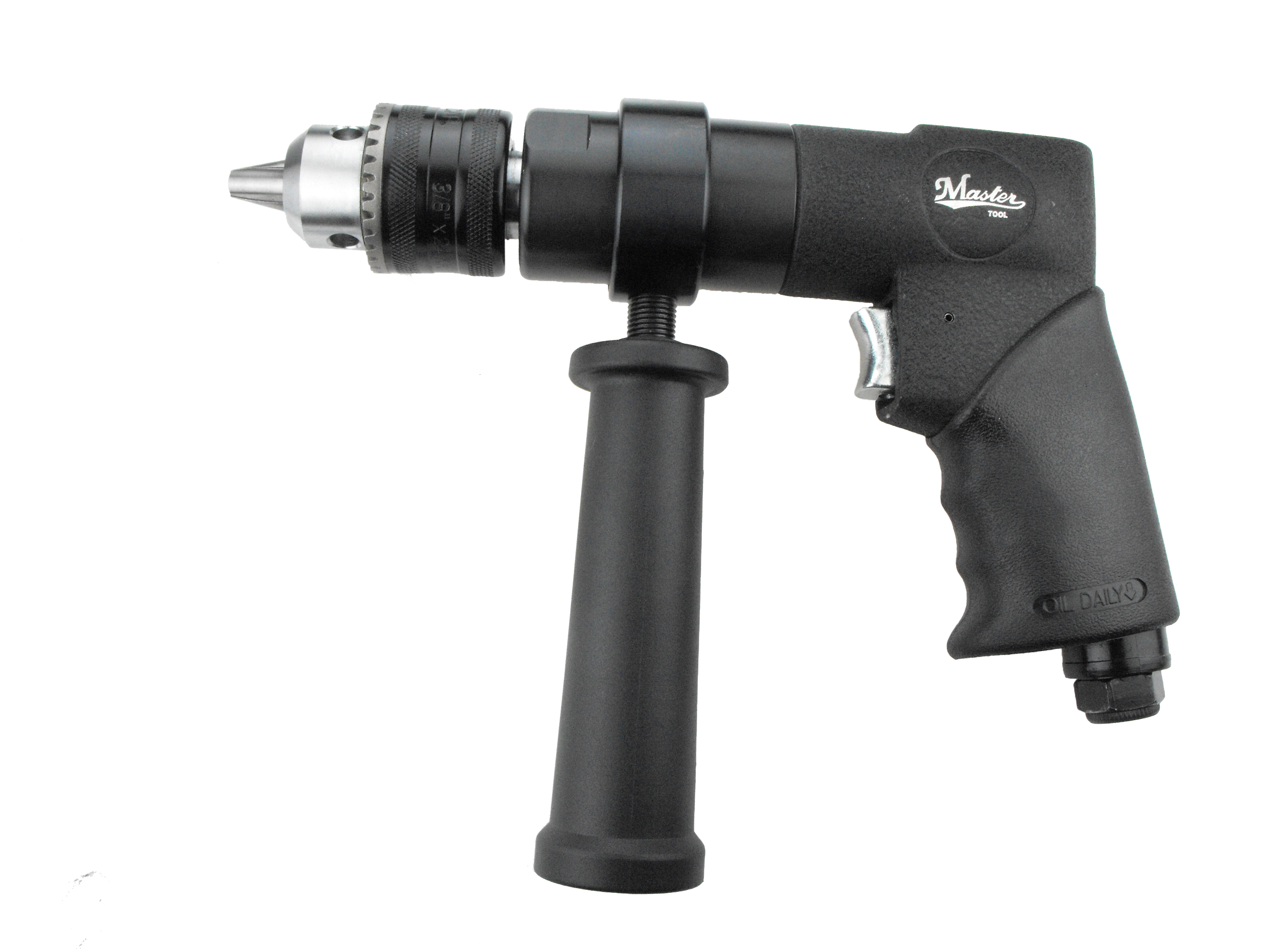

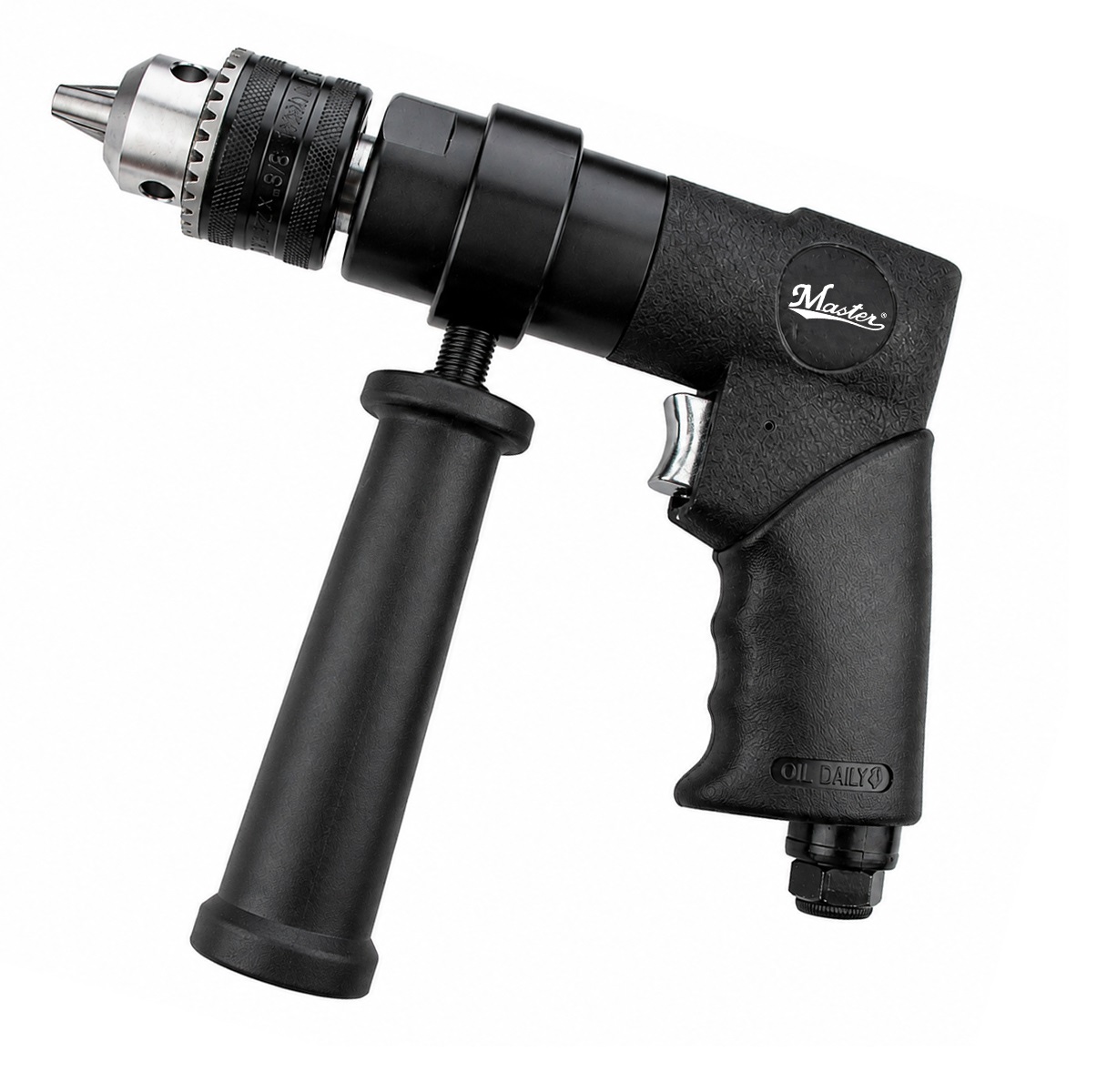

The 1/2" Pistol Air Drill from Master Palm's Heavy Duty series delivers compact power and durability for factory and industrial applications. Equipped with a Jacob Keyed Chuck, this drill ensures tight tolerance and reliable performance in demanding production environments.
Its ergonomic design includes a specially positioned adjustable side handle and a palm curve tail end, optimizing strength and operator control during extended use.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 500 RPM |
| Air Consumption | 17 SCFM / 2.3885 CFM / 375.5232 m³/hr / 6.25872 m³/min |
| Air Pressure | 90 PSIA / 6.2055 bar / 620.55 kPa |
| Overall Length | 8.74 in / 222 mm |
| Weight | 1.36 kg / 2.992 lb |
| Exhaust | Rear |
| Noise Level | 89 dBA |
| Air Hose Size | 3/8 in / 9.525 mm |
| Horsepower | 0.5 HP / 0.375 kW |
| Chuck Size | 1/2 in / 13 mm |
| Spindle Thread | 3/8-24T |
| Item No. | 21540 |
|---|---|
| Free Speed / RPM | 500 |
| Air Consumption / SCFM | 17 |
| Air Consumption / CFM | 2.3885 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 8.74015748 |
| Overall Length / mm | 222 |
| Weight / lb | 2.992 |
| Weight / kg | 1.36 |
| Exhaust | Rear |
| Noise / dBA | 89 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.5 |
| kW | 0.375 |
| Chuck Size / inch | 1/2 |
| Chuck Size / mm | 13 |
| Spindle Thread | 3/8-24T |
Key Features
- Heavy duty construction for industrial use
- Jacob Keyed Chuck with ball bearing design for tight tolerance drilling
- Special position adjustable side handle for enhanced control
- Ergonomic push point and rubber jacket grip for operator comfort
- Non-reversible drill design for consistent performance
- Pressure push tail design to maximize strength focusing points
- Ambidextrous clamp shaft design for versatile handling
Applications
Applications
The 1/2" Pistol Air Drill is engineered for heavy-duty, tight tolerance production drilling in industrial and factory settings. Its Jacob Keyed Chuck is optimized for demanding drilling tasks requiring precision and durability.
