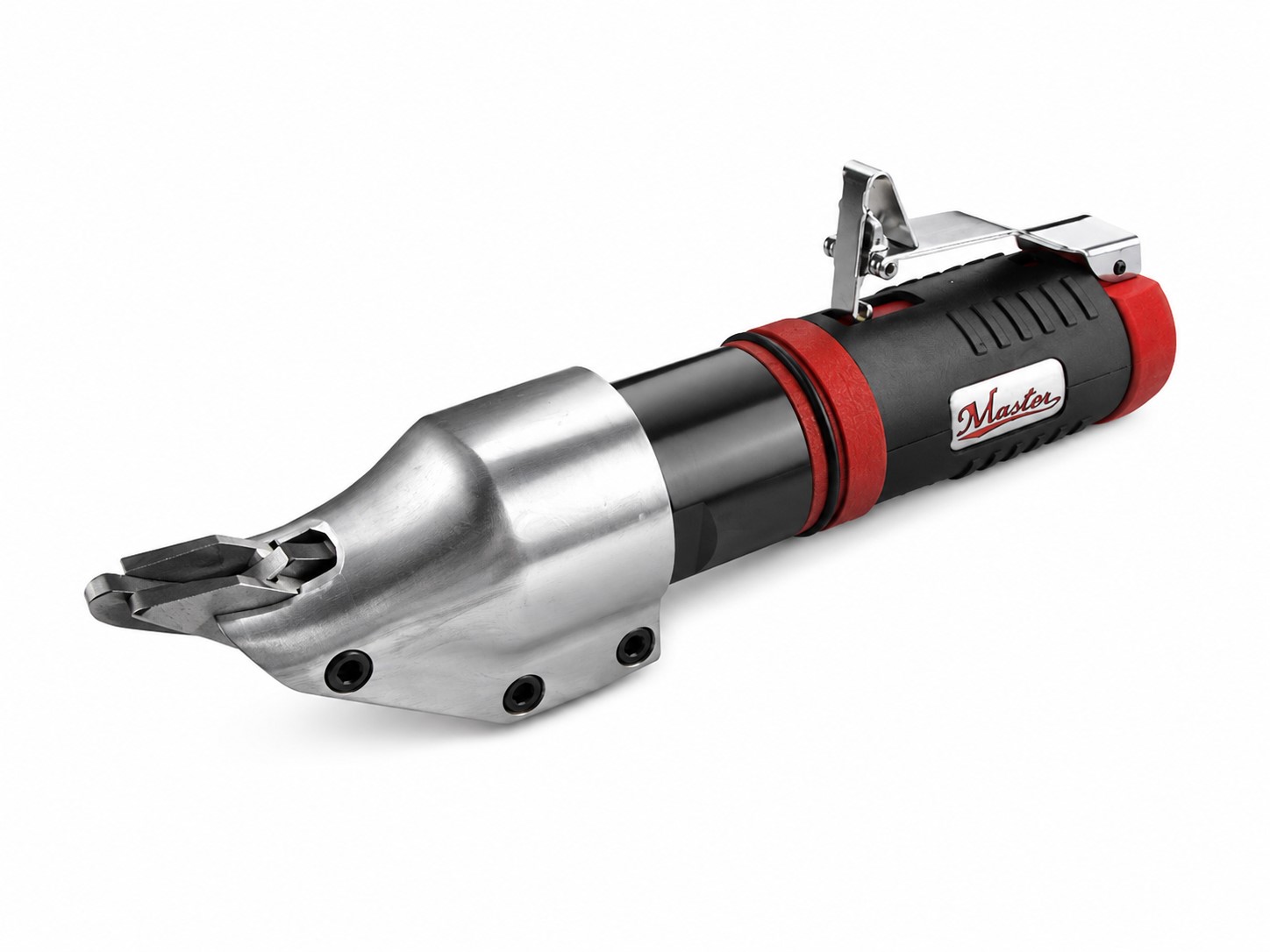

Industrial Straight Air Shear Overview
The Ind. Straight Air Shear is engineered for heavy-duty industrial applications requiring precise cutting of metal sheets up to 1.9 mm thickness. Its robust pneumatic motor ensures consistent power output while the rubber jacket grip enhances operator comfort during extended use. The tool incorporates a safety lever for controlled throttle operation, minimizing risks of accidental startups. Additionally, it supports muffler hose connection to reduce operational noise, making it suitable for factory environments.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 2000 RPM |
| Strokes Per Minute | 2000 BPM |
| Air Consumption | 20.1 SCFM / 14.1 CFM / 23.94 m³/hr / 0.26 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 9.88 in / 251 mm |
| Weight | 1.2 kg / 2.64 lb |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.9 HP |
| Power | 0.68 kW |
| Item No. | 18490 |
|---|---|
| Free Speed / RPM | 2000 |
| Strokes Per Minute | 2000 |
| Air Consumption / SCFM | 20.1 |
| Air Consumption / CFM | 14.1 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.88 |
| Overall Length / mm | 251 |
| Weight / lb | 2.64 |
| Weight / kg | 1.2 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.9 |
| kW | 0.68 |
Key Features
- Powerful industrial grade motor for reliable cutting performance.
- Capable of cutting metal sheets up to 1.9 mm thickness.
- Ergonomic rubber jacket grip ensures smooth operation and operator comfort.
- Safety lever design provides precise throttle control and prevents accidental startups.
- Option to connect muffler hose to reduce noise during operation.
Applications
Applications
Designed for industrial use, the Ind. Straight Air Shear excels in cutting aluminum, tin, and steel sheets. It is ideal for precise curve line, square, and angle cutting tasks in manufacturing, metal fabrication, and maintenance operations requiring durable and compact pneumatic tools.
