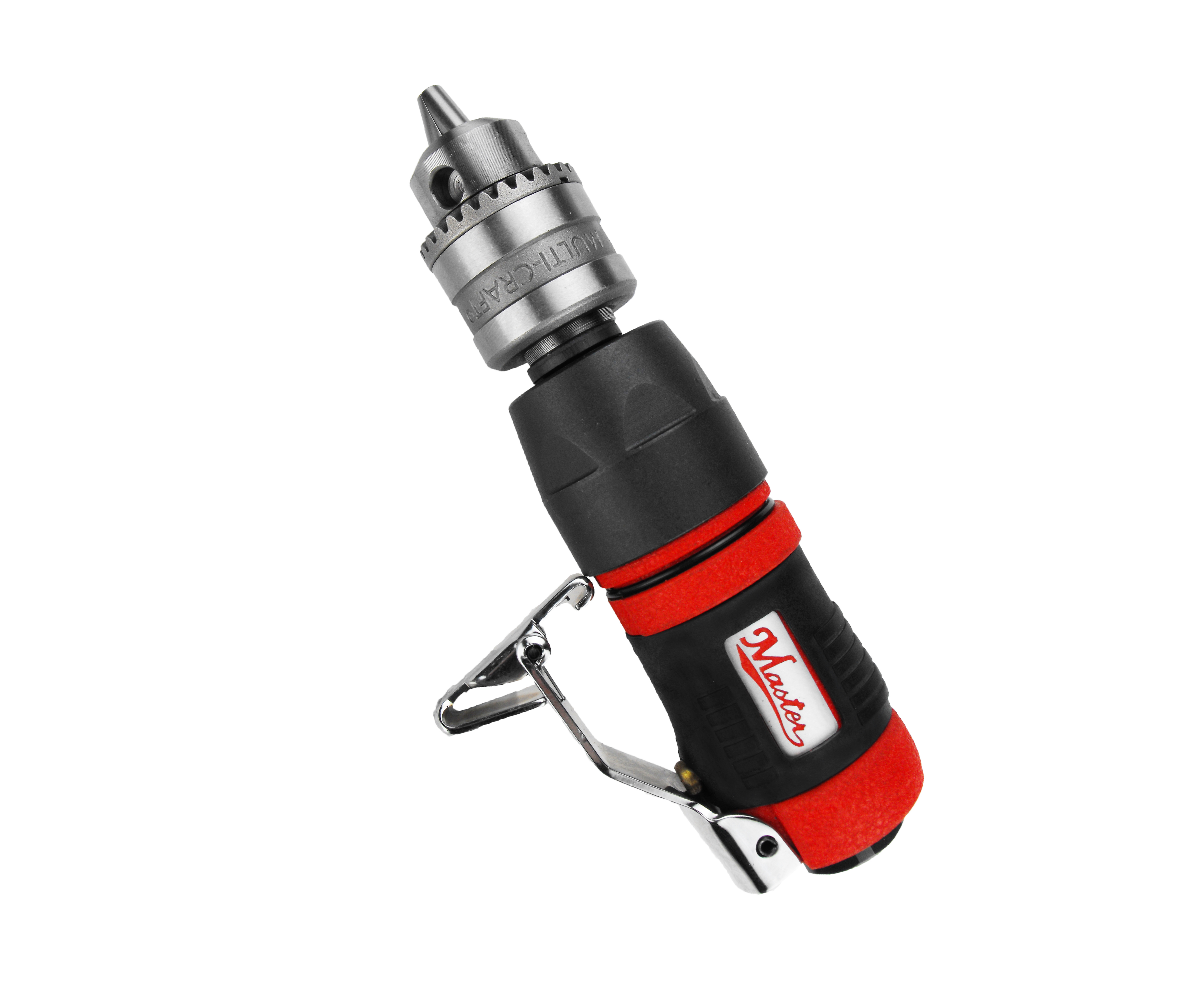

1/4" Straight Air Drill Overview
The 1/4" Straight Air Drill is engineered for industrial applications requiring compact, durable, and precise pneumatic tools. Part of the Palm Mini series, it features a high-quality Jacob keyed chuck and a palm-sized housing that fits comfortably in tight areas without sacrificing performance.
Its safety throttle control enhances operational safety by preventing accidental startups and allowing fine air flow adjustments. This drill is optimized for materials such as aluminum, tin, brass, and plastic, delivering high-speed drilling in a lightweight design.
| Item No. | 21010 |
|---|---|
| Free Speed / RPM | 6000 |
| Air Consumption / SCFM | 13 |
| Air Consumption / CFM | 2.015 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.516 |
| Overall Length / inch | 5.708661417 |
| Overall Length / mm | 145 |
| Weight / lb | 0.88 |
| Weight / kg | 0.4 |
| Exhaust | Rear |
| Noise / dBA | 80 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.25 |
| kW | 0.1875 |
| Chuck Size / inch | 1/4 |
| Chuck Size / mm | 6.5 |
| Spindle Thread | 3/8-24T |
Key Features
- Small, lightweight design for ease of use in confined spaces
- High-quality Jacob keyed chuck for secure bit holding
- Safety throttle control to prevent accidental tool startup and allow precise air flow regulation
- High-speed operation suitable for aluminum, tin, brass, and plastic materials
- Palm-sized housing providing the shortest length in the market for enhanced maneuverability
Applications
Applications
- Touch drilling tasks requiring precision and control
- Operations in hard-to-reach or confined industrial areas
- General purpose drilling on aluminum, tin, brass, and plastic components
- Factory environments demanding durable and reliable pneumatic tools
