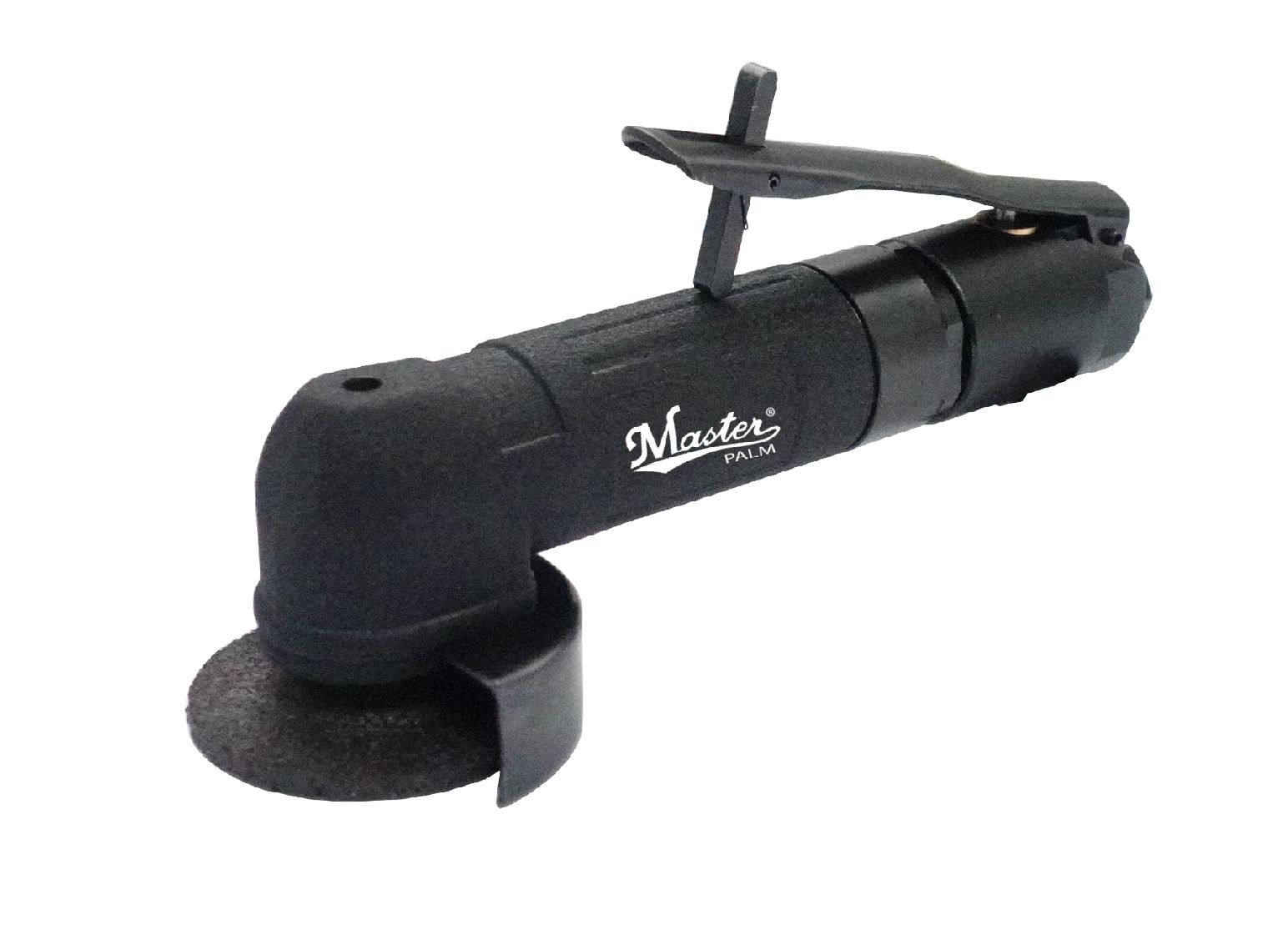

2" Grinder Overview
The 2" Grinder is engineered for industrial applications requiring compact power and durability. It features a powerful motor that outperforms conventional right angle grinders, ensuring efficient grinding performance. Designed for both female and male operators, it reduces hand and wrist stress during extended use.
The tool incorporates rear exhaust technology, allowing connection to a muffler hose for noise reduction. Throttle control enables precise air flow adjustment and prevents tool auto startup. The grinding wheel cover enhances safety by preventing abrasive flap splashing hazards.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 15000 RPM |
| Air Consumption | 20.1 SCFM / 14.1 CFM / 23.94 m³/hr / 0.26 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 7.4 in / 188 mm |
| Weight | 0.7 kg / 1.54 lb |
| Exhaust | Rear |
| Noise Level | 92 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.9 HP |
| Power | 0.68 kW |
| Disc/Wheel Size | 2 in / 50 mm |
| Item No. | 38020 |
|---|---|
| Free Speed / RPM | 15000 |
| Air Consumption / SCFM | 20.1 |
| Air Consumption / CFM | 14.1 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 7.4 |
| Overall Length / mm | 188 |
| Weight / lb | 1.54 |
| Weight / kg | 0.7 |
| Exhaust | Rrar |
| Noise / dBA | 92 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.9 |
| kW | 0.68 |
| Disc Size / inch | 2 |
| Disc Size / mm | 50 |
Key Features
- Powerful motor surpasses conventional industrial grade right angle grinders.
- Ergonomic design reduces hand and wrist stress for all users.
- Rear exhaust design compatible with muffler hose for noise reduction.
- Throttle control for precise air flow adjustment and prevention of auto startup.
- Grinding wheel cover enhances operator safety by preventing abrasive flap splashing.
Applications
Industrial Applications
The 2" Grinder is ideal for factory and industrial environments requiring compact, durable pneumatic tools. It supports precision grinding tasks while minimizing operator fatigue, suitable for assembly lines, maintenance, and fabrication workshops.
