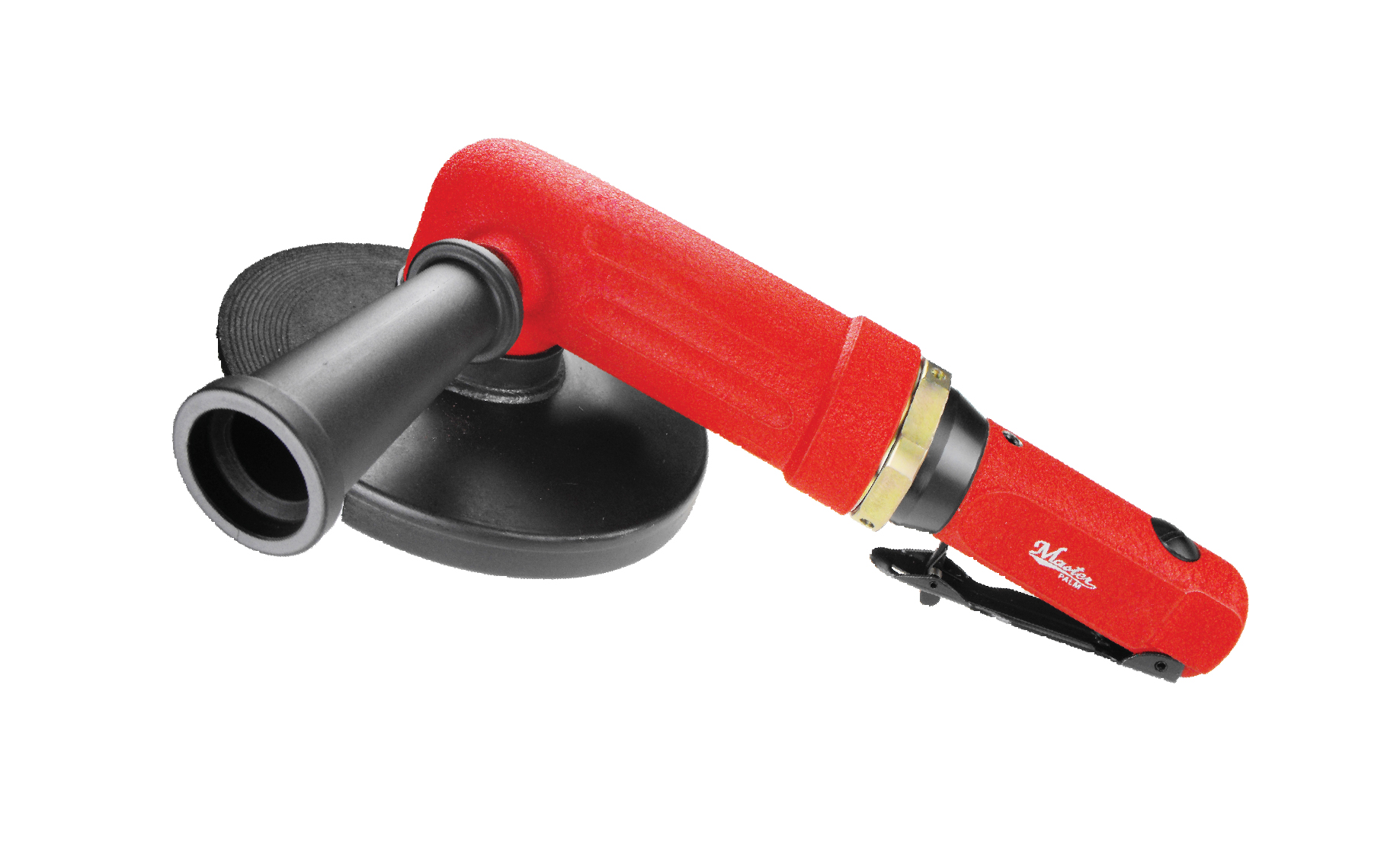

7" Angle Grinder Overview
This 7" Angle Grinder is engineered for precision and durability in industrial applications. It features a larger grinding wheel size suitable for extensive surface tasks, combined with an ergonomic extended housing grip for superior handling and stability during operation.
The tool includes a quick change wheel release mechanism that allows faster wheel replacement without the need for additional tools, optimizing workflow efficiency. Its one-piece brush arm design prevents brush hang-up caused by dust ingestion, ensuring consistent performance and longevity.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 5500 RPM |
| Air Consumption | 5.55 SCFM / 3.1 CFM / 5.26 m³/hr / 0.09 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 21.6 in / 549 mm |
| Weight | 3.2 kg / 7.05 lb |
| Exhaust | Front |
| Noise Level | 94 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.9 HP |
| Power | 1.2 kW |
| Disc/Wheel Size | 7 in / 177 mm |
| Item No. | 31470 |
|---|---|
| Free Speed / RPM | 5500 |
| Air Consumption / SCFM | 5.55 |
| Air Consumption / CFM | 3.1 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 21.6 |
| Overall Length / mm | 549 |
| Weight / lb | 7.05 |
| Weight / kg | 3.2 |
| Exhaust | Front |
| Noise / dBA | 94 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.9 |
| kW | 1.2 |
| Disc Size / inch | 7 |
| Disc Size / mm | 177 |
Key Features
- 7" larger grinding wheel size for extensive area tasks with optimized angle height.
- Quick change wheel release enables faster wheel removal without a wrench.
- Extended housing body grip provides enhanced holding strength and operational stability.
- One-piece brush arm design prevents brush hang-up caused by dust ingestion, improving tool reliability.
Applications
Industrial Applications
Designed for factory and heavy industrial environments, this 7" Angle Grinder is ideal for surface grinding, metal fabrication, and maintenance tasks requiring durable, compact pneumatic power tools with reliable performance and easy serviceability.
