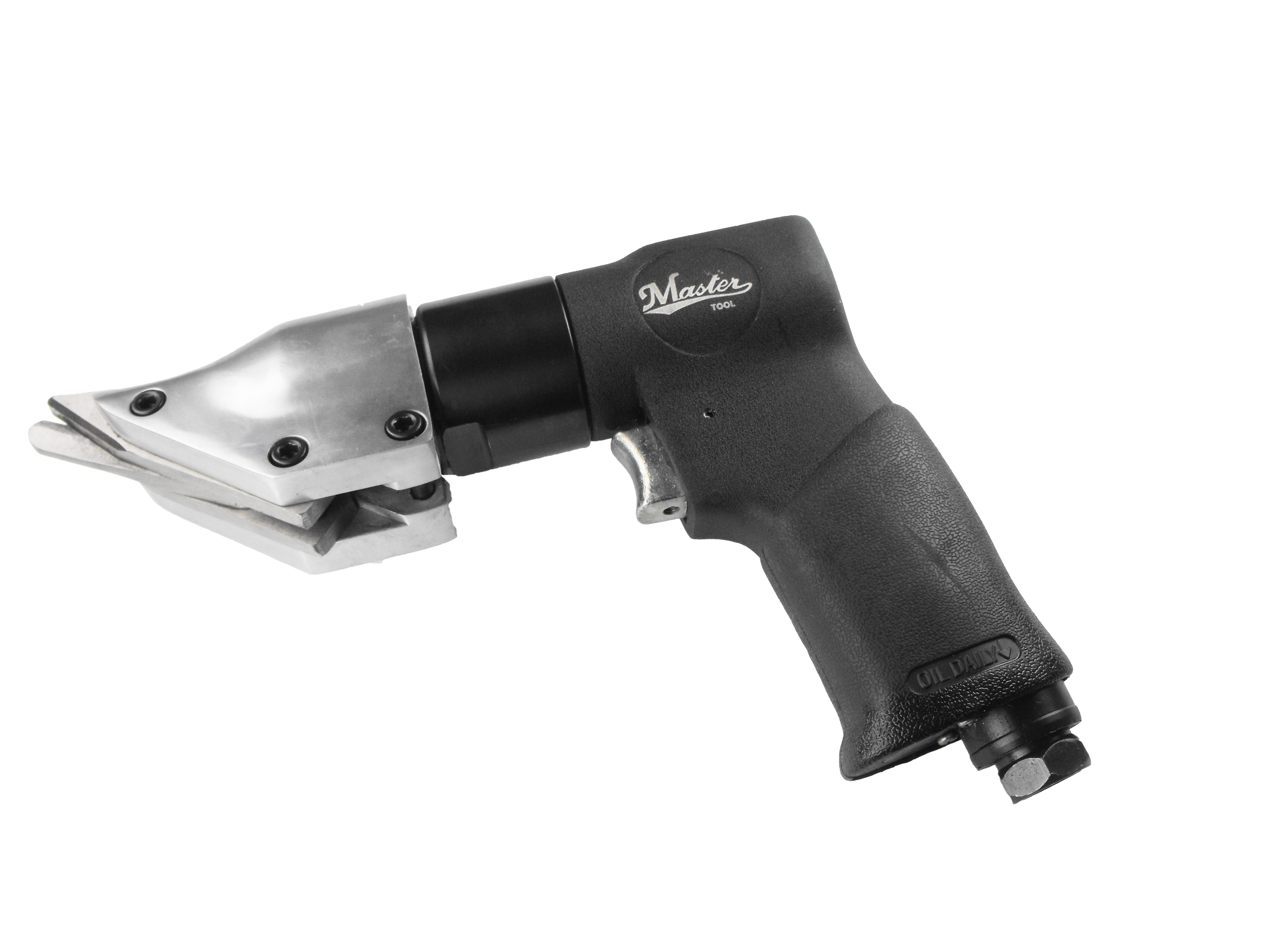

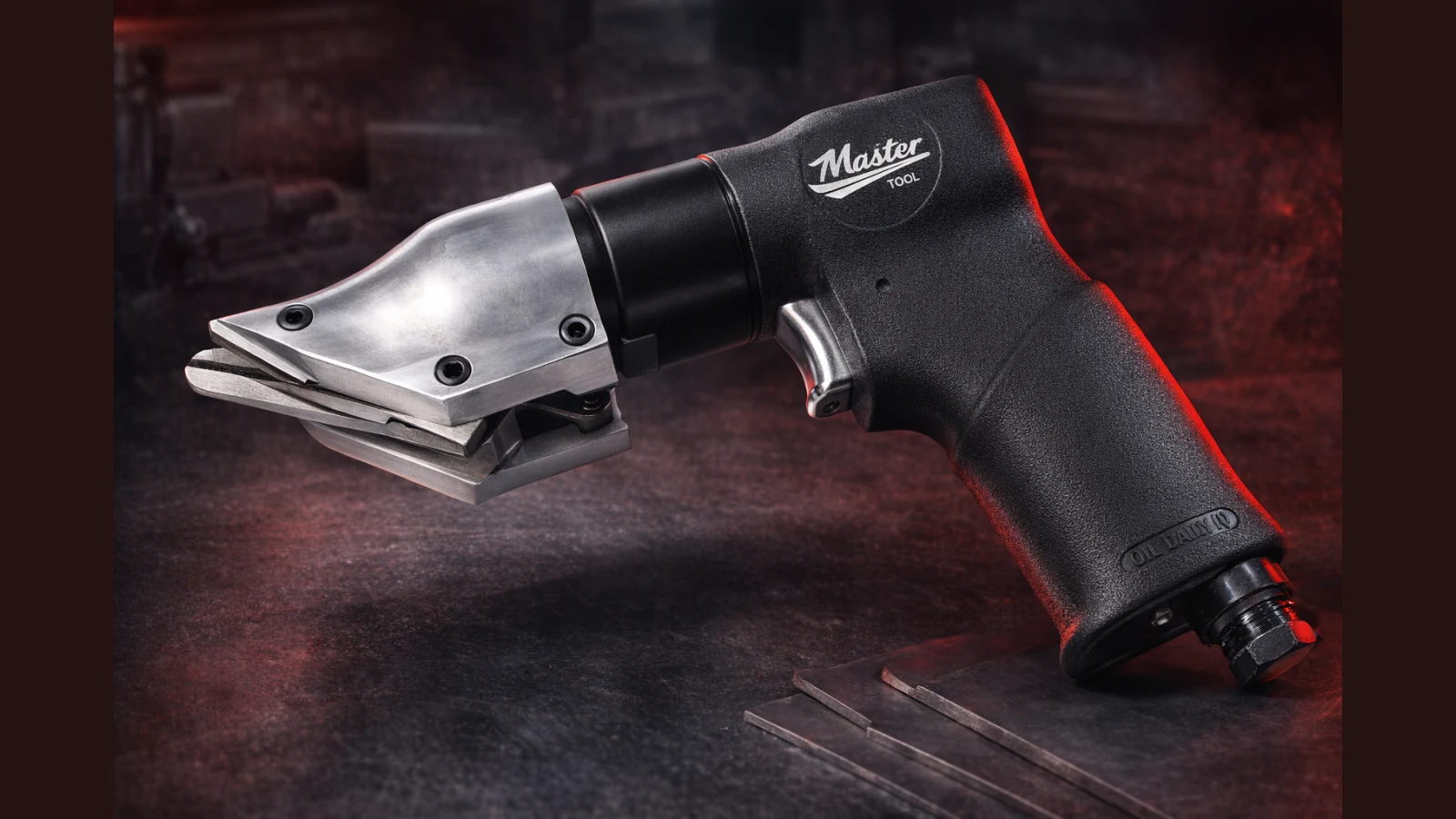

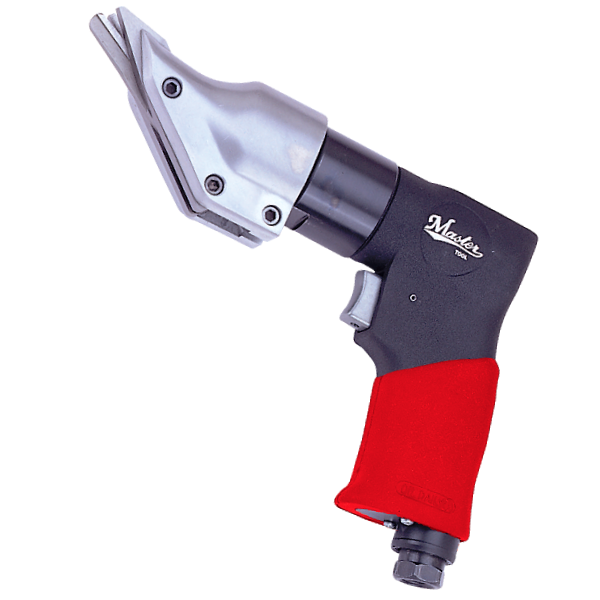

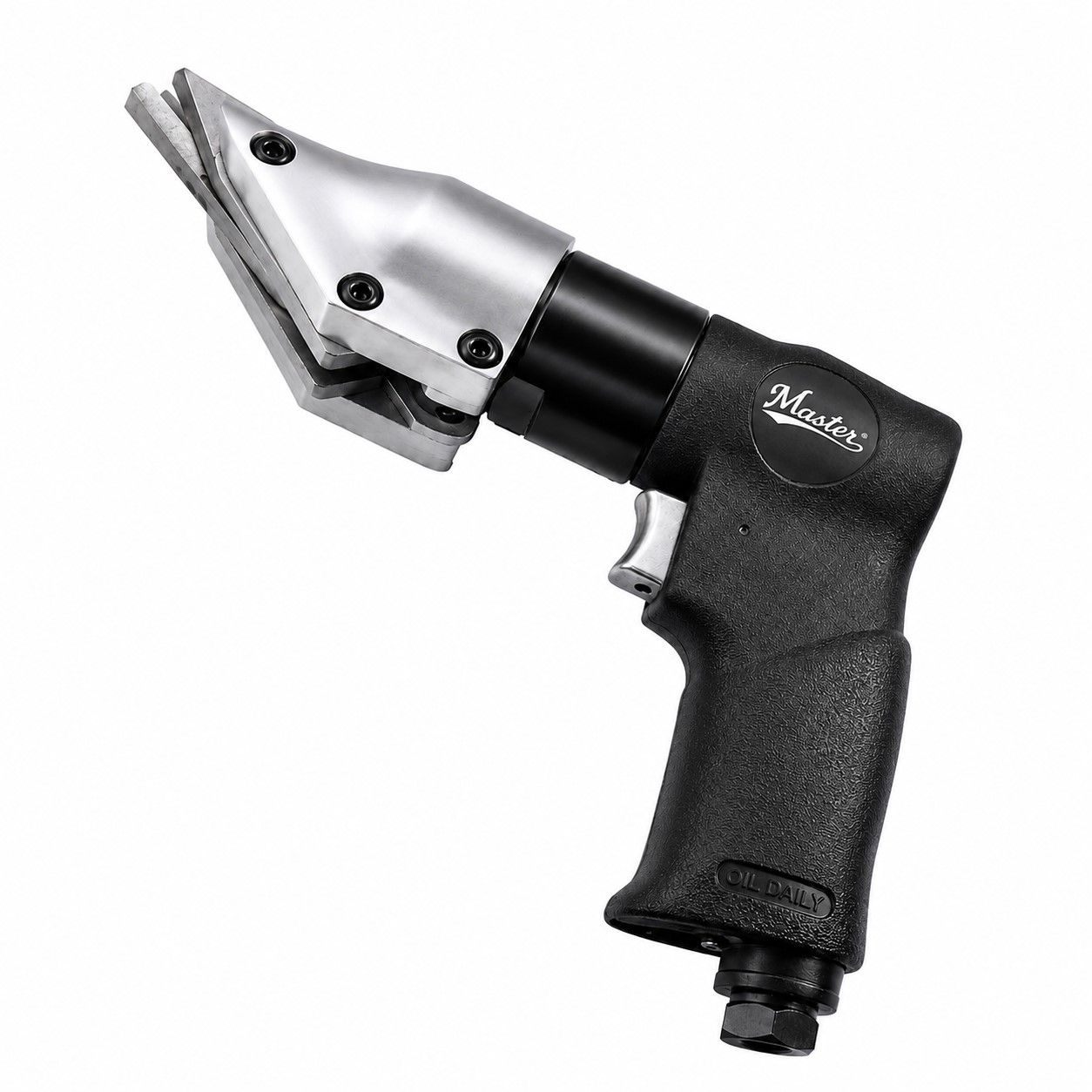

Heavy Duty Pistol Air Shear
The Pistol Air Shear is engineered for industrial use, providing powerful and precise cutting performance. Designed with a pistol grip for ergonomic handling, it operates at a free speed of 2000 rpm. This tool is ideal for cutting various sheet metals with durability and consistent results.
Its compact design and robust construction ensure reliable operation in factory environments, supporting heavy-duty applications with ease.
| Item No. | 11530 |
|---|---|
| Free Speed / RPM | 2000 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.529 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 7.913385827 |
| Overall Length / mm | 201 |
| Weight / lb | 2.816 |
| Weight / kg | 1.28 |
| Exhaust | Rear |
| Noise / dBA | 88 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.5 |
| kW | 0.375 |
Features
- Heavy Duty Series pistol grip design for comfortable handling
- Free speed of 2000 rpm for efficient cutting
- Optional muffler MSA-006 for noise reduction
- Capable of cutting up to 1.9 mm metal sheet thickness
- Rubber jacket grip enhances operator comfort and control
- Replacement blade kits available for 14 to 19 gauge cutting
Applications
Applications
Designed for heavy-duty shear cutting of common sheet metals including aluminum, tin, and other materials. Suitable for square angle cutting tasks in industrial and factory settings. Replacement blades support variable speed power shears for extended tool life and versatility.
