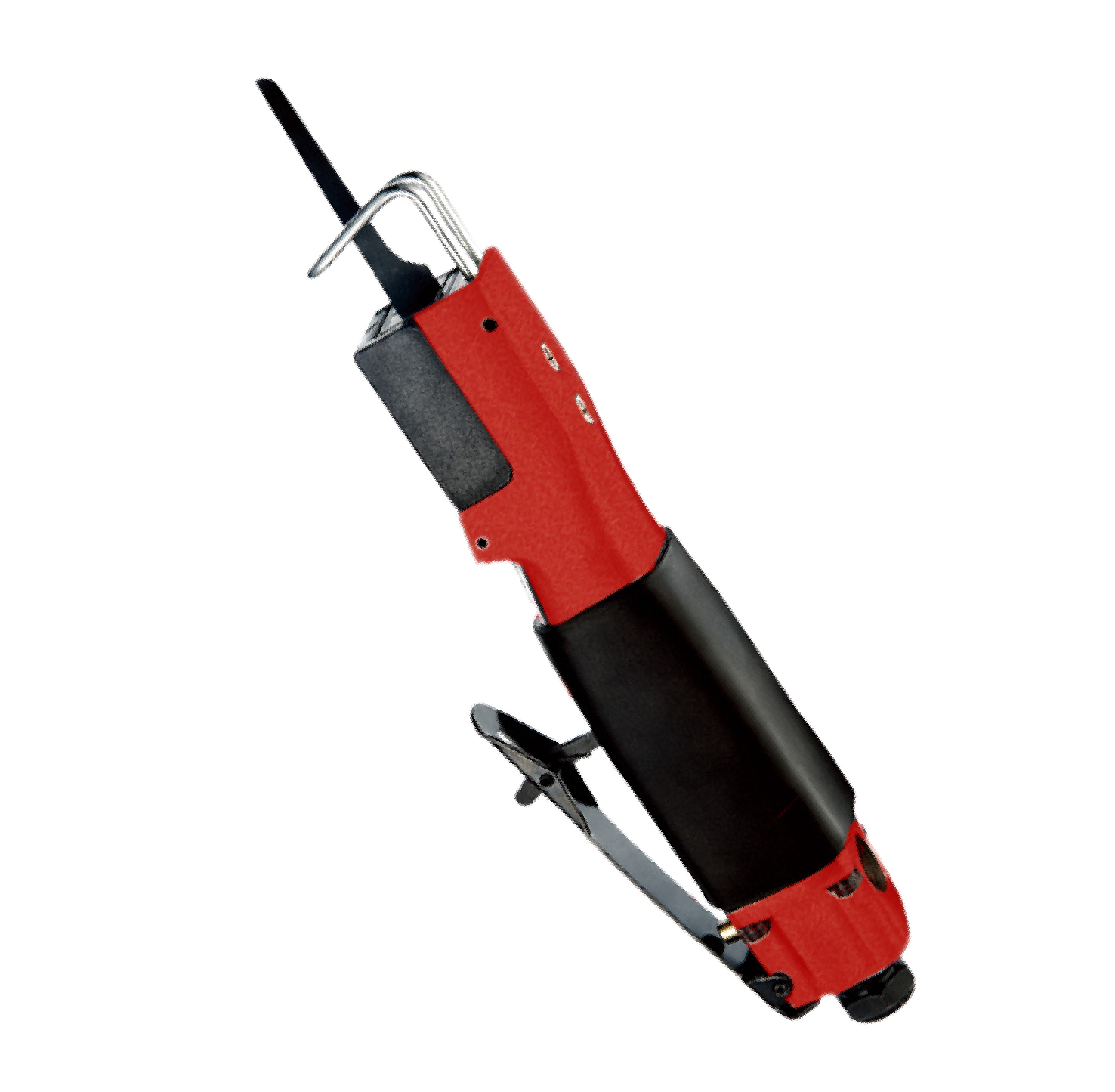

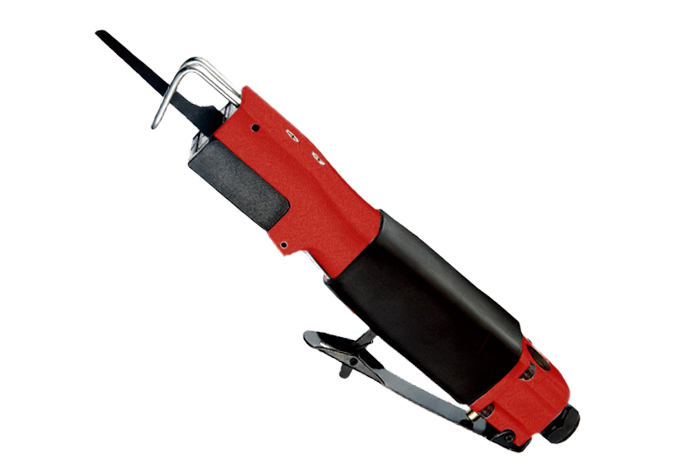

Air Body Saw Overview
The Air Body Saw is a compact pneumatic tool designed for precision cutting and filing in industrial environments. It supports extended operation hours and excels in confined spaces, tight corners, and small areas. This tool operates efficiently as both an air body saw and a chisel filer, making it versatile for factory use.
Technical Specifications
| Specification | Value |
|---|---|
| Strokes Per Minute | 9000 BPM |
| Air Consumption | 1.99 SCFM / 1.4 CFM / 2.37 m³/hr / 0.04 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 9.23 in / 234.9 mm |
| Weight | 0.6 kg / 1.32 lb |
| Noise Level | 91 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.25 HP |
| Power | 0.19 kW |
| Stroke Span | 0.3 in / 7.9 mm |
| Item No. | 11410 |
|---|---|
| Strokes Per Minute | 9000 |
| Air Consumption / SCFM | 1.99 |
| Air Consumption / CFM | 1.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.23 |
| Overall Length / mm | 234.9 |
| Weight / lb | 1.32 |
| Weight / kg | 0.6 |
| Noise / dBA | 91 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.25 |
| kW | 0.19 |
Key Features
- Efficient for extended working hours ensuring durability in factory environments.
- Compact design ideal for operation in small areas, tight corners, and confined spaces.
- Dual functionality allowing use as an air body saw and chisel filer.
Applications
Industrial Applications
Designed for precision cutting and filing tasks in industrial manufacturing and maintenance, the Air Body Saw is suitable for use in confined spaces where larger tools cannot operate effectively. It supports various factory operations requiring compact power and reliable pneumatic performance.
