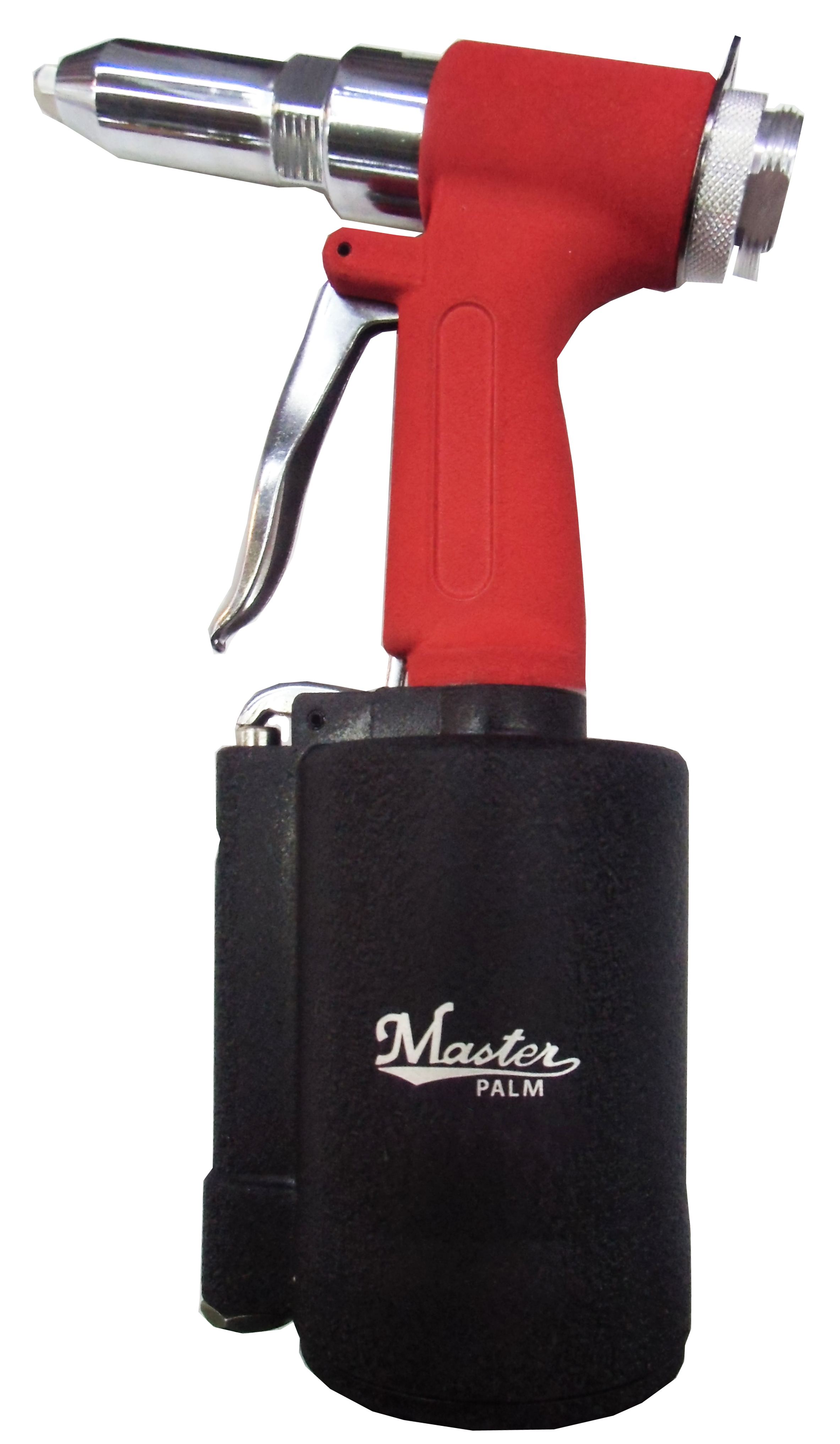

1/4" Riveter Overview
The 1/4" Riveter by Master Air Tool Co., Ltd. is a precision-engineered pneumatic tool designed for compact power and durability in factory environments. It features a quick-release air valve that accelerates cylinder return, preventing overload and extending the tool's service life. Its ergonomic design reduces operator fatigue, making it suitable for prolonged use in various industrial settings.
Technical Specifications
| Specification | Value |
|---|---|
| Air Consumption | 32 SCFM / 24.85816 m³/hr / 11.78112 m³/min |
| Air Pressure | 85 PSIA / 5.97635 kg/cm² / 5.86075 bar / 586.075 kPa |
| Weight | 1.78 kg / 3.916 lb |
| Air Hose Size | 3/8 in / 9.525 mm |
| Stroke Span | 0.71 in / 18.034 mm |
| Item No. | 11610 |
|---|---|
| Air Consumption / SCFM | 32 |
| Air Consumption / CFM | 24.8581632 |
| Air Pressure / PSI | 85 |
| Air Pressure / Bar | 5.86075 |
| Weight / lb | 3.916 |
| Weight / kg | 1.78 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
Key Features
- Powerful pneumatic drive ensures higher speed operation and long service life.
- Quick-release air valve accelerates cylinder return to prevent overloading.
- Durable construction designed for extended industrial use.
Applications
Applications
- Operates efficiently at any angle and in confined spaces.
- Ergonomic design reduces physical fatigue during extended use.
- Ideal for factory and industrial assembly requiring reliable rivet fastening.
