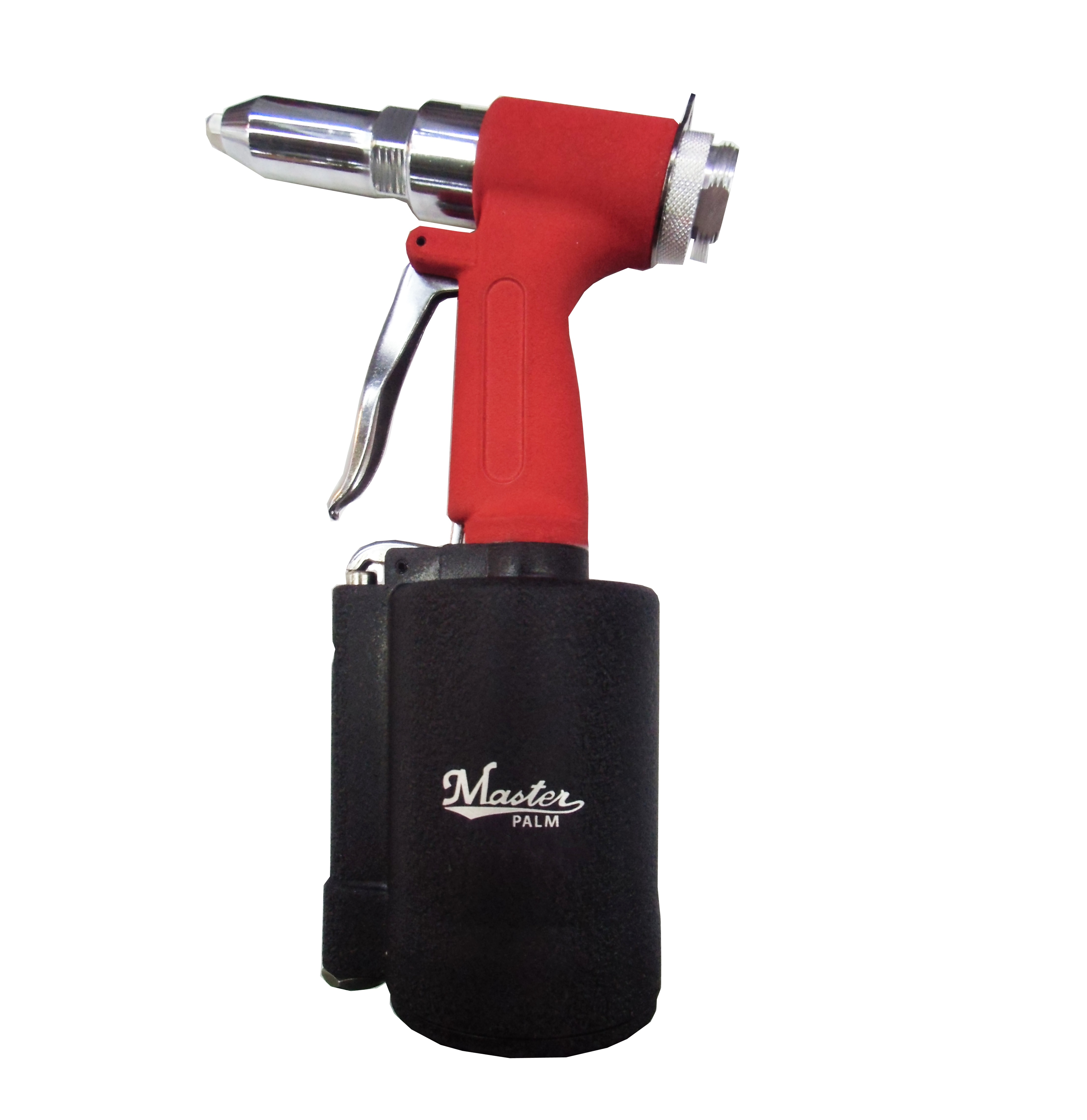

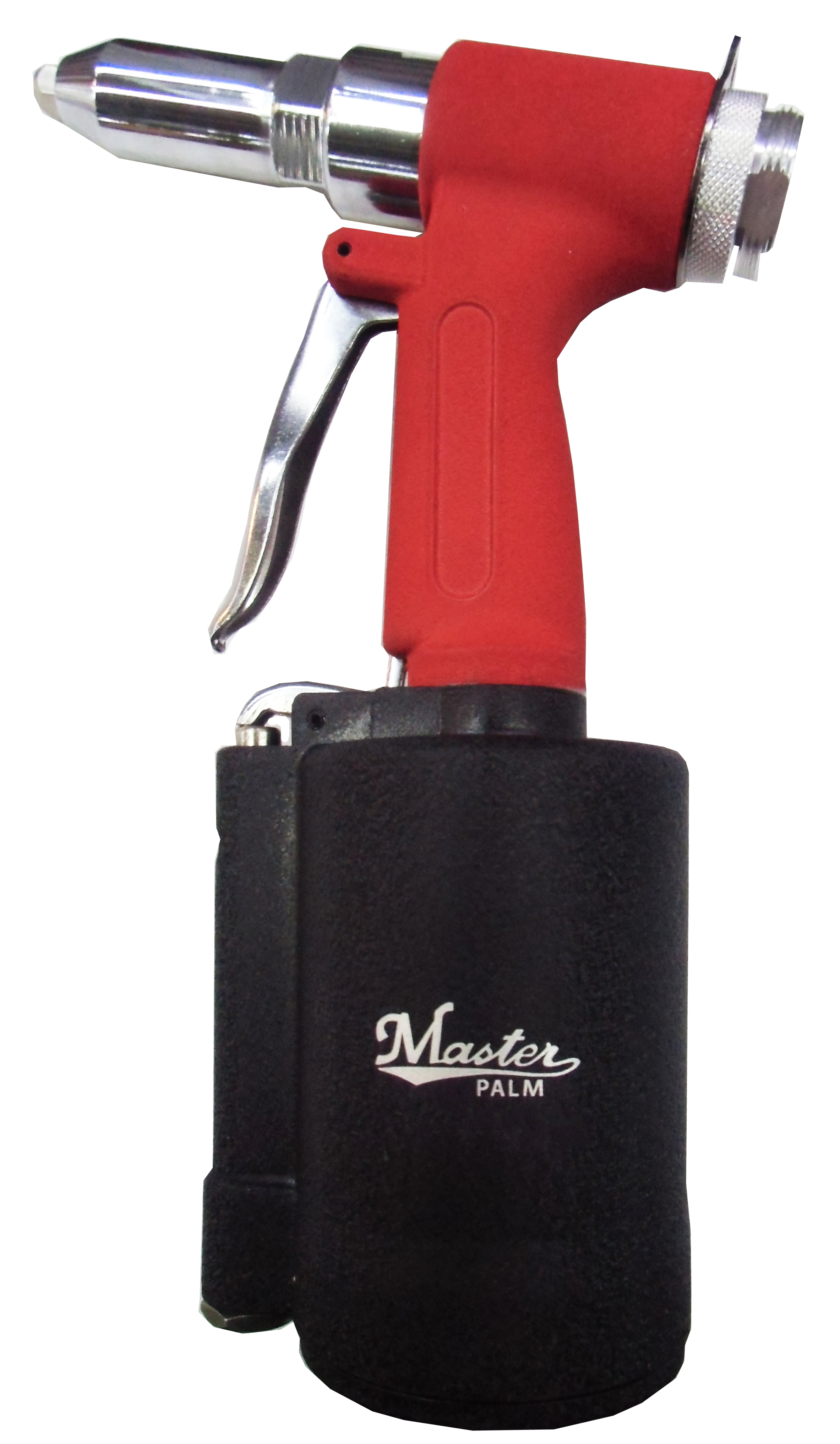

3/16" Riveter Overview
This pneumatic riveter offers a compact design with an excellent power-to-weight ratio, making it ideal for factory use. It features a noise-reducing muffler and wear-resistant surfaces to extend tool life. The tool supports a long stroke for powerful riveting performance.
| Specification | Value |
|---|---|
| Air Consumption | 20 SCFM / 15.536352 CFM / 441.792 m³/hr / 7.3632 m³/min |
| Air Pressure | 6.67945 kg/cm² / 95 PSIA / 6.55025 bar / 655.025 kPa |
| Weight | 1.4 kg / 3.08 lb |
| Air Hose Size | 3/8 in / 9.525 mm |
| Stroke Span | 0.71 in / 18.034 mm |
| Item No. | 11600 |
|---|---|
| Air Consumption / SCFM | 20 |
| Air Consumption / CFM | 15.536352 |
| Air Pressure / PSI | 95 |
| Air Pressure / Bar | 6.55025 |
| Weight / lb | 3.08 |
| Weight / kg | 1.4 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
Key Features
- Compact design with excellent power-to-weight ratio
- Easy nose piece replacement for efficient maintenance
Applications
Applications
- Equipped with noise-reducing muffler for quieter operation
- Wear-resistant surfaces extend tool life in industrial environments
- Long stroke and powerful performance suitable for factory use
