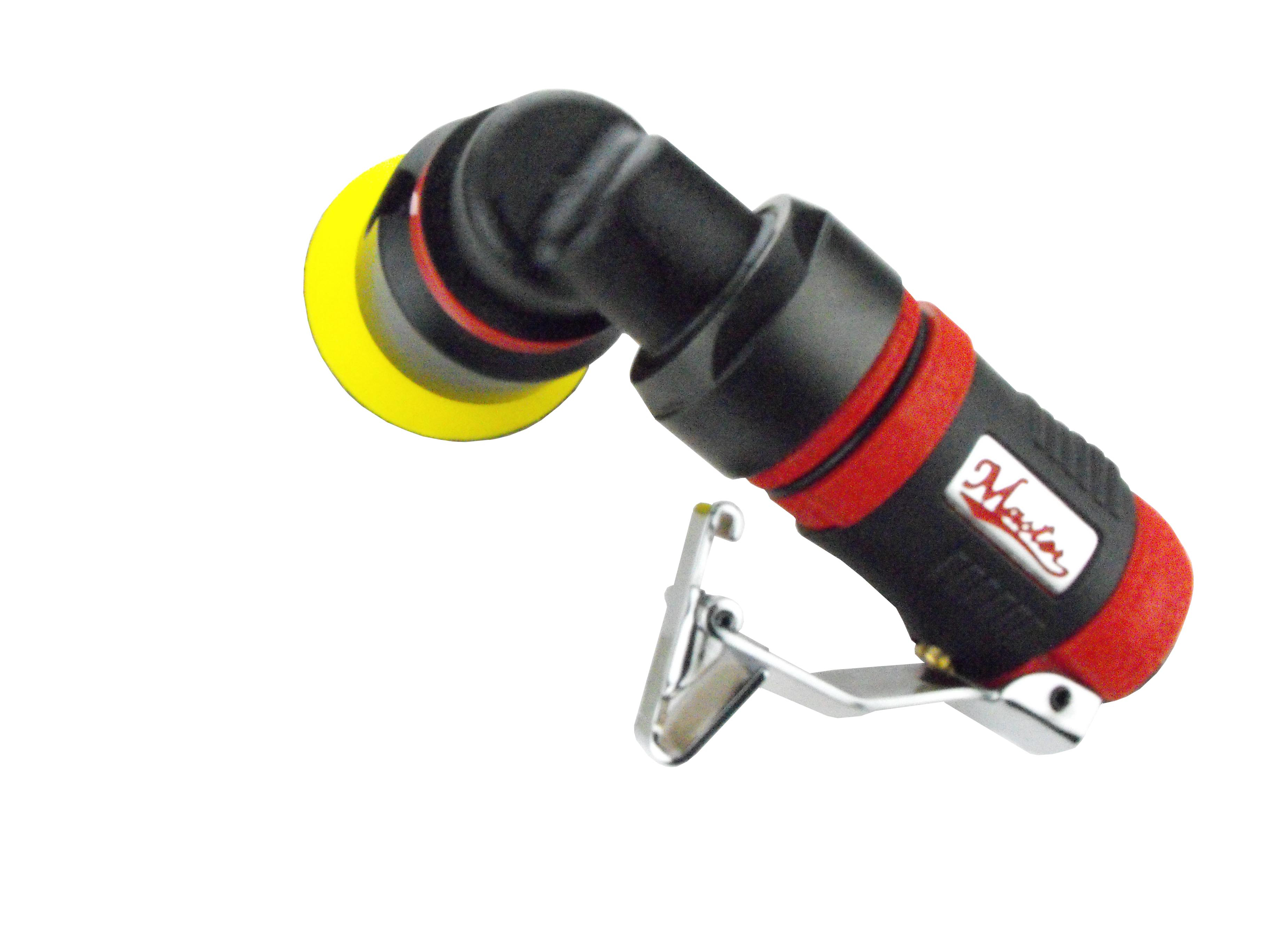

2" Right Angle Orbital Sander Overview
This compact orbital sander features a low profile angle height design of 24 mm, enabling access to corner areas where other tools cannot reach. It operates at a free speed of 16,500 rpm, providing consistent orbital motion through simultaneous spinning and elliptical movement of the sanding disk. The tool supports both sticker and Velcro sanding pads, allowing versatility in abrasive attachment.
Designed for durability and factory use, this sander includes an optional muffler (MSA-005A) to reduce noise levels, measured at 81 dBA. The rear exhaust design enhances operator comfort during extended use.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 16,500 RPM |
| Air Consumption | 13 SCFM / 0.37 m³/min |
| Air Pressure | 80 PSIA / 5.5 bar |
| Disc/Wheel Size | 2" (50.8 mm) with M6 thread |
| Orbital Size | 3 mm |
| Weight | 0.34 kg (0.75 lb) |
| Overall Length | 109 mm (4.29 in) |
| Noise Level | 81 dBA |
| Exhaust | Rear |
| Item No. | 58020 |
|---|---|
| Free Speed / RPM | 16500 |
| Air Consumption / SCFM | 13 |
| Air Consumption / CFM | 2.015 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.516 |
| Angle Height / inch | 0.94488189 |
| Angle Height / mm | 24 |
| Overall Length / inch | 4.291338583 |
| Overall Length / mm | 109 |
| Weight / lb | 0.748 |
| Weight / kg | 0.34 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.25 |
| kW | 0.1875 |
| Disc Size / inch | 2xM6 |
| Disc Size / mm | 50.8XM6 |
Key Features
- Low profile angle height of 24 mm for access to tight corner areas
- High free speed of 16,500 rpm for efficient sanding
- Choice of sticker or Velcro sanding pads for versatile abrasive attachment
- Optional muffler (MSA-005A) available to reduce noise
- Rear exhaust design for operator comfort
- Compact and lightweight at 0.34 kg for ease of handling
Applications
Industrial Applications
The 2" Right Angle Orbital Sander is engineered for precision sanding and polishing in confined or hard-to-reach areas, especially corners. Its random orbit motion ensures even abrasion without repetitive wear on the sanding surface. Compatible sanding pads include various grit sticker and Velcro types, as well as high-quality wool pads for polishing after painting.
Typical uses include surface preparation, paint removal, and finishing tasks in automotive, metal fabrication, and industrial maintenance environments.
