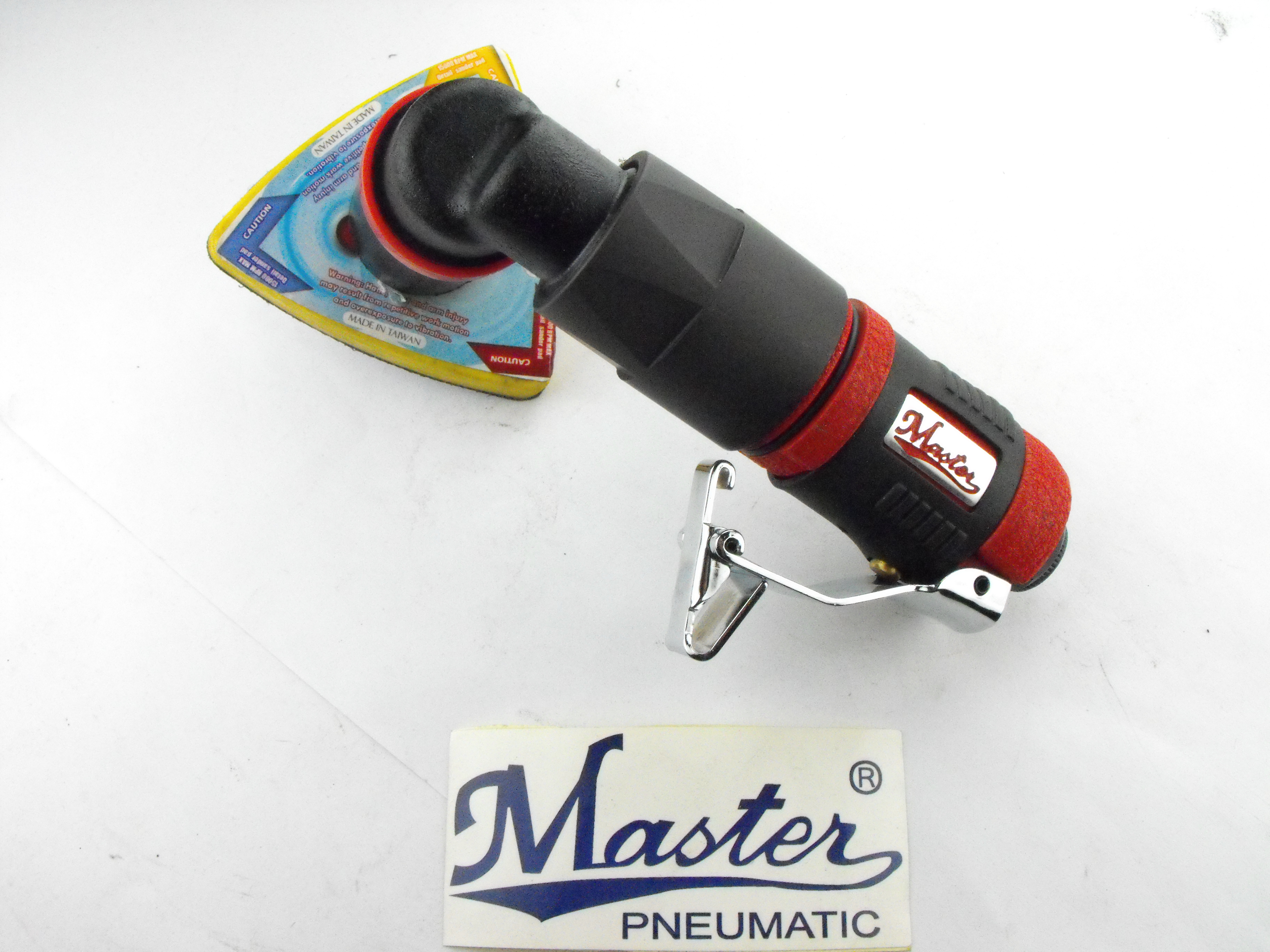

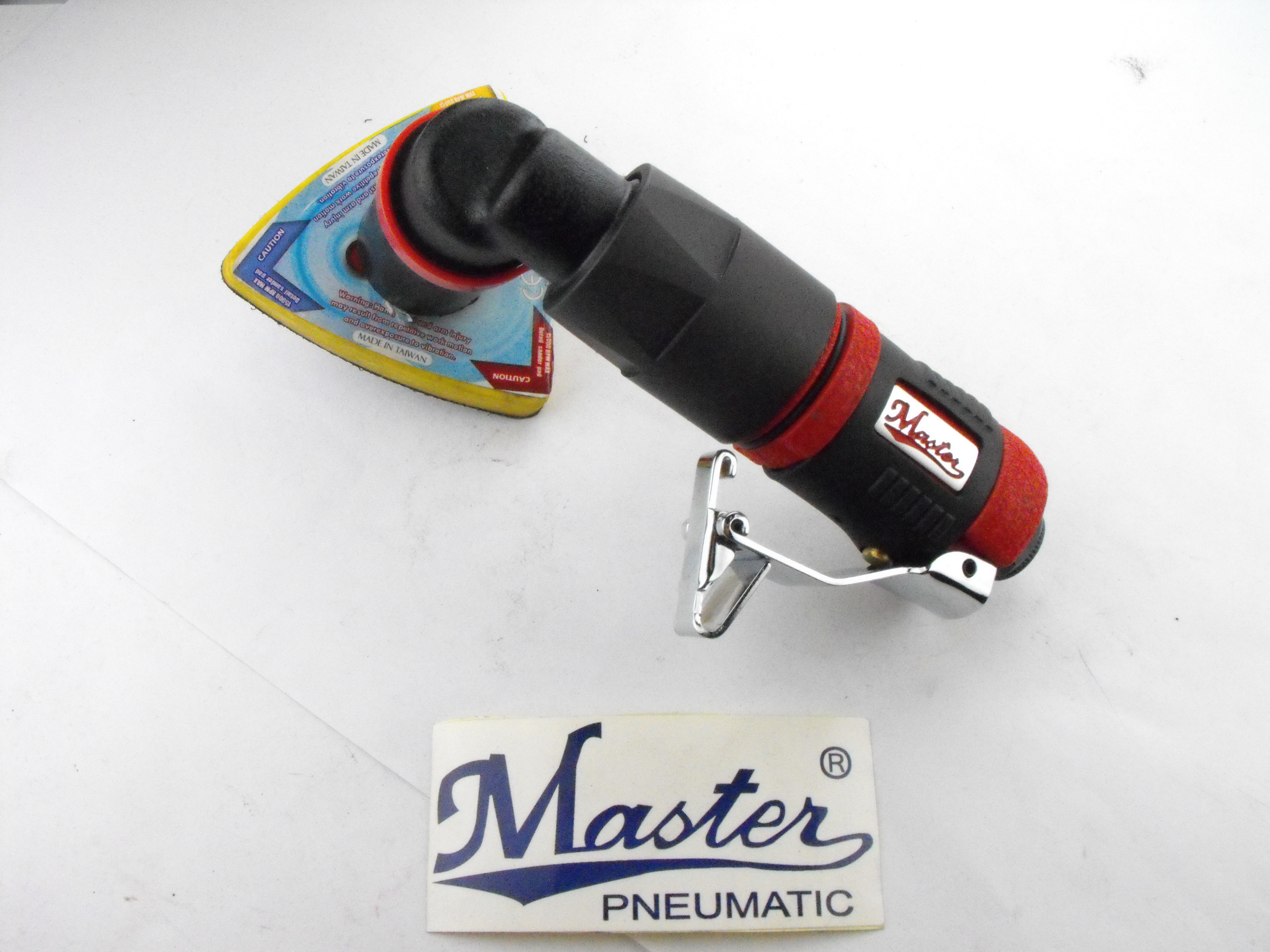

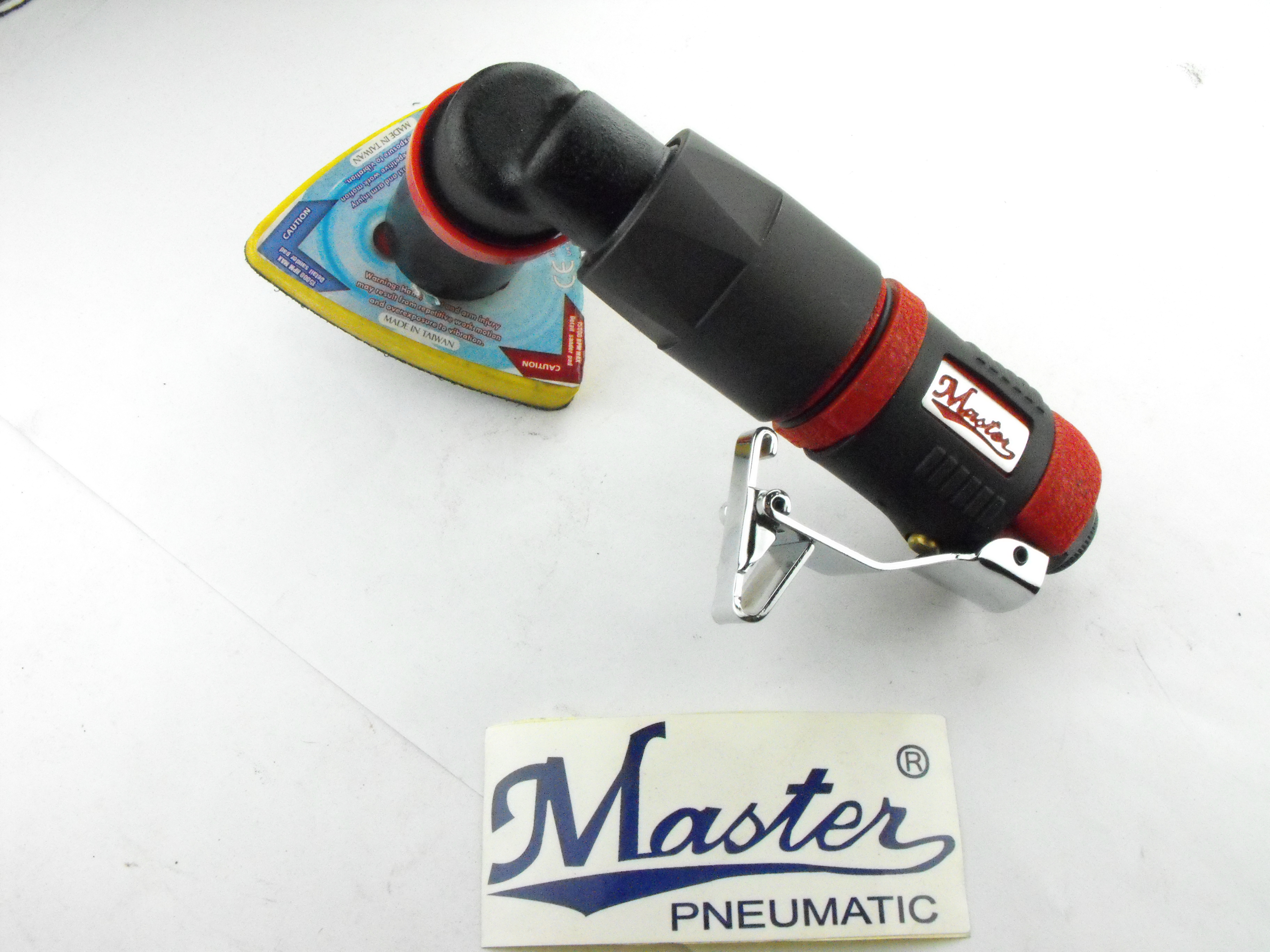

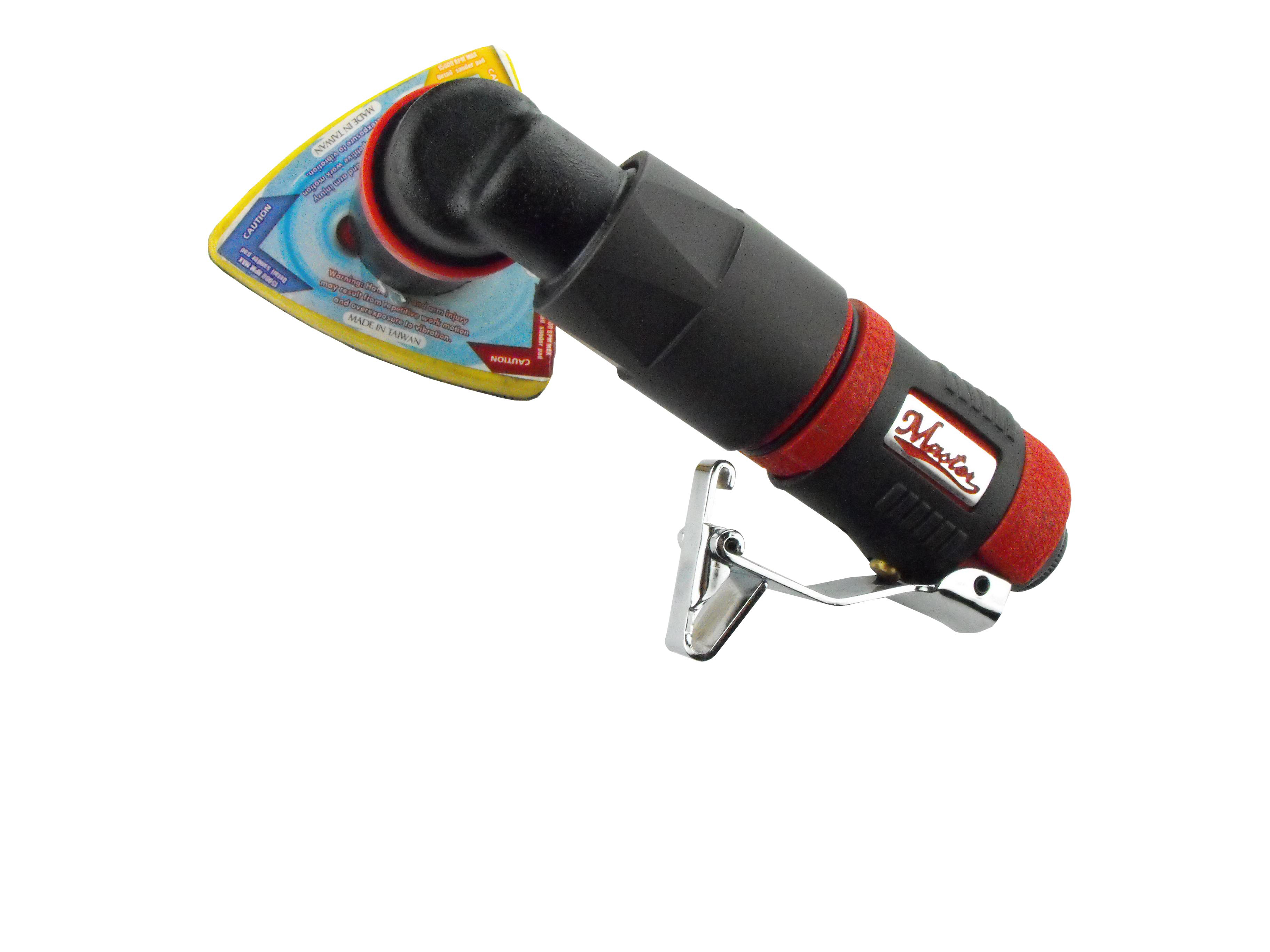

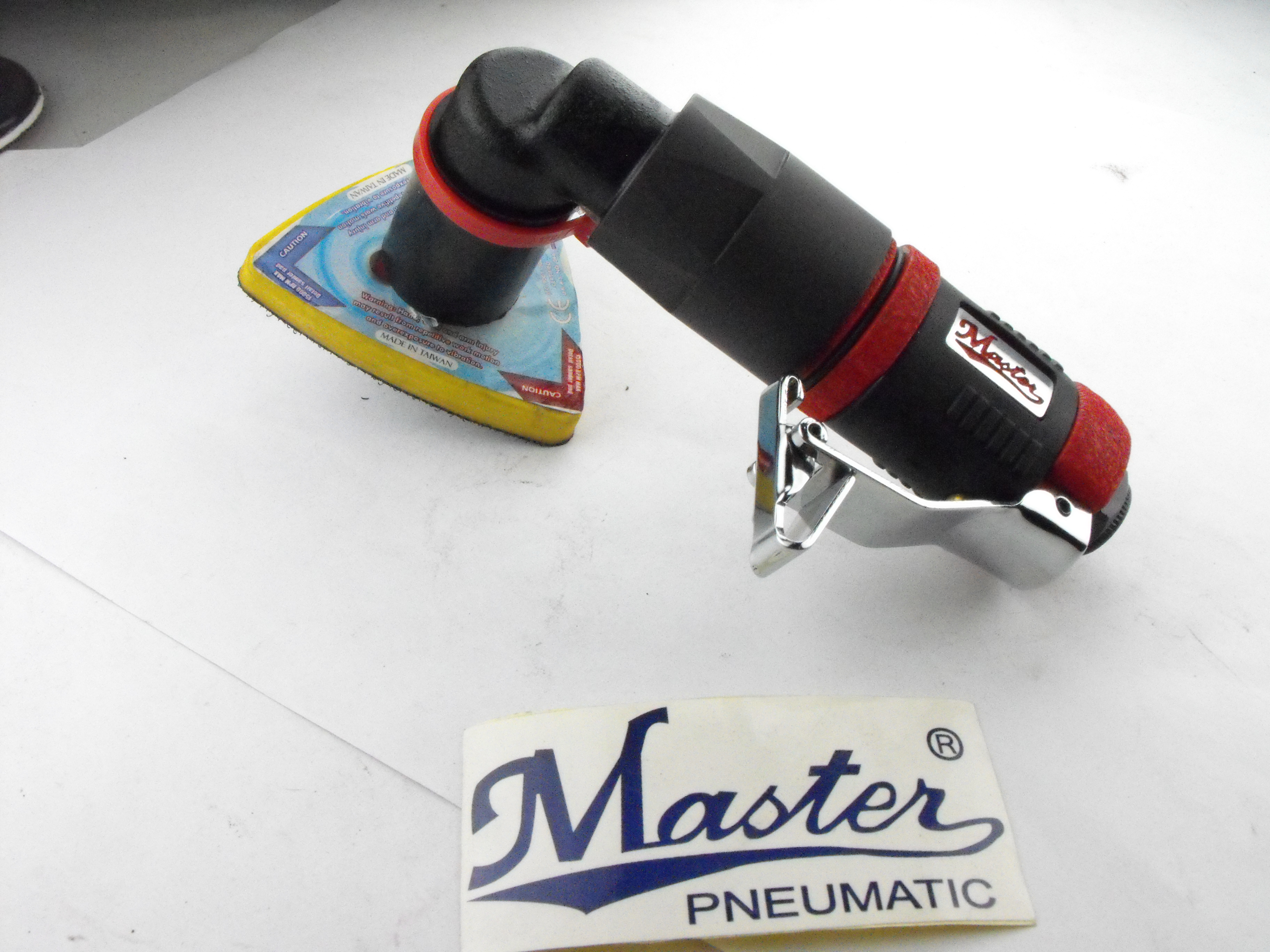

Right Angle Detail Polisher Overview
The Right Angle Detail Polisher is designed for industrial use where precision and compact power are essential. It excels in finishing curved and uneven surfaces on woodcraft, metal, and automotive components. Its pneumatic operation ensures durability and consistent performance in factory environments.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 3800 rpm |
| Air Consumption | 2.015 CFM (57.1648 m³/hr) |
| Air Pressure | 80 PSIA (551.6 kPa) |
| Weight | 0.83 kg (1.826 lb) |
| Disc/Wheel Size | 24.6 x 24.6 x 24.6 x 7.3 mm |
| Orbital Size | 3 mm |
| Exhaust | Rear |
| Noise Level | 81 dBA |
| Item No. | 58060 |
|---|---|
| Free Speed / RPM | 3800 |
| Air Consumption / SCFM | 13 |
| Air Consumption / CFM | 2.015 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.516 |
| Angle Height / inch | 0.94488189 |
| Angle Height / mm | 24 |
| Overall Length / inch | 5.118110236 |
| Overall Length / mm | 130 |
| Weight / lb | 1.826 |
| Weight / kg | 0.83 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.25 |
| kW | 0.1875 |
| Disc Size / inch | L0.97xL0.97xL0.97xH73 |
| Disc Size / mm | L24.6xL24.6xL24.6xH 73 |
Key Features
- Specialized for curve edges and corners sanding where standard sanders cannot reach.
- Effective finish-polishing on curved and uneven woodcraft and metal surfaces.
- Suitable for polishing primary coats on automobiles, high-quality steel plates, and FRP.
- Capable of base metal finishing, outer layer peeling, and rust or blemish removal.
- Compact design with a free speed of 3800 rpm for precise control.
- Optional muffler MSA-005A available for noise reduction.
Applications
Applications
The Right Angle Detail Polisher is ideal for detailed sanding and polishing tasks in industrial settings. It supports accessory kits such as the 58069 Detail Polisher Kit Set and the 58079 Finger Sander Kit Set, enabling versatile use across woodcraft, metal finishing, and automotive surface preparation.
