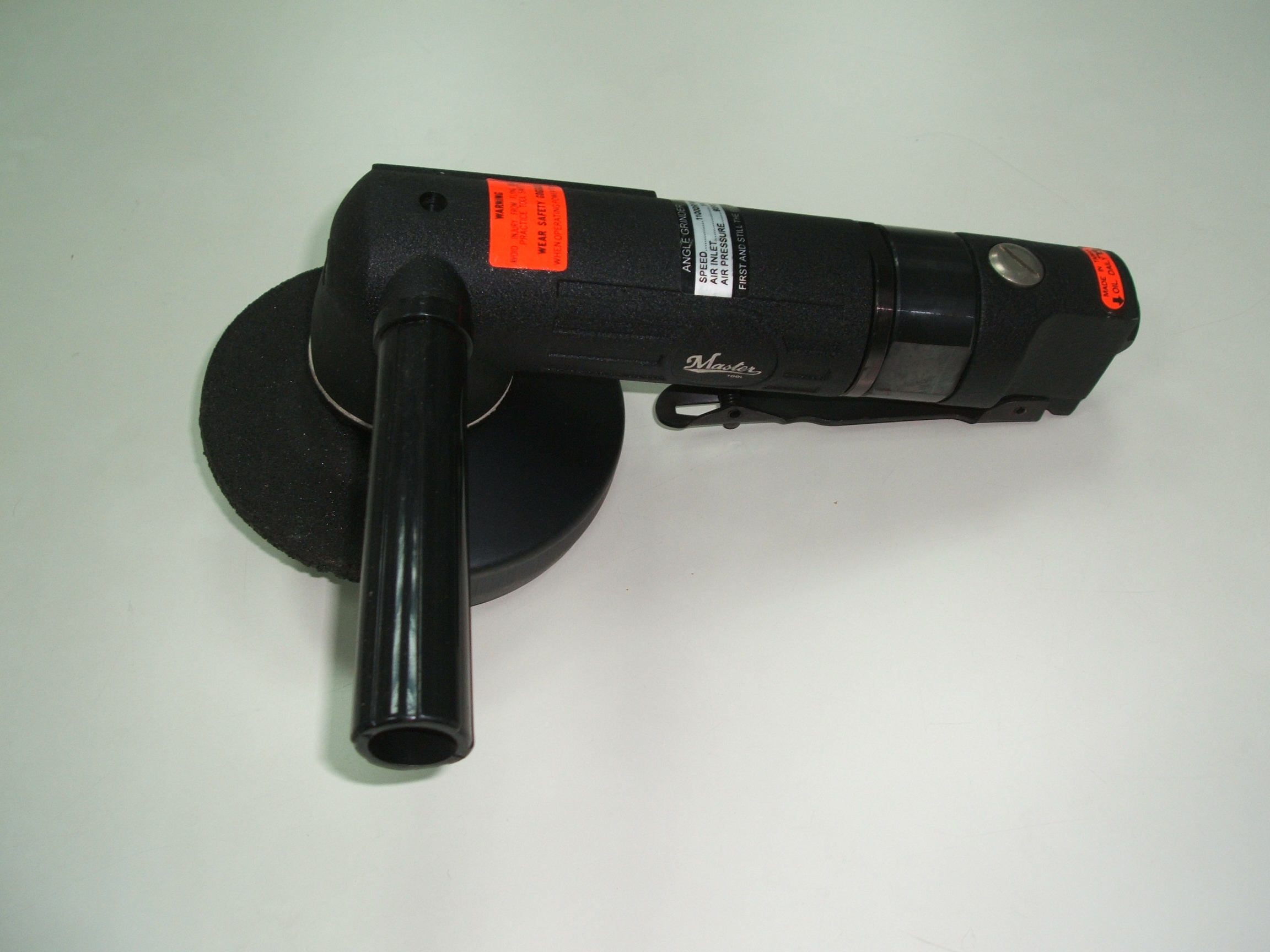

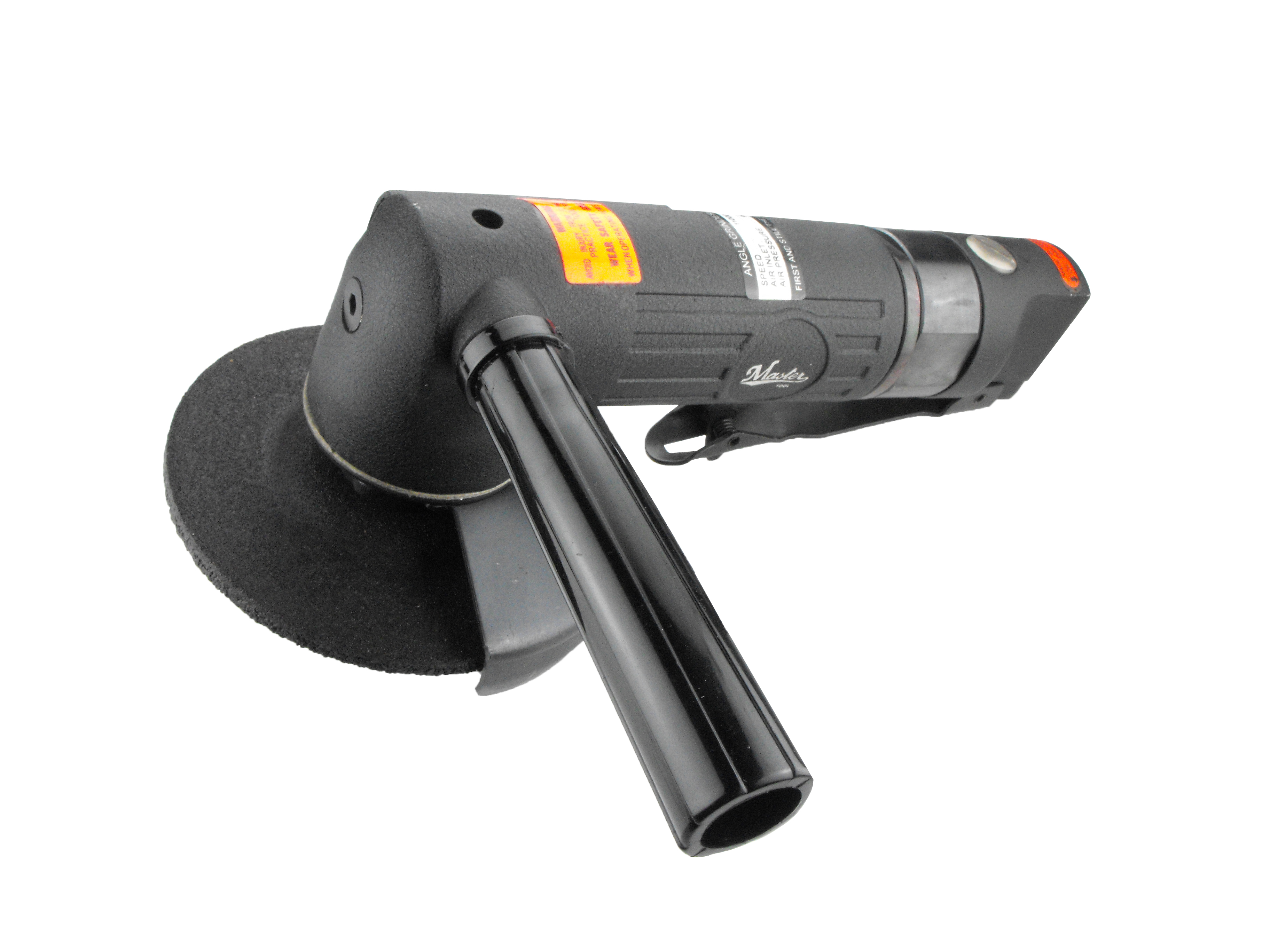

4.5" Right Angle Grinder Overview
The 4.5" Right Angle Grinder is designed for heavy-duty industrial applications, featuring a front exhaust system that directs airflow away from the operator. Its compact form factor and side handle provide superior control and durability for factory use. Grinding wheels are sold separately, allowing customization based on task requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 11000 rpm |
| Air Consumption | 22 SCFM / 3.091 CFM / 485.97 L/min |
| Air Pressure | 90 PSIA / 6.2055 bar |
| Disc/Wheel Size | 4.5 in / 115 mm |
| Weight | 1.9 kg / 4.18 lb |
| Exhaust | Front |
| Noise Level | 92 dBA |
| Horsepower | 1 HP / 0.75 kW |
| Item No. | 31450 |
|---|---|
| Free Speed / RPM | 11000 |
| Air Consumption / SCFM | 22 |
| Air Consumption / CFM | 3.091 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Angle Height / inch | 2.409448819 |
| Angle Height / mm | 61.2 |
| Overall Length / inch | 9.133858268 |
| Overall Length / mm | 232 |
| Weight / lb | 4.18 |
| Weight / kg | 1.9 |
| Exhaust | Front |
| Noise / dBA | 92 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 1 |
| kW | 0.75 |
| Disc Size / inch | 4.5 |
| Disc Size / mm | 115 |
Key Features
- Industrial series side handle design for enhanced grip and operational strength.
- 4.5" grinding wheel compatibility; wheels sold separately for task-specific use.
- Front exhaust system directs airflow away from the operator for improved comfort.
- High free speed of 11,000 rpm ensures efficient grinding performance.
- Durable construction suitable for rigorous factory environments.
Applications
Applications
This right angle grinder is ideal for industrial grinding tasks requiring compact power and precision. The front exhaust design and optional muffler hose connection reduce noise, making it suitable for factory floor use. The side handle provides additional support for demanding grinding operations.
