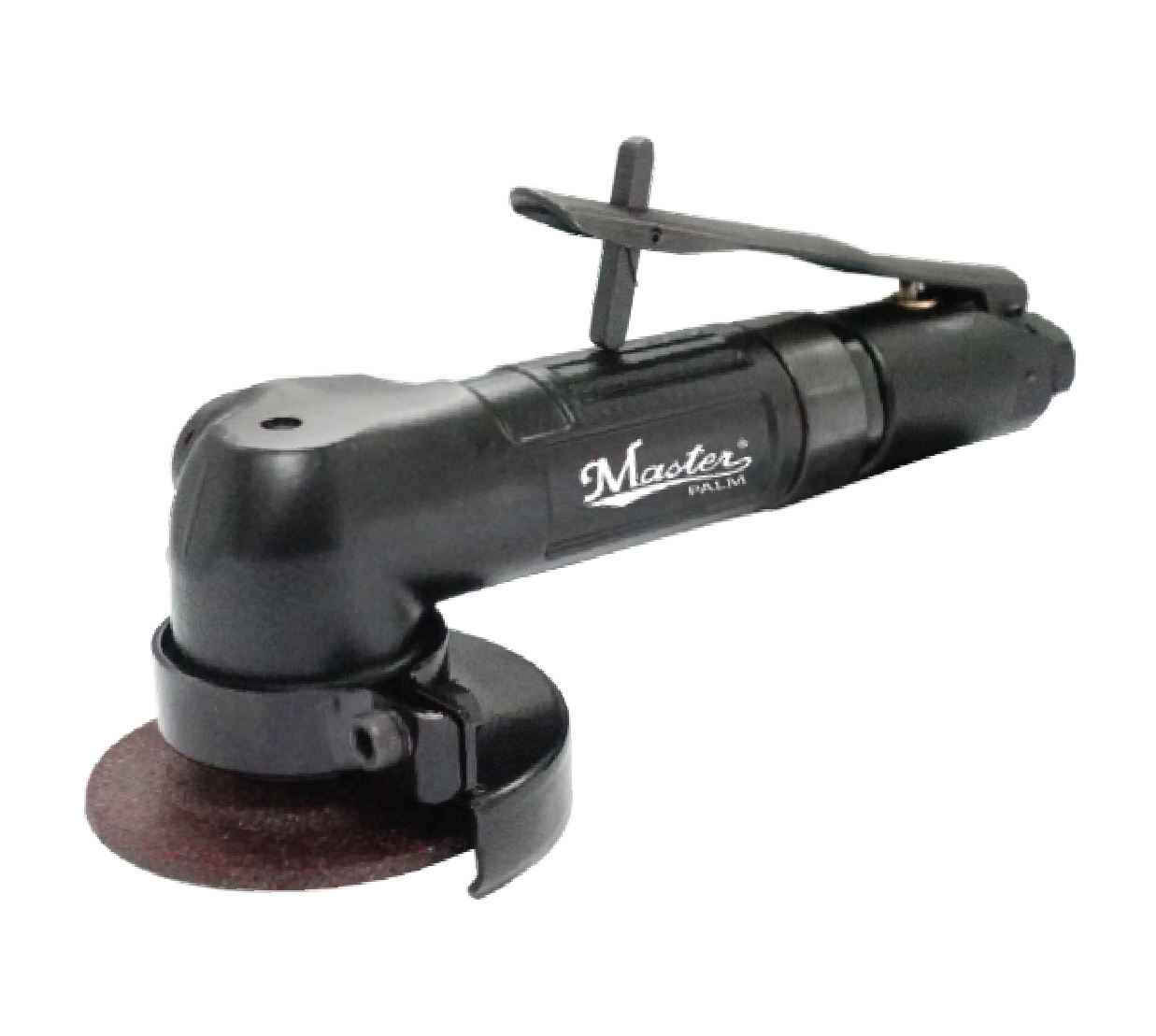

3" Grinder Overview
The 3" Grinder is a compact pneumatic tool designed for precision and durability in industrial settings. It features a powerful motor that exceeds conventional industrial grade right angle grinders, ensuring efficient performance and reliability for factory use. Its ergonomic design minimizes operator fatigue, making it suitable for diverse users.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 15000 RPM |
| Air Consumption | 20.1 SCFM / 14.1 CFM / 0.26 m³/min / 23.94 m³/hr |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 7.09 in / 180 mm |
| Weight | 1.1 kg / 2.43 lb |
| Exhaust | Rear |
| Noise Level | 92 dBA |
| Air Hose Size | 3/8" (9.5 mm) |
| Horsepower | 0.9 HP / 0.68 kW |
| Disc/Wheel Size | 3 in / 75 mm |
| Item No. | 38320 |
|---|---|
| Free Speed / RPM | 15000 |
| Air Consumption / SCFM | 20.1 |
| Air Consumption / CFM | 14.1 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 7.09 |
| Overall Length / mm | 180 |
| Weight / lb | 2.43 |
| Weight / kg | 1.1 |
| Exhaust | Rrar |
| Noise / dBA | 92 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.9 |
| kW | 0.68 |
| Disc Size / inch | 3 |
| Disc Size / mm | 75 |
Key Features
Powerful motor outperforms conventional industrial grade right angle grinders.
Ergonomic design reduces stress on hand and wrist for both female and male users.
Rear exhaust design allows connection of muffler hose for noise reduction.
Throttle control enables precise air flow adjustment and prevents tool auto startup.
Grinding wheel cover enhances safety by preventing abrasive flap splashing hazards.
Applications
Applications
Designed for heavy industrial use, the 3" Grinder is ideal for precision grinding tasks in factory environments requiring durable, compact, and reliable pneumatic tools.
