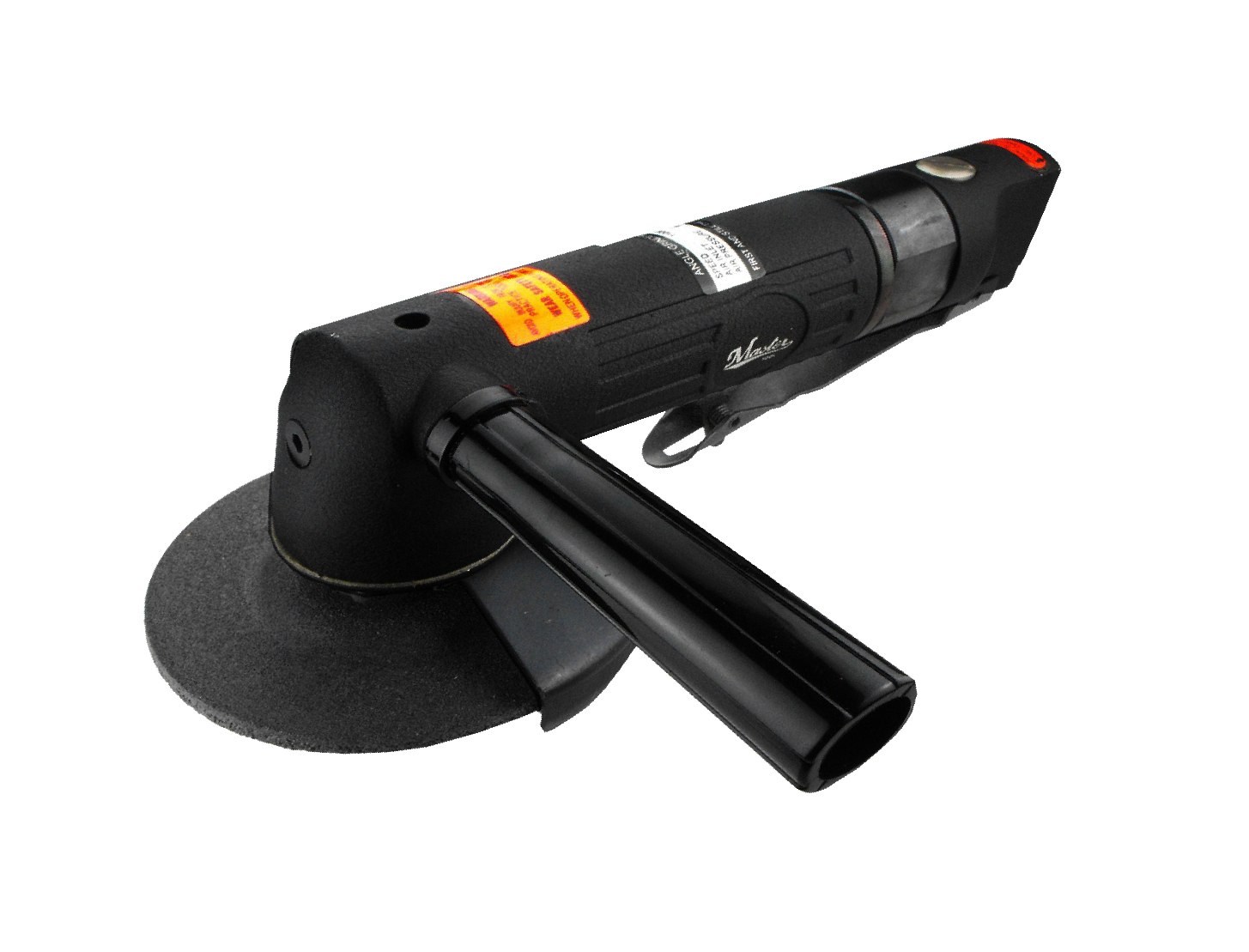

4" Right Angle Grinder Overview
The 4" Right Angle Grinder is engineered for industrial applications requiring compact power and durability. It features a rear speed regulator for precise control and a treated bevel gear that extends tool life. The cylinder undergoes heat treatment and precision grinding to ensure smooth operation and longevity.
Designed with a front exhaust system, it effectively directs dust away during operation. The tool includes reinforced side and grip supports to empower grinding strength and operator control.
| Specification | Value |
|---|---|
| Free Speed | 11000 RPM |
| Air Consumption | 31.3 SCFM / 22 CFM / 37.35 m³/hr / 0.62 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 9.13 in / 232 mm |
| Weight | 1.82 kg / 4.01 lb |
| Exhaust | Front |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 1 HP / 0.75 kW |
| Disc/Wheel Size | 4 in / 101.6 mm |
| Item No. | 31440 |
|---|---|
| Free Speed / RPM | 11000 |
| Air Consumption / SCFM | 31.3 |
| Air Consumption / CFM | 22 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.13 |
| Overall Length / mm | 232 |
| Weight / lb | 4.01 |
| Weight / kg | 1.82 |
| Exhaust | Front |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 1 |
| kW | 0.75 |
| Disc Size / inch | 4 |
| Disc Size / mm | 101.6 |
Key Features
- Rear regulator for precise speed control.
- Durable bevel gear with specialized treatment for extended tool life.
- Heat-treated cylinder with precision grinding for smooth operation.
- Enhanced support via side and grip handles to increase grinding strength.
- Front exhaust system to efficiently remove dust during use.
Applications
Industrial Applications
Designed for factory and heavy industrial environments, the 4" Right Angle Grinder is ideal for grinding, cutting, and finishing tasks requiring compact power and durability. Its ergonomic design and dust management features support continuous operation in demanding settings.
