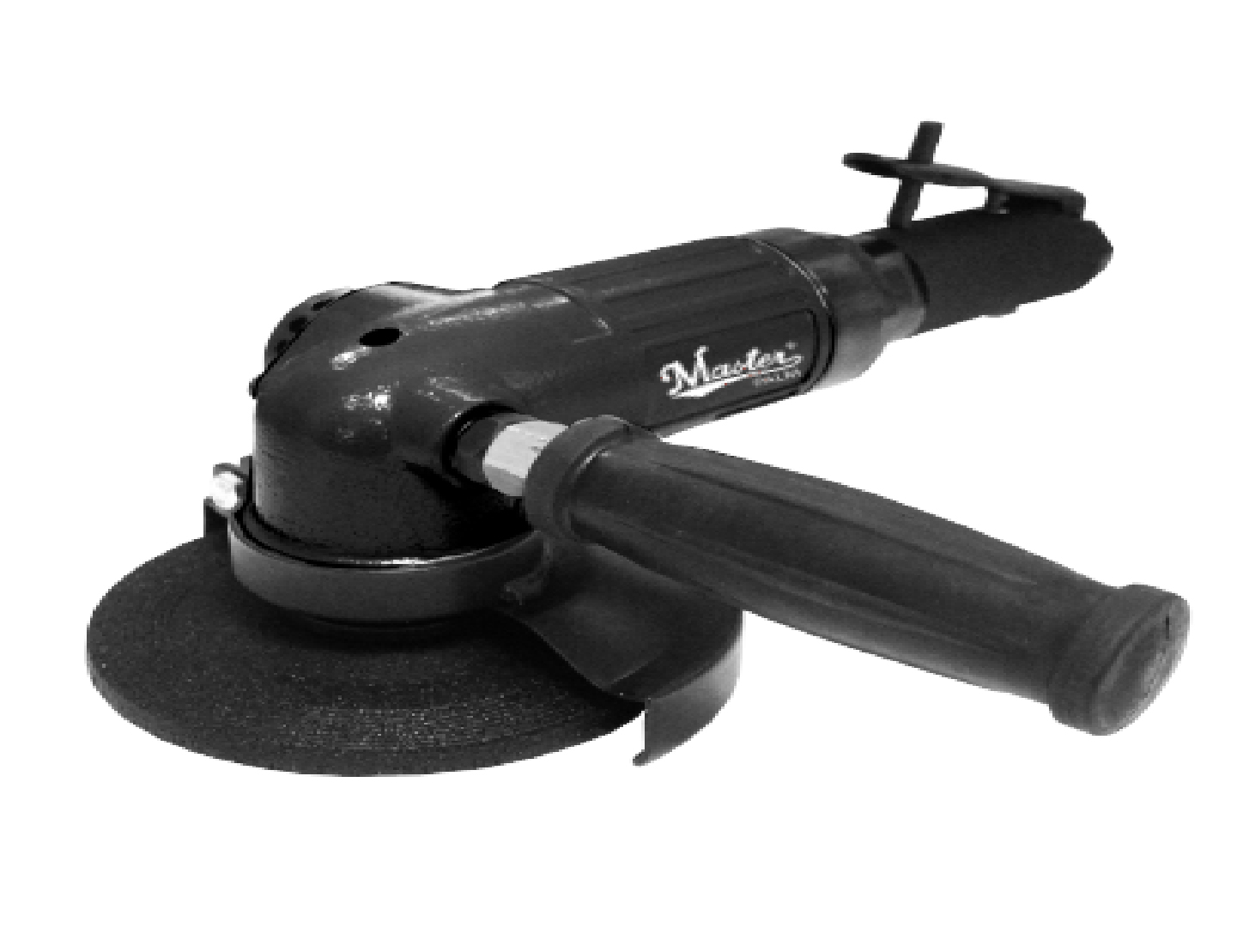

5" Grinder Overview
The 5" Grinder is engineered for precision and durability in industrial settings. Its powerful motor outperforms standard right angle grinders, providing reliable compact power for factory use. Designed with ergonomic considerations, it reduces operator fatigue while maintaining high productivity.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 12000 RPM |
| Air Consumption | 32.6 SCFM / 22.9 CFM / 0.65 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 9.52 in / 242 mm |
| Weight | 2 kg / 4.41 lb |
| Exhaust | Rear |
| Noise Level | 92 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.9 HP / 0.68 kW |
| Disc/Wheel Size | 5 in / 127 mm |
| Item No. | 31560 |
|---|---|
| Free Speed / RPM | 12000 |
| Air Consumption / SCFM | 32.6 |
| Air Consumption / CFM | 22.9 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.52 |
| Overall Length / mm | 242 |
| Weight / lb | 4.41 |
| Weight / kg | 2 |
| Exhaust | Rear |
| Noise / dBA | 92 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.9 |
| kW | 0.68 |
| Disc Size / inch | 5 |
| Disc Size / mm | 127 |
Key Features
- Powerful motor outperforms conventional industrial grade right angle grinders.
- Ergonomic design reduces stress on hand and wrist for both female and male users.
- Rear exhaust design with option to connect muffler hose for noise reduction.
- Throttle control allows precise air flow adjustment and prevents tool auto startup.
- Grinding wheel cover enhances safety by preventing abrasive flap splashing hazards.
Applications
Industrial Applications
The 5" Grinder is ideal for heavy-duty factory environments requiring compact, durable pneumatic tools. It supports precision grinding and finishing tasks where operator comfort and tool reliability are critical. Suitable for use in metal fabrication, maintenance, and assembly lines globally.
