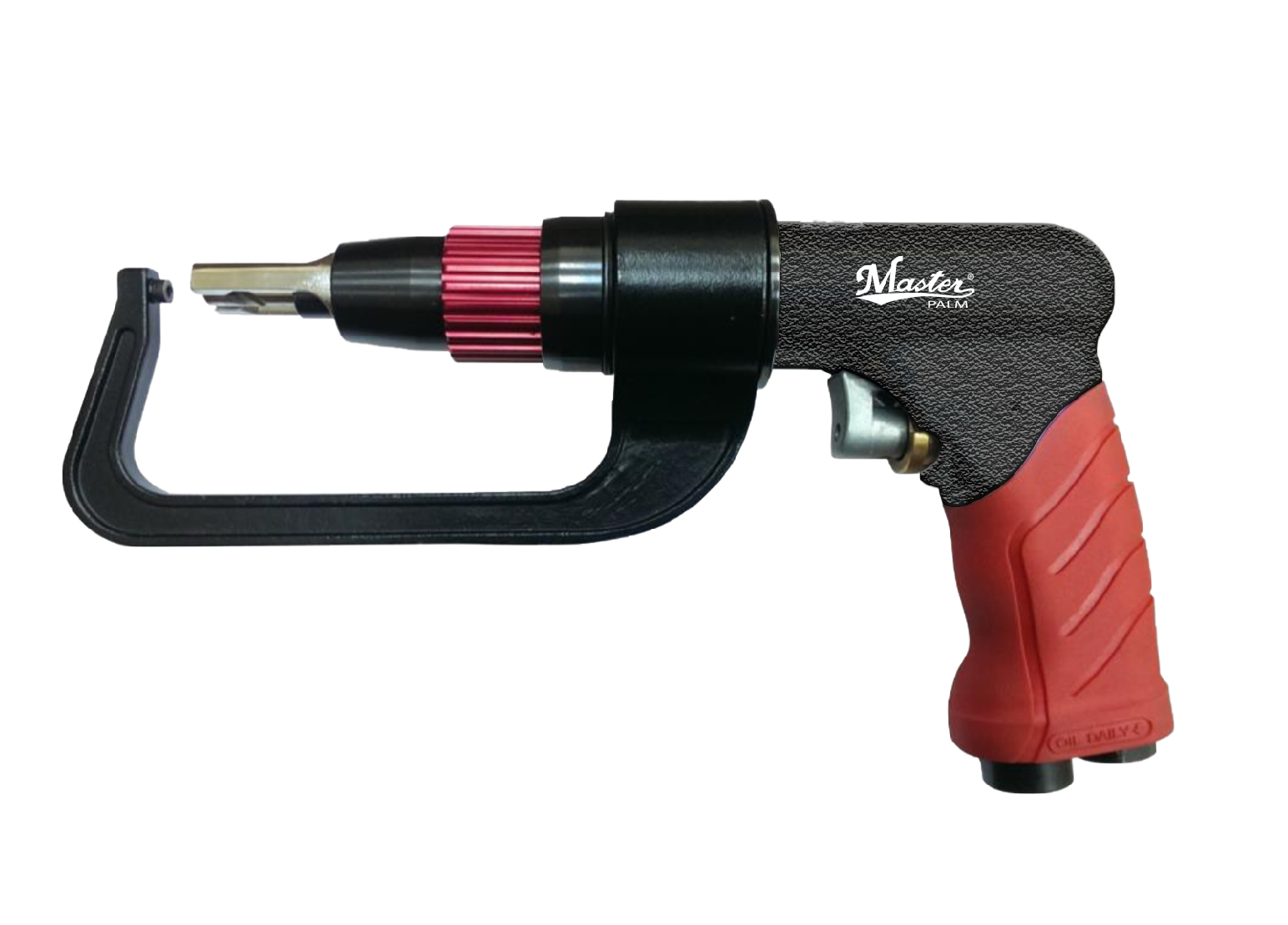

Spot Drill 21700 Overview
The Spot Drill 21700 is designed for precision spot weld drilling in industrial environments. It features a two-position trigger for controlled operation and an adjustable depth-stop to limit drilling depth, protecting the underlying panel. This pneumatic tool delivers reliable performance with a free speed of 1600 RPM and operates at 90 PSIA air pressure.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 1600 RPM |
| Air Consumption | 5 SCFM / 3.5 CFM / 5.9 m³/hr / 0.09 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 11.4 in / 290 mm |
| Weight | 1.4 kg / 3.08 lb |
| Exhaust | Handle |
| Noise Level | 87 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 1.2 HP |
| Power | 0.9 kW |
| Chuck Size | 5/8" |
| Item No. | 21700 |
|---|---|
| Free Speed / RPM | 1600 |
| Air Consumption / SCFM | 5 |
| Air Consumption / CFM | 3.5 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 11.4 |
| Overall Length / mm | 290 |
| Weight / lb | 3.08 |
| Weight / kg | 1.4 |
| Exhaust | Handle |
| Noise / dBA | 87 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 1.2 |
| kW | 0.9 |
| Chuck Size / inch | 5/8" |
Key Features
Drill features two-position trigger: first position sets the anvil, second position starts the drill. Adjustable depth-stop allows you to drill out just the spot weld and not the panel beneath.
Applications
Applications
Designed for factory and industrial use, the Spot Drill 21700 is ideal for precise spot weld removal in automotive, manufacturing, and metal fabrication environments where controlled drilling depth is critical.
