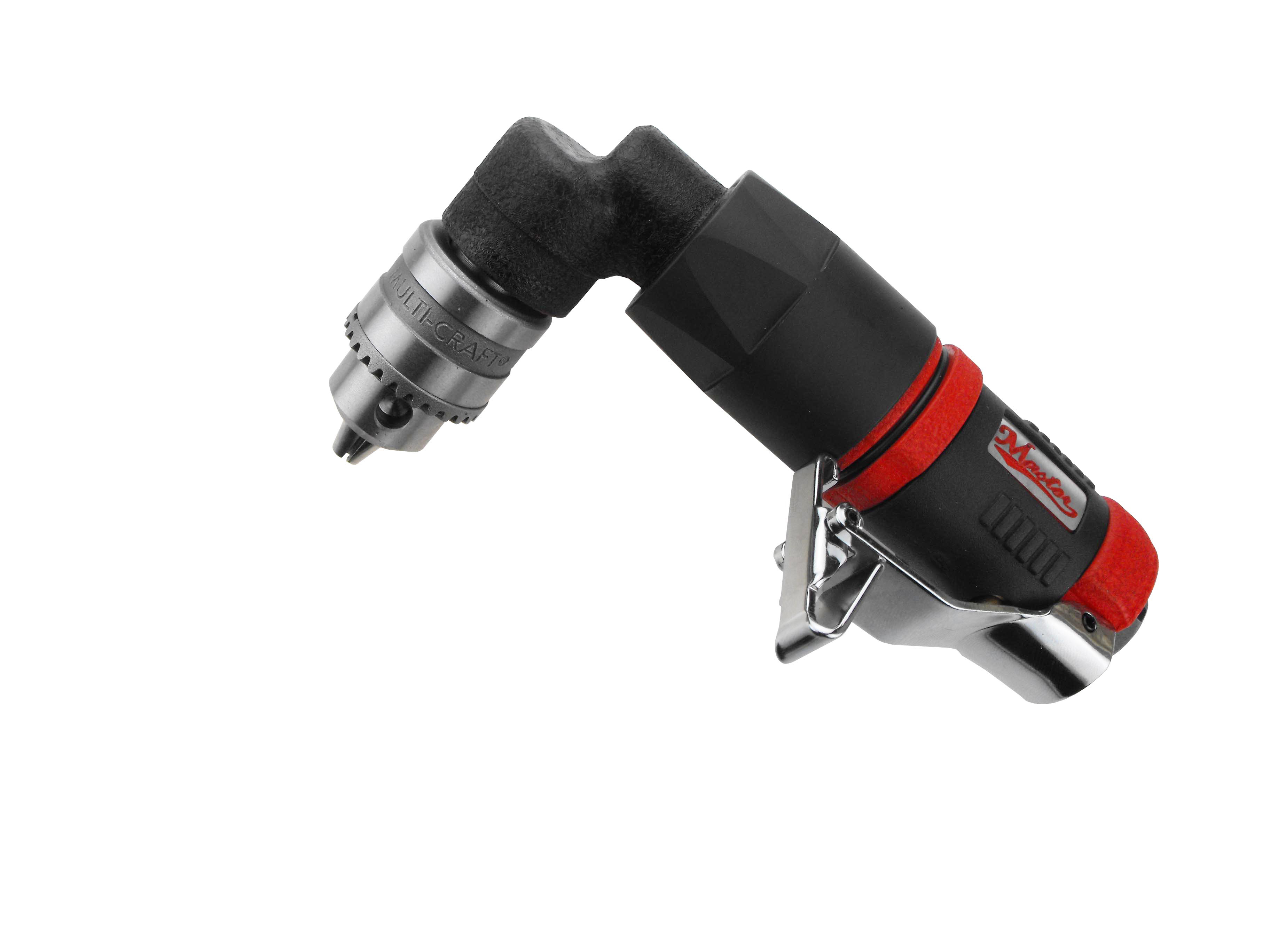

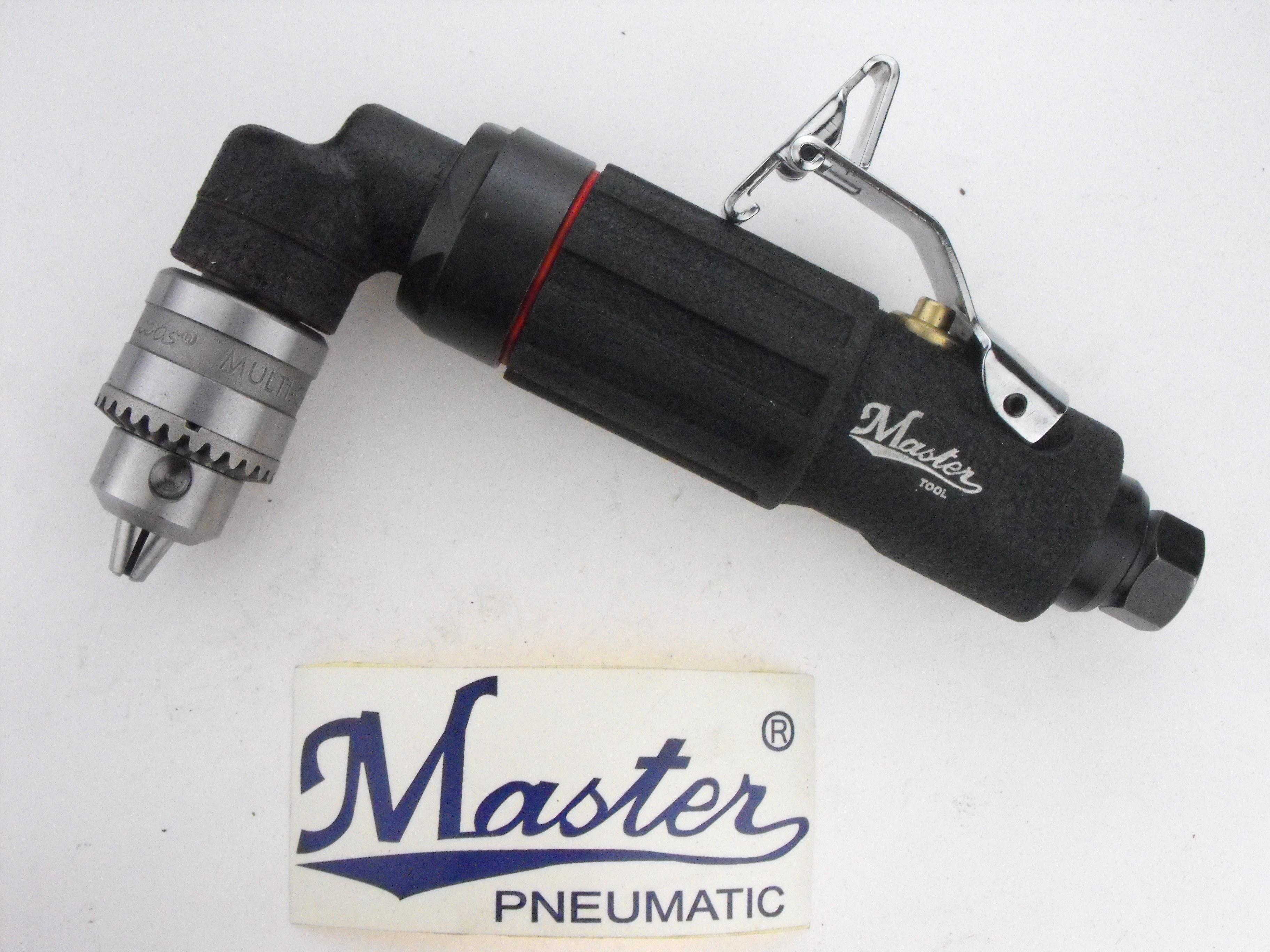

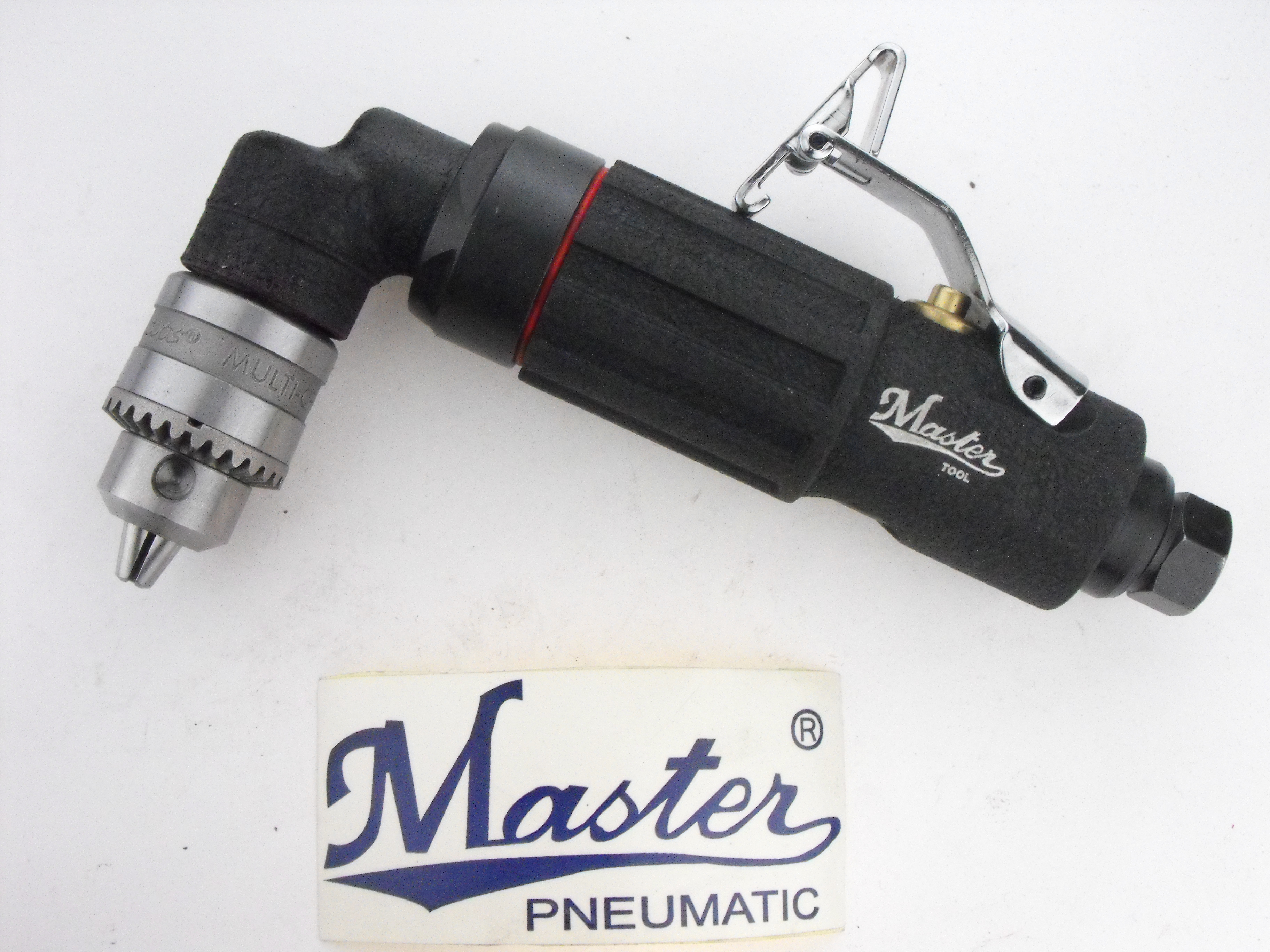

1/4" Right Angle Drill Overview
The 1/4" Right Angle Drill from Master Palm is engineered for durability and compact power in industrial settings. Its low-profile angle design allows users to operate effectively in confined areas, including corners and tight angles, without compromising performance.
Equipped with a quality Jacob chuck and safety throttle control, this drill ensures precise speed manipulation and enhanced user safety. Its lightweight construction supports extended use with reduced fatigue.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 4500 RPM |
| Air Consumption | 14 SCFM / 1.967 CFM / 309.2544 m³/hr / 5.15424 m³/min |
| Air Pressure | 90 PSIA / 6.3279 kg/cm² / 6.2055 bar / 620.55 kPa |
| Angle Height | 24 mm / 0.94488189 in |
| Overall Length | 146 mm / 5.748031496 in |
| Weight | 1.496 lb / 0.68 kg |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 1/4 in / 6.4 mm |
| Horsepower | 0.3 HP / 0.225 kW |
| Chuck Size | 1/4 in / 6.5 mm |
| Spindle Thread | 3/8-24T |
| Item No. | 28310 |
|---|---|
| Free Speed / RPM | 4500 |
| Air Consumption / SCFM | 14 |
| Air Consumption / CFM | 1.967 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Angle Height / inch | 0.94488189 |
| Angle Height / mm | 24 |
| Overall Length / inch | 5.748031496 |
| Overall Length / mm | 146 |
| Weight / lb | 1.496 |
| Weight / kg | 0.68 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 1/4 |
| Air Hose Size / mm | 6.4 |
| Horsepower | 0.3 |
| kW | 0.225 |
| Chuck Size / inch | 1/4 |
| Chuck Size / mm | 6.5 |
| Spindle Thread | 3/8-24T |
Key Features
- Low profile angle design enables operation in confined areas and tight corners.
- Quality Jacob chuck ensures secure bit holding and durability.
- Lightweight construction reduces user fatigue during extended use.
- Safety throttle control allows precise speed manipulation for controlled operation.
Applications
Applications
The 1/4" Right Angle Drill is designed for industrial use where space constraints require a compact tool. Its low-profile design and strength empower users to complete tasks efficiently in confined areas, making it suitable for assembly, maintenance, and fabrication work in factory environments.
