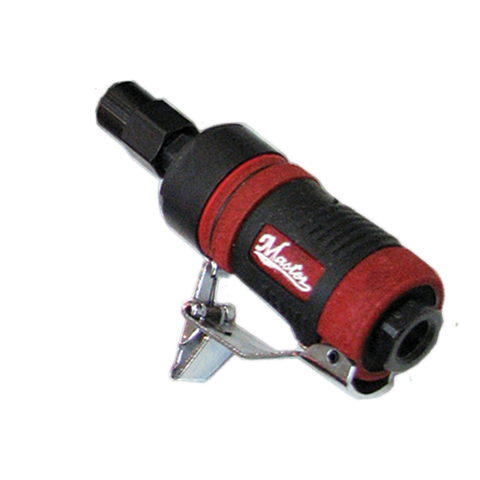

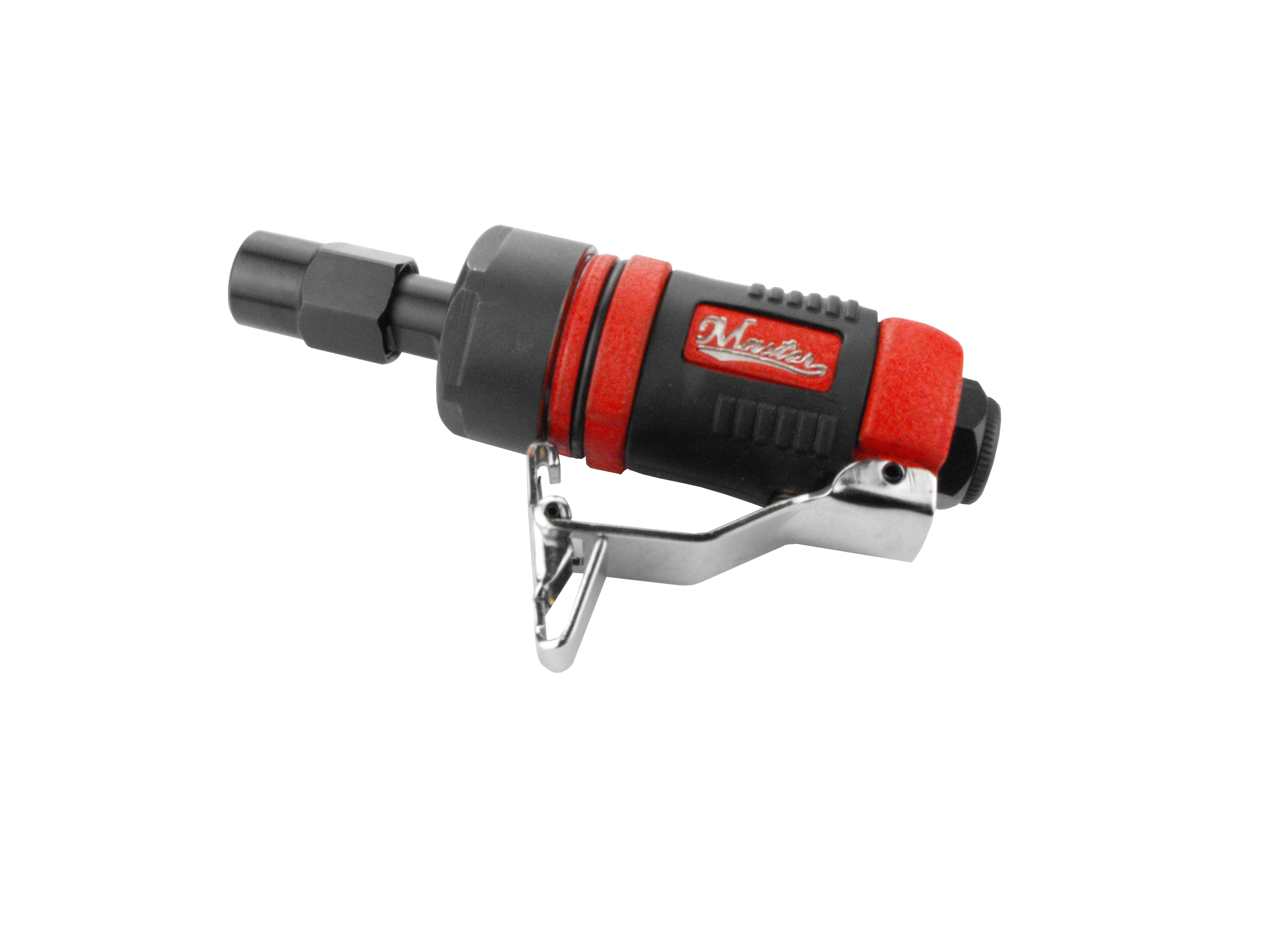

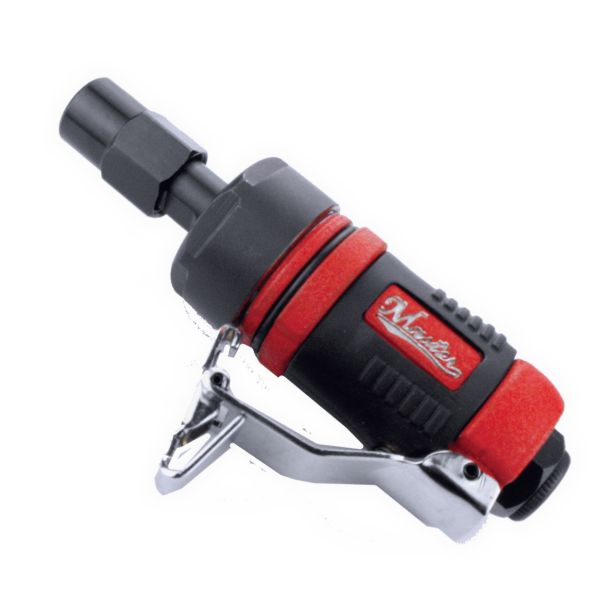

Straight Die Grinder Overview
The Straight Die Grinder, part of the Palm Mini series, is engineered for compact power and precision in industrial applications. It supports a variety of abrasive accessories to efficiently shape, grind, etch, and de-burr hard metals, glass, tile, and masonry. Designed for factory use, it offers durability and reliable performance in demanding environments.
| Item No. | 31020 |
|---|---|
| Free Speed / RPM | 25000 |
| Air Consumption / SCFM | 12 |
| Air Consumption / CFM | 1.86 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.516 |
| Overall Length / inch | 4.842519685 |
| Overall Length / mm | 123 |
| Weight / lb | 0.682 |
| Weight / kg | 0.31 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.25 |
| kW | 0.1875 |
| Collet Size / inch | 1/4 |
Key Features
- High free speed of 25,000 rpm for efficient material removal
- Compatible with multiple abrasive accessories for versatile use
- Optional muffler MSA-005A for noise reduction
- Compact and lightweight design (0.31 kg) for ease of handling
- Rear exhaust to direct airflow away from the operator
- Collet sizes: 1/4 in, 1/8 in, 6 mm, and 3 mm for accessory flexibility
- Operates at 80 PSIA air pressure with 12 SCFM air consumption
Applications
Applications
The Straight Die Grinder is ideal for industrial shaping, grinding, etching, and de-burring tasks on hard metals, glass, tile, and masonry. Its versatility allows use with various abrasive accessories, making it suitable for precision work in manufacturing, metal fabrication, and maintenance operations.
