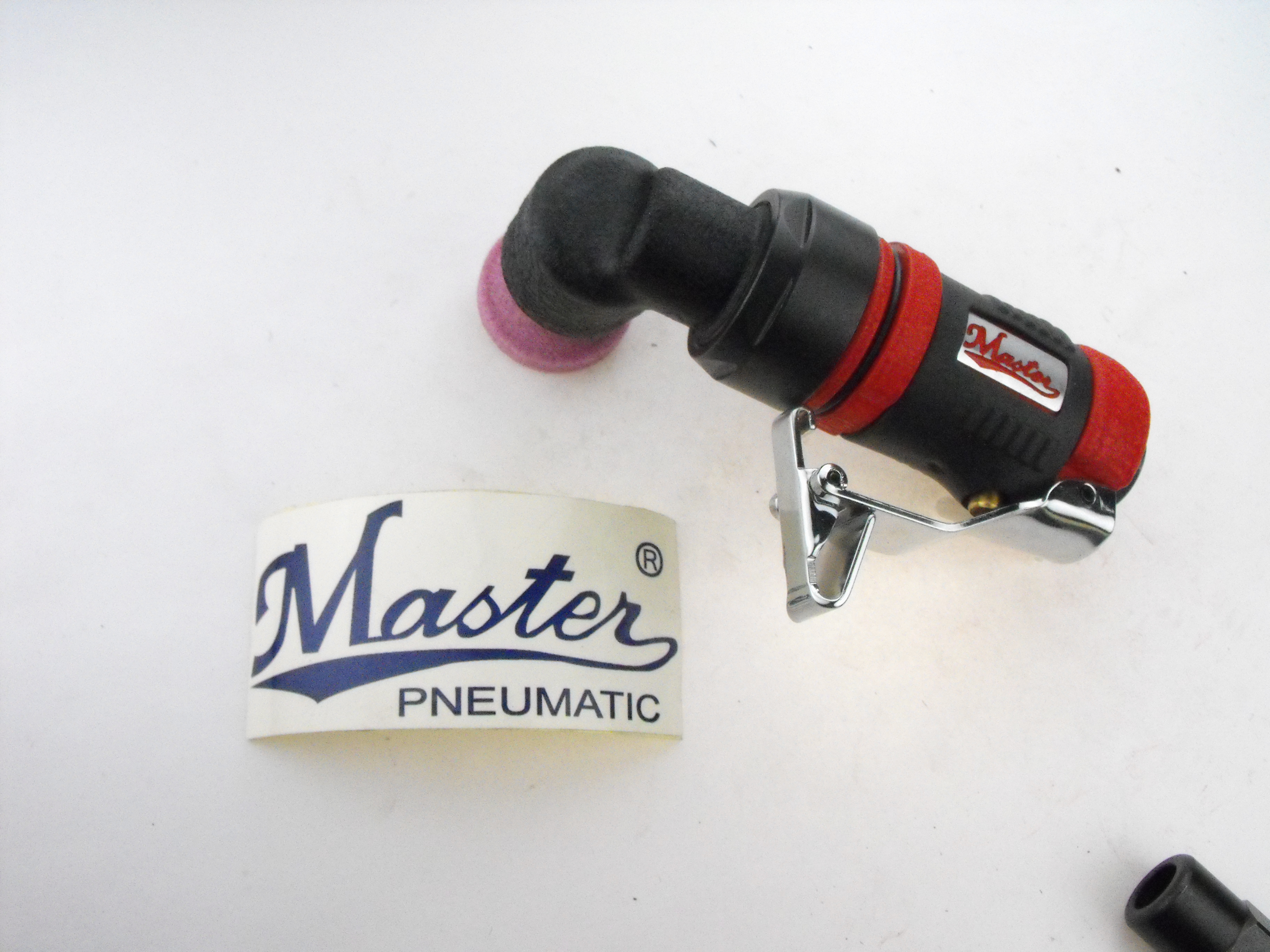

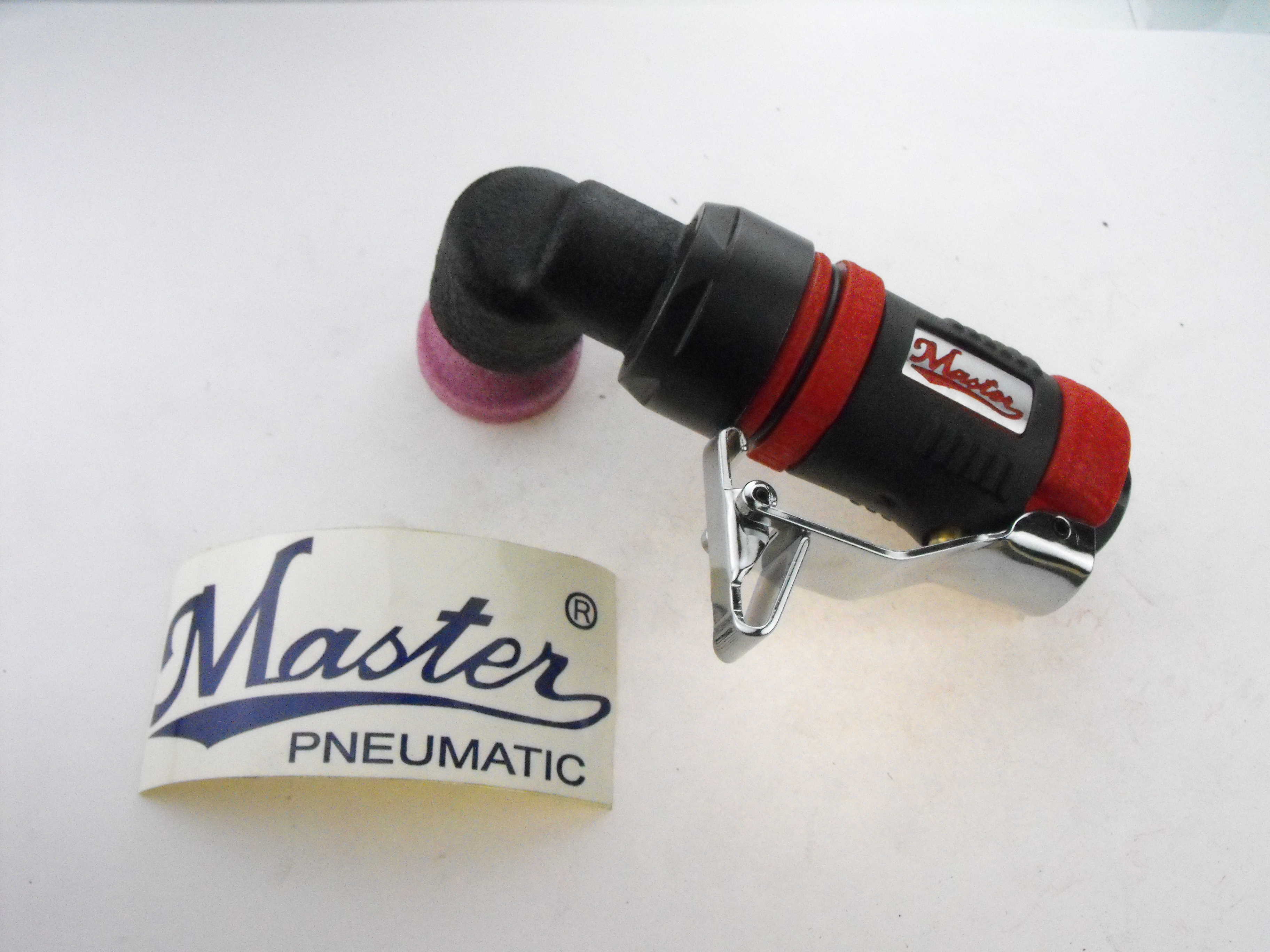

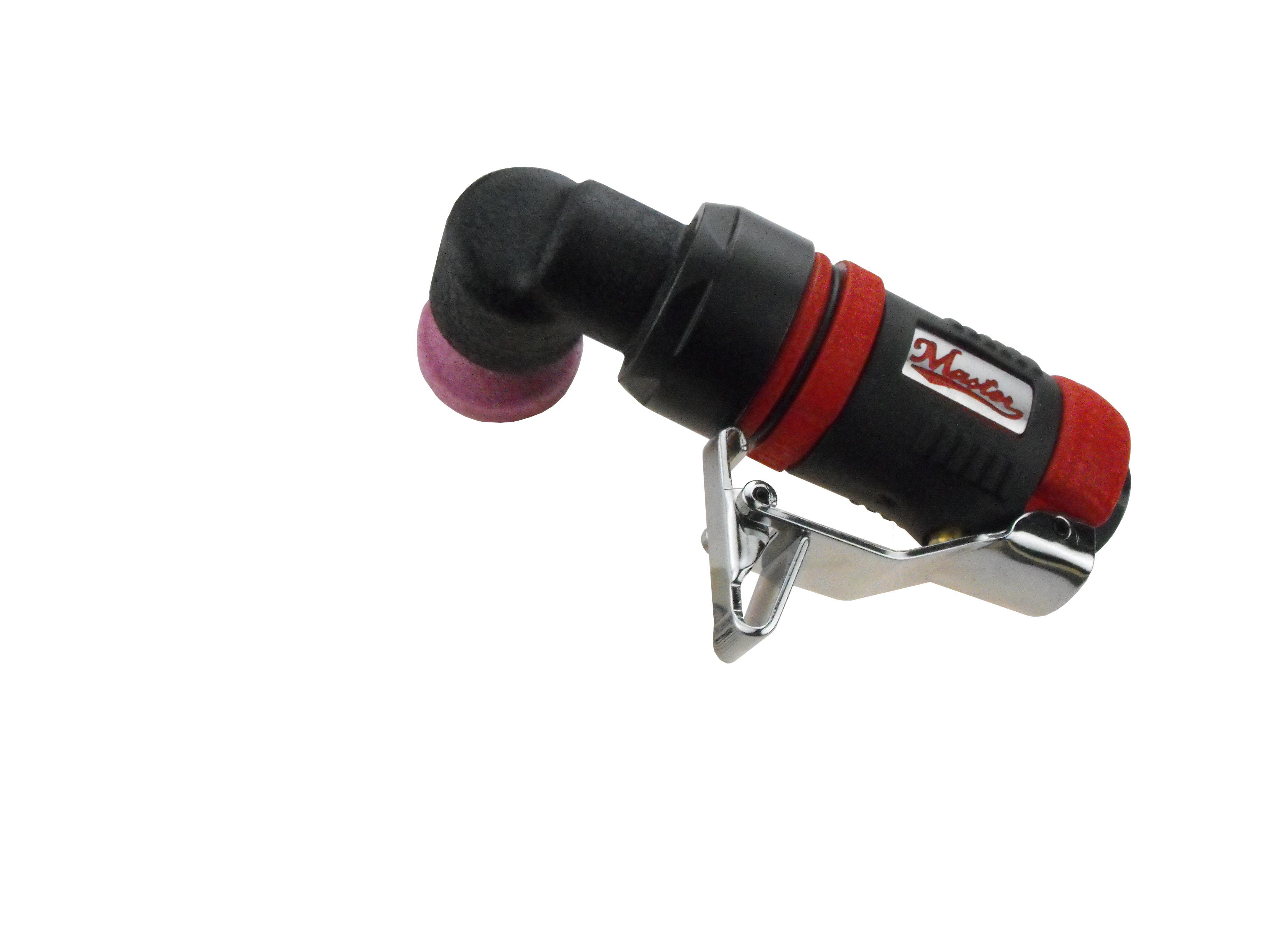

Right Angle Die Grinder Overview
The Right Angle Die Grinder from Master Air Tool Co., Ltd. is engineered for industrial applications requiring compact power and precision. Featuring a low profile angle design and palm-sized housing grip, this tool ensures dexterity and reduced operator fatigue. It operates at a free speed of 16500 rpm and supports optional muffler installation for noise reduction.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 16500 rpm |
| Exhaust | Rear |
| Collet Size | M6*1.0P |
| Weight | 0.34 kg (0.748 lb) |
| Air Pressure | 5.516 bar (80 PSIA) |
| Noise Level | 82 dBA |
| Air Hose Size | 3/16 in (4.7625 mm) |
| Horsepower | 0.25 HP |
| Item No. | 38050 |
|---|---|
| Free Speed / RPM | 19000 |
| Air Consumption / SCFM | 12 |
| Air Consumption / CFM | 1.86 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.516 |
| Angle Height / inch | 0.94488189 |
| Angle Height / mm | 24 |
| Overall Length / inch | 4.330708661 |
| Overall Length / mm | 110 |
| Weight / lb | 0.748 |
| Weight / kg | 0.34 |
| Exhaust | Rear |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.25 |
| kW | 0.1875 |
| Collet Size / inch | M6*1.0P |
Key Features
- Low Profile Angle Design: 0.4 cm height allows access to tight corner areas.
- Palm Size Housing Grip: Compact grip fits comfortably in the palm for enhanced control and reduced hand fatigue.
- Lightweight Construction: Suitable for all operators, minimizing wrist and hand stress during extended use.
- Rear Exhaust: Directs exhaust away from the operator; compatible with optional muffler hose for noise reduction.
- Collet Adaptor: Supports various accessory sizes for versatile industrial applications.
- High Free Speed: 16500 rpm ensures efficient material removal and finishing.
Applications
Industrial Applications
The Right Angle Die Grinder is ideal for precision grinding, polishing, and finishing tasks in confined spaces. Its low profile angle and compact grip design make it suitable for factory floor use where dexterity and tool control are critical. The tool supports various accessories via its collet adaptor, enabling versatility across multiple industrial operations.
