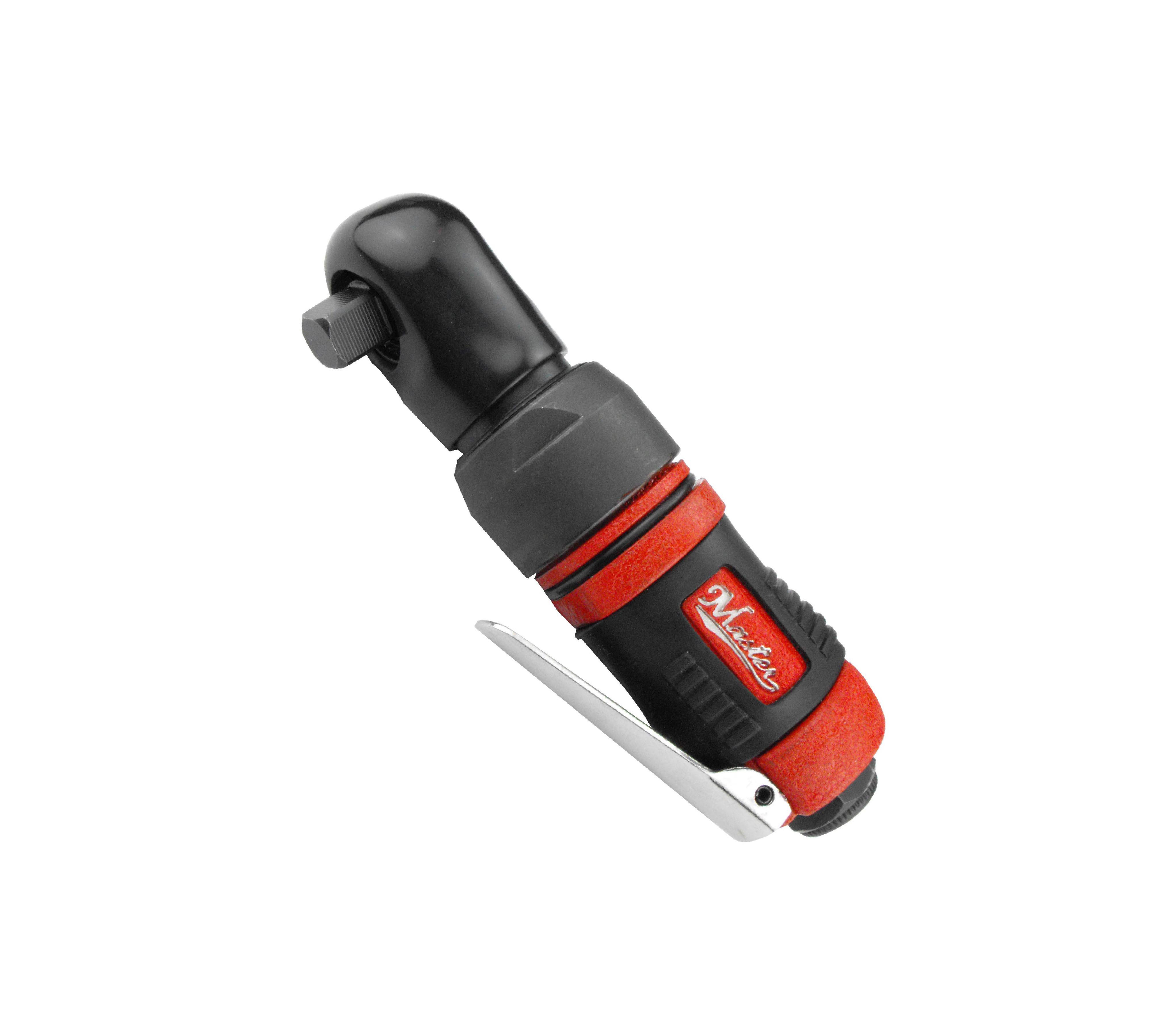

1/2" Ratchet Wrench Overview
The 1/2" Ratchet Wrench is part of the Palm Mini series, engineered for precision and compact power in industrial applications. This kit includes metric bolt sockets and a mini ratchet wrench suitable for socket sizes up to 12mm, ensuring versatility and durability for factory use.
| Item No. | 61030 |
|---|---|
| Free Speed / RPM | 420 |
| Air Consumption / SCFM | 13 |
| Air Consumption / CFM | 1.8265 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.516 |
| Overall Length / inch | 4.921259843 |
| Overall Length / mm | 125 |
| Weight / lb | 0.88 |
| Weight / kg | 0.4 |
| Exhaust | Rear |
| Noise / dBA | 85 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.25 |
| kW | 0.1875 |
| Square Drive / inch | 1/2 |
| Max Torque / ft-lb | 25 |
| Max Torque / Nm | 34 |
Key Features
MASTER PALM MINI SERIES STRAIGHT RATCHET WRENCH
- 1/2" Ratchet Wrench
- Free Speed: 420 rpm
- Optional Muffler: MSA-005A
Applications
Applications
The kit set includes metric bolt sockets and one mini ratchet wrench. Compatible with socket sizes no larger than 12mm. Available kit sets include:
- 61039 for 1/2” mini ratchet kit set
- 61019 for 1/4” mini ratchet kit set
- 61029 for 3/8” mini ratchet kit set
Each kit includes ratchet wrenches and metric bolt sockets sized 10mm and 12mm respectively.
