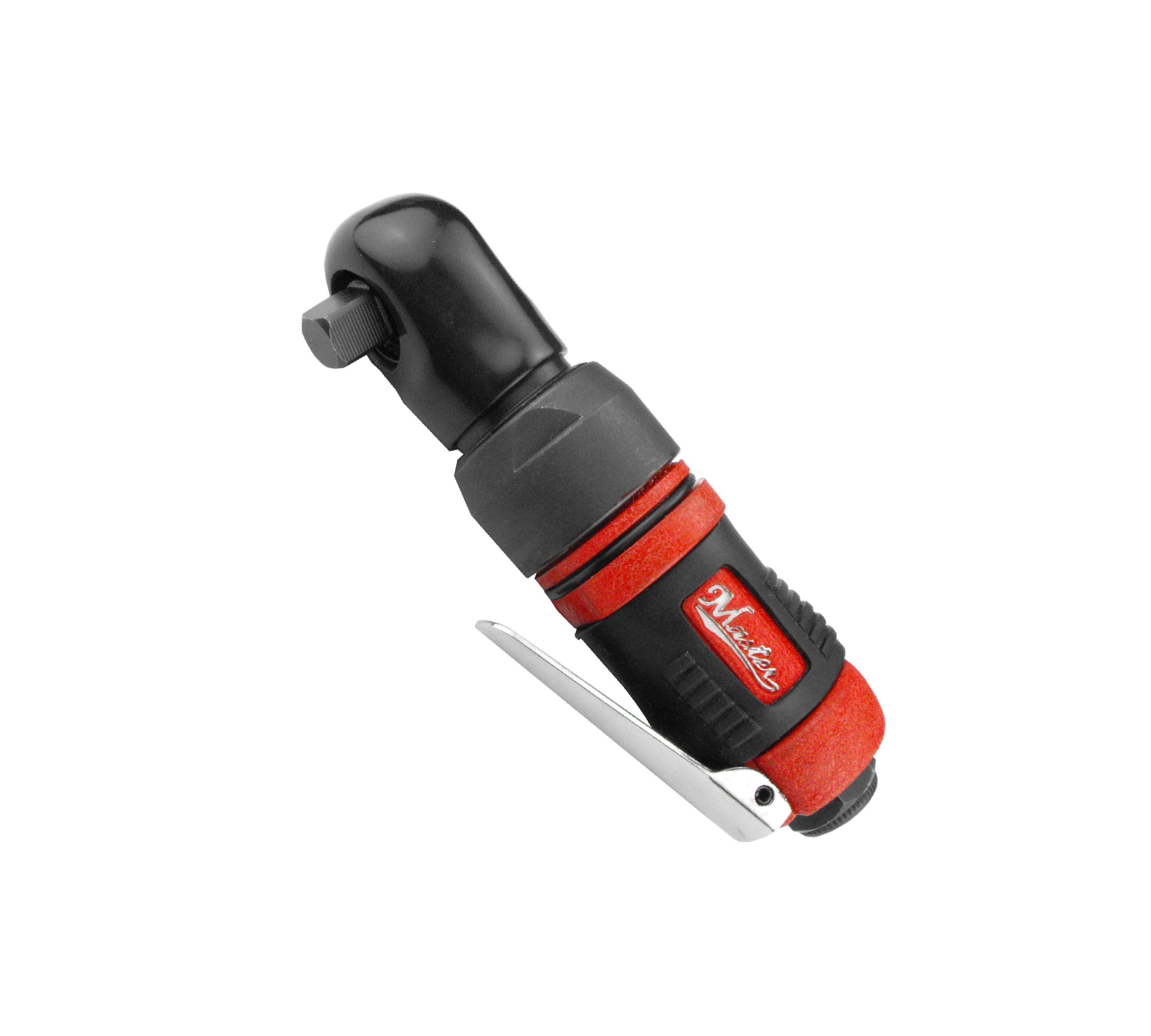

3/8" Ratchet Wrench Overview
The Palm Mini Series 3/8" Ratchet Wrench is engineered for heavy industrial use, combining compact size with durable construction. Its short housing grip length and lightweight design allow for effective operation in tight spaces, reducing user fatigue while maintaining high performance.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 420 RPM |
| Air Pressure | 5.516 bar (80 PSIA) |
| Air Consumption | 1.8265 CFM |
| Weight | 0.4 kg (0.88 lb) |
| Overall Length | 125 mm (4.92 in) |
| Square Drive | 3/8 in (9.525 mm) |
| Max Torque | 25 ft-lb (34 Nm) |
| Noise Level | 85 dBA |
| Exhaust | Rear |
| Item No. | 61020 |
|---|---|
| Free Speed / RPM | 420 |
| Air Consumption / SCFM | 13 |
| Air Consumption / CFM | 1.8265 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.516 |
| Overall Length / inch | 4.921259843 |
| Overall Length / mm | 125 |
| Weight / lb | 0.88 |
| Weight / kg | 0.4 |
| Exhaust | Rear |
| Noise / dBA | 85 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.25 |
| kW | 0.1875 |
| Square Drive / inch | 3/8 |
| Max Torque / ft-lb | 25 |
| Max Torque / Nm | 34 |
Key Features
- Shortest size in the market within the Palm Mini Series for enhanced maneuverability.
- Lightweight and pocket-sized for easy transport and reduced operator fatigue.
- Available with 1/2", 3/8" anvil or 1/4" square drive options.
- Optional muffler MSA-005A for quieter operation.
- Durable ratchet yoke design providing additional strength.
- Industrial texture thermal rubber jacket enhances grip and holding strength.
Applications
Industrial Applications
- Ideal for factory and industrial environments requiring compact, durable air ratchets.
- Designed for use in tight spaces where traditional ratchets are cumbersome.
- Suitable for both male and female operators due to its lightweight and ergonomic design.
- Reduces hand and wrist stress during extended use.
- Quiet technology supports noise-sensitive work areas.
