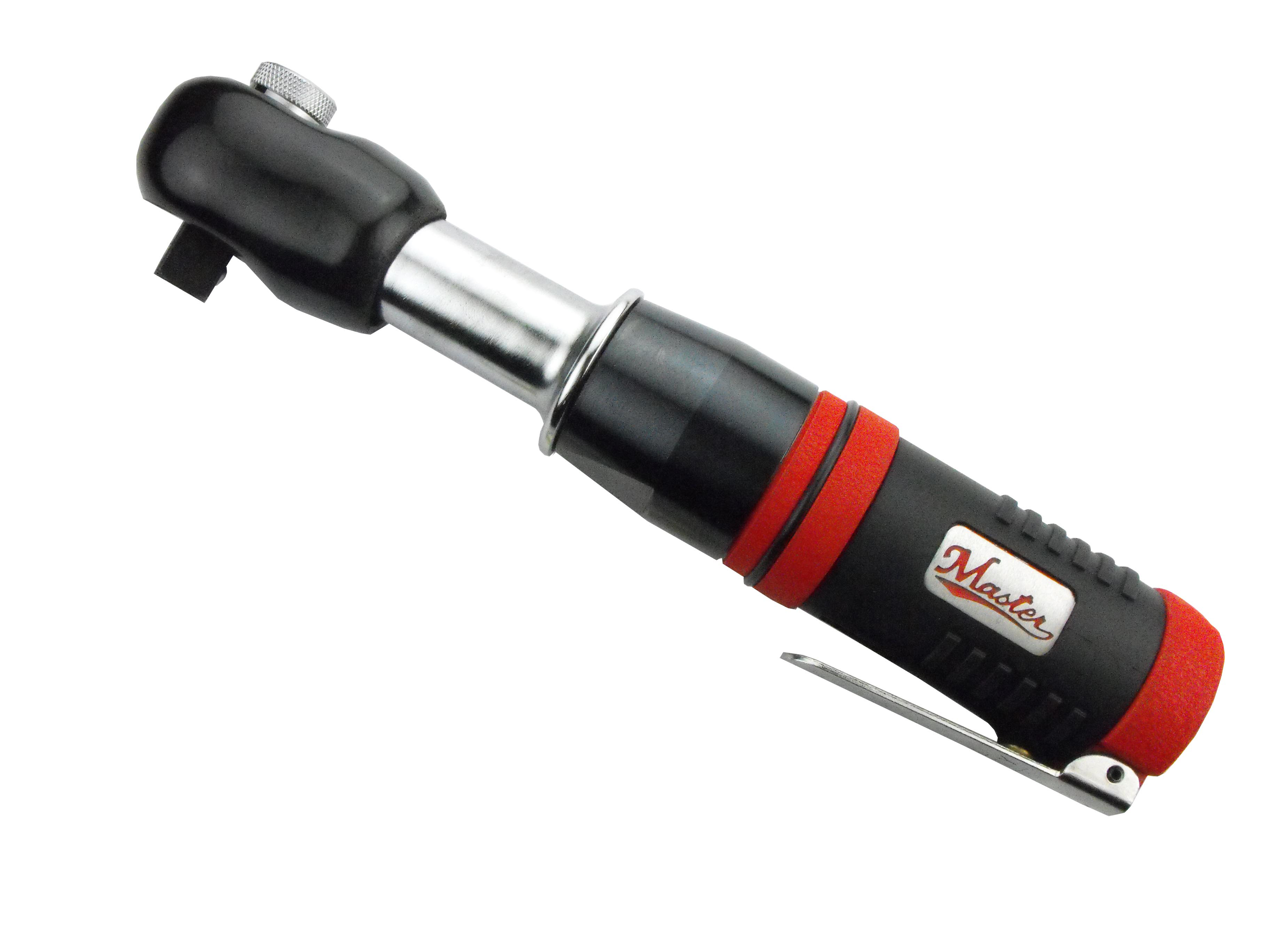

1/2" Ratchet Wrench Overview
The 1/2" Ratchet Wrench from Master Palm's Low Profile Angle Industrial series is engineered for precision and durability in demanding factory environments. Its innovative anvil tighten-up design allows users to rotate and screw on the anvil, facilitating straightforward replacement when the socket anvil is worn or damaged. This feature maximizes tool longevity and reduces downtime.
Designed with pneumatic technology, the wrench delivers consistent torque and reliable performance. The tool supports a free speed of 240 rpm and includes an optional muffler (MSA-006A) to reduce noise levels during operation.
Specifications include a 1/2 inch square drive, maximum torque of 90 ft-lb (125 Nm), air consumption of approximately 2.81 CFM, and operates at an air pressure of around 90 PSIA. The wrench weighs 1.2 kg (2.64 lb) and has an overall length of 260 mm (10.24 inches), making it compact yet powerful for industrial applications.
| Item No. | 68140 |
|---|---|
| Free Speed / RPM | 240 |
| Air Consumption / SCFM | 20 |
| Air Consumption / CFM | 2.81 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 10.23622047 |
| Overall Length / mm | 260 |
| Weight / lb | 2.64 |
| Weight / kg | 1.2 |
| Exhaust | Rear |
| Noise / dBA | 89 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
| Square Drive / inch | 1/2 |
| Max Torque / ft-lb | 90 |
| Max Torque / Nm | 125 |
Key Features
- Easy Anvil Tighten-Up Design for quick and tool-free anvil replacement
- Full reverse torque capability for industrial use
- Free speed of 240 rpm ensuring efficient operation
- Optional muffler (MSA-006A) for noise reduction
- Compact 1/2" square drive for versatile socket compatibility
- Durable construction designed for heavy-duty factory environments
Applications
Applications
The 1/2" Ratchet Wrench is ideal for industrial maintenance, assembly lines, and factory use where compact power and durability are essential. Its easy anvil replacement design ensures minimal downtime, making it suitable for continuous operation in demanding pneumatic tool applications.
