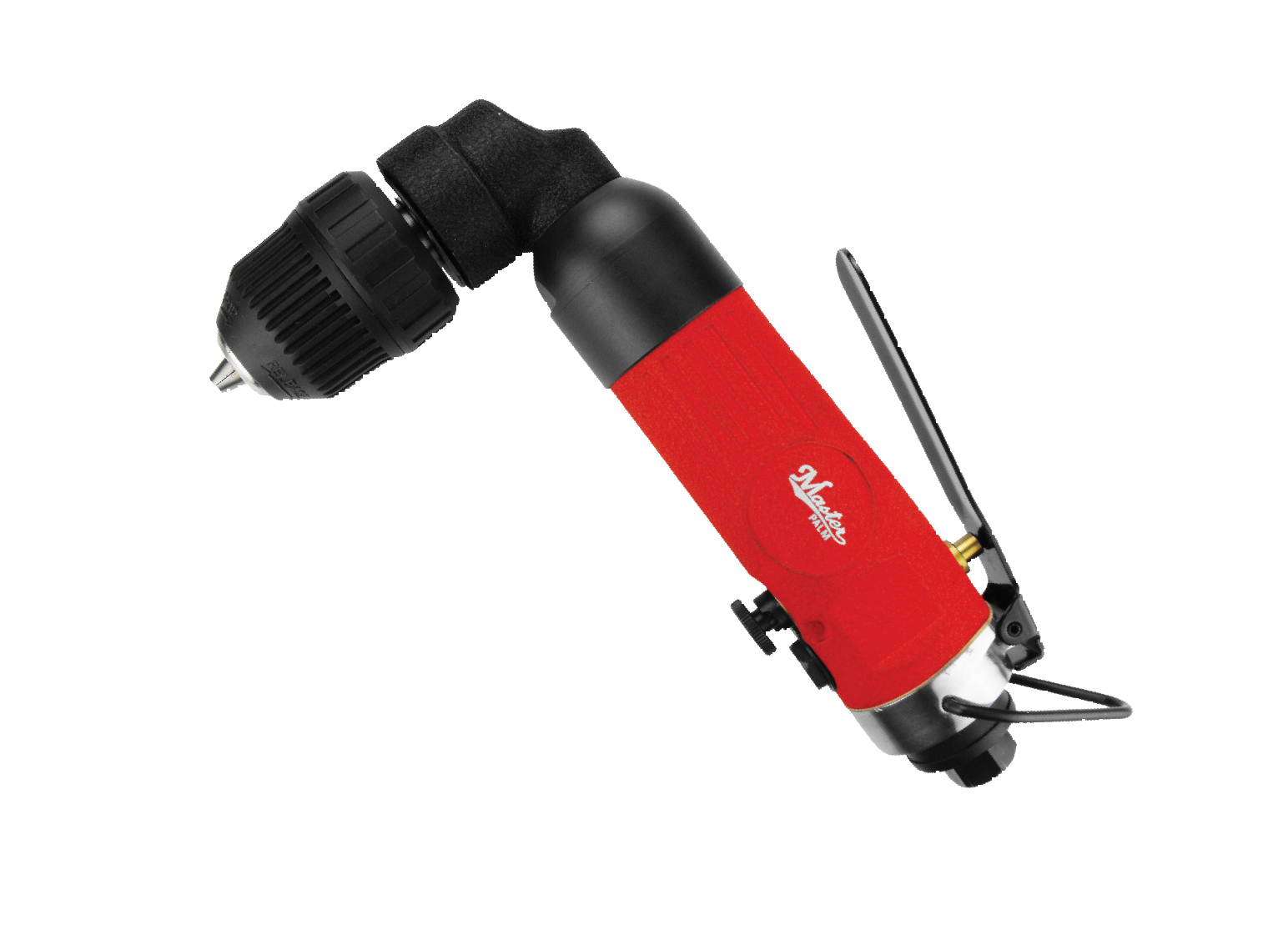

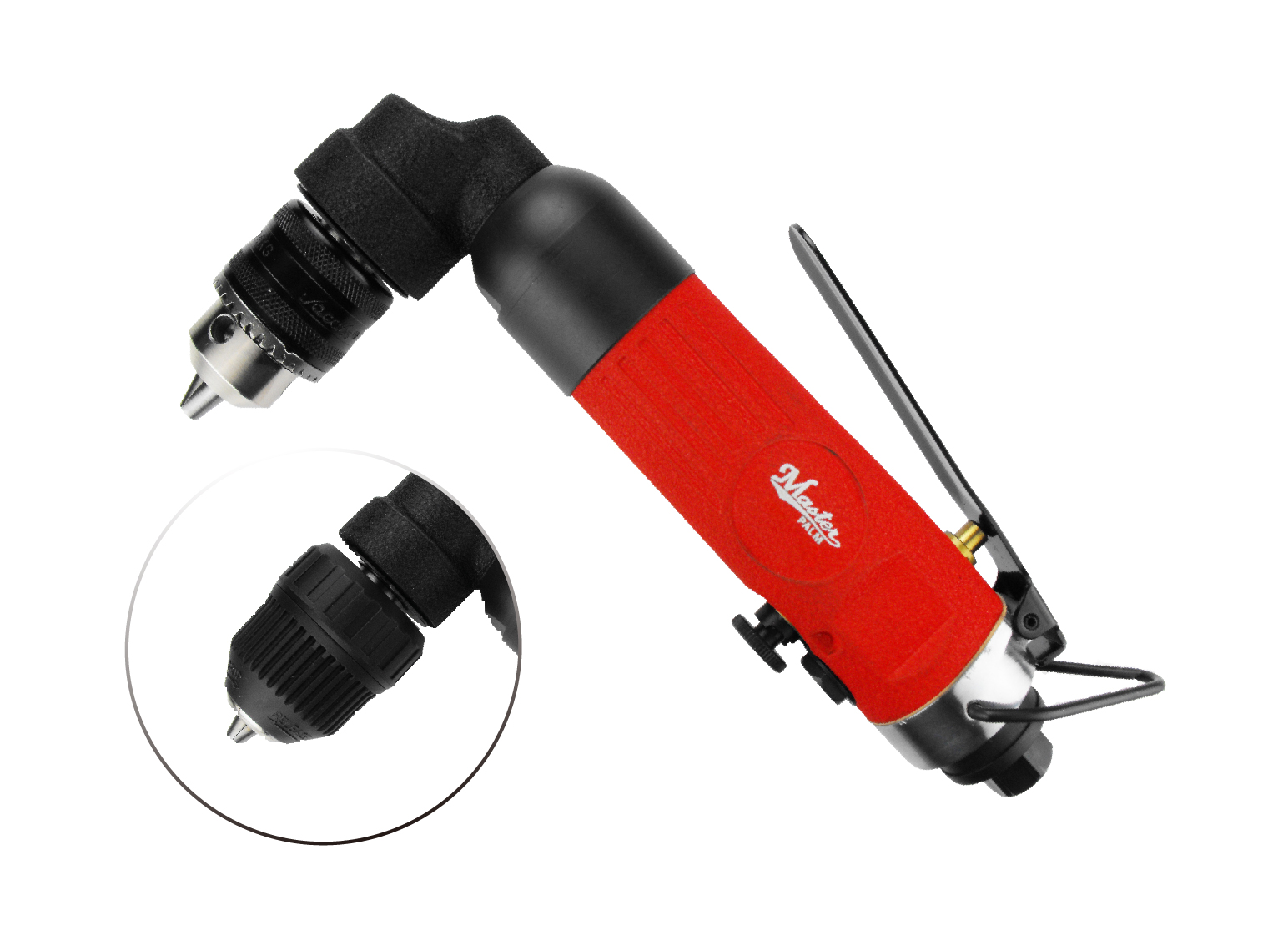

1/2" Rev.Angle Air Drill Overview
The 1/2" Rev.Angle Air Drill is designed for precision engineering and durability in industrial environments. Featuring a Jacobs super chuck ball bearing keyed chuck, it supports heavy-duty, tight tolerance drilling tasks. The drill includes a two-gear drive system for enhanced performance and a reversible trigger located below the housing for convenient operation.
Its 90-degree right angle design allows access to confined spaces and hard-to-reach corners, making it ideal for factory use and assembly line applications. The tool is optimized for pneumatic power, ensuring compact power delivery and reliable operation under demanding conditions.
| Item No. | 28490K |
|---|---|
| Free Speed / RPM | 500 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.17 |
| Overall Length / mm | 233 |
| Weight / lb | 1.76 |
| Weight / kg | 0.8 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Chuck Size / inch | 1/2" |
| Spindle Thread | 3/8"-24T |
Key Features
- Jacobs Super Chuck: Ball bearing keyed chuck engineered for heavy-duty, tight tolerance production drilling.
- Reversible Trigger: Easy reversible design using the trigger located below the housing body for operator convenience.
- Two Gear Drive System: Enhances tool performance and operational efficiency.
- Right Angle Design: 90-degree drill head for access to confined corners and hard-to-reach areas.
Applications
Applications
The 1/2" Rev.Angle Air Drill is suited for industrial and factory environments requiring compact, durable pneumatic tools. It is ideal for production drilling in tight spaces, assembly lines, maintenance tasks, and other applications where precision and reliability are critical.
