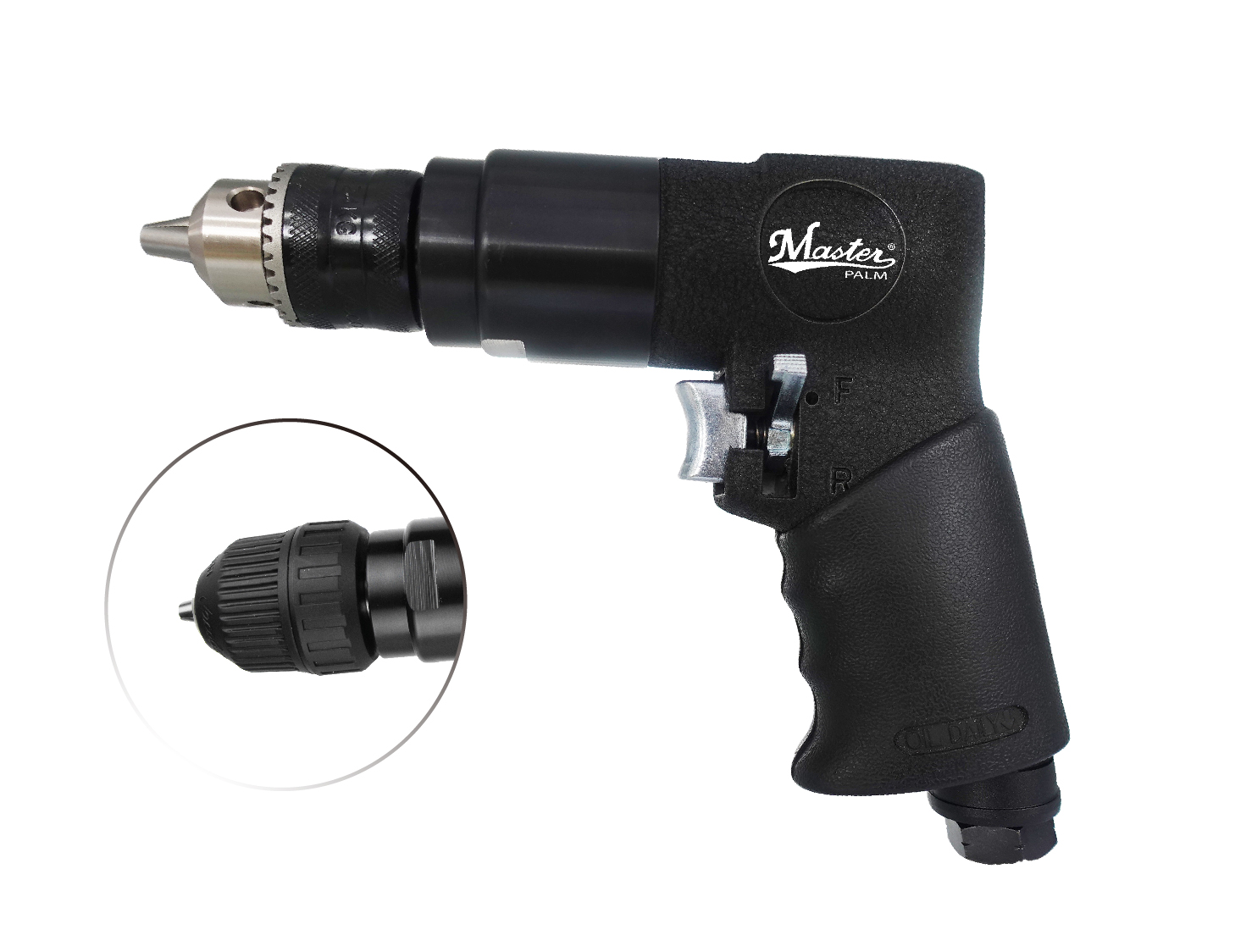

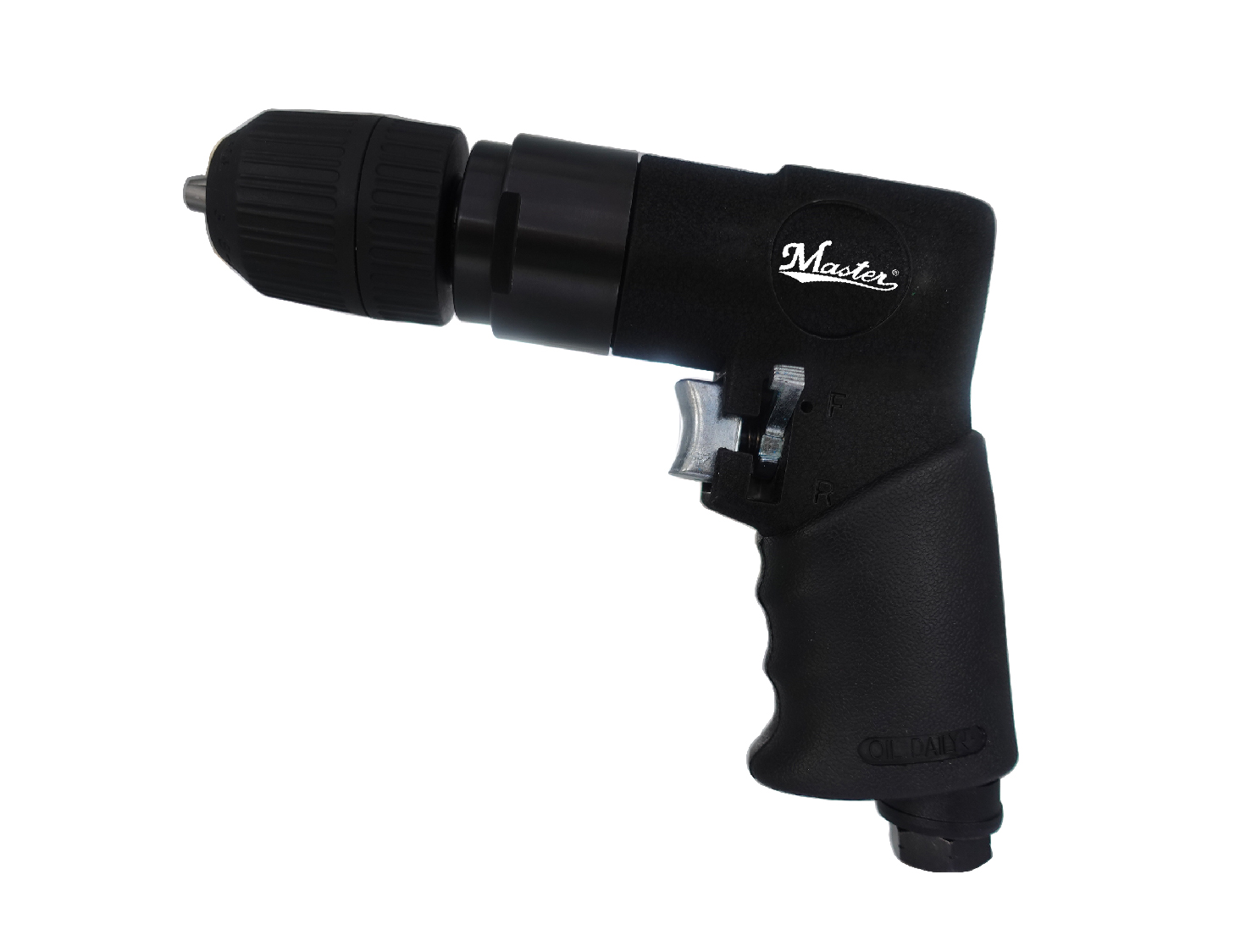

3/8" H.D. Reversible Air Drill Overview
The 3/8" H.D. Rev. Air Drill is designed for industrial applications requiring compact power and durability. Equipped with a Jacobs super chuck ball bearing keyed chuck, it ensures tight tolerance production drilling. The ergonomic palm curve tail design and side handle enhance user control and comfort during extended factory use. The drill allows seamless switching between reverse and forward directions to accommodate varied operational needs.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 2000 RPM |
| Air Consumption | 19.1 SCFM / 13.4 CFM / 22.75 m³/hr / 0.38 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 7.87 in / 200 mm |
| Weight | 1.5 kg / 3.3 lb |
| Exhaust | Side |
| Noise Level | 82 dBA |
| Air Hose Size | 3/8" in / 9.5 mm |
| Horsepower | 0.5 HP / 0.38 kW |
| Chuck Size | 3/8" in |
| Spindle Thread | 3/8"-24T |
| Item No. | 21570K |
|---|---|
| Free Speed / RPM | 2000 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 7.87 |
| Overall Length / mm | 200 |
| Weight / lb | 3.3 |
| Weight / kg | 1.5 |
| Exhaust | Side |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Chuck Size / inch | 3/8" |
| Spindle Thread | 3/8"-24T |
Key Features
- Jacobs Super Chuck Ball Bearing Keyed Chuck: Engineered for heavy-duty, tight tolerance production drilling.
- Ergonomic Palm Curve Tail Design: Provides easy push point strength for enhanced control.
- Side Handle: Improves stability and handling during operation.
- Reversible Operation: Simple switching between reverse and forward directions for versatile use.
Applications
Industrial Applications
The 3/8" H.D. Rev. Air Drill is ideal for factory environments requiring precision and durability. It supports heavy-duty drilling tasks in manufacturing, assembly lines, maintenance, and other industrial settings where compact, reliable pneumatic tools are essential.
