Product Overview

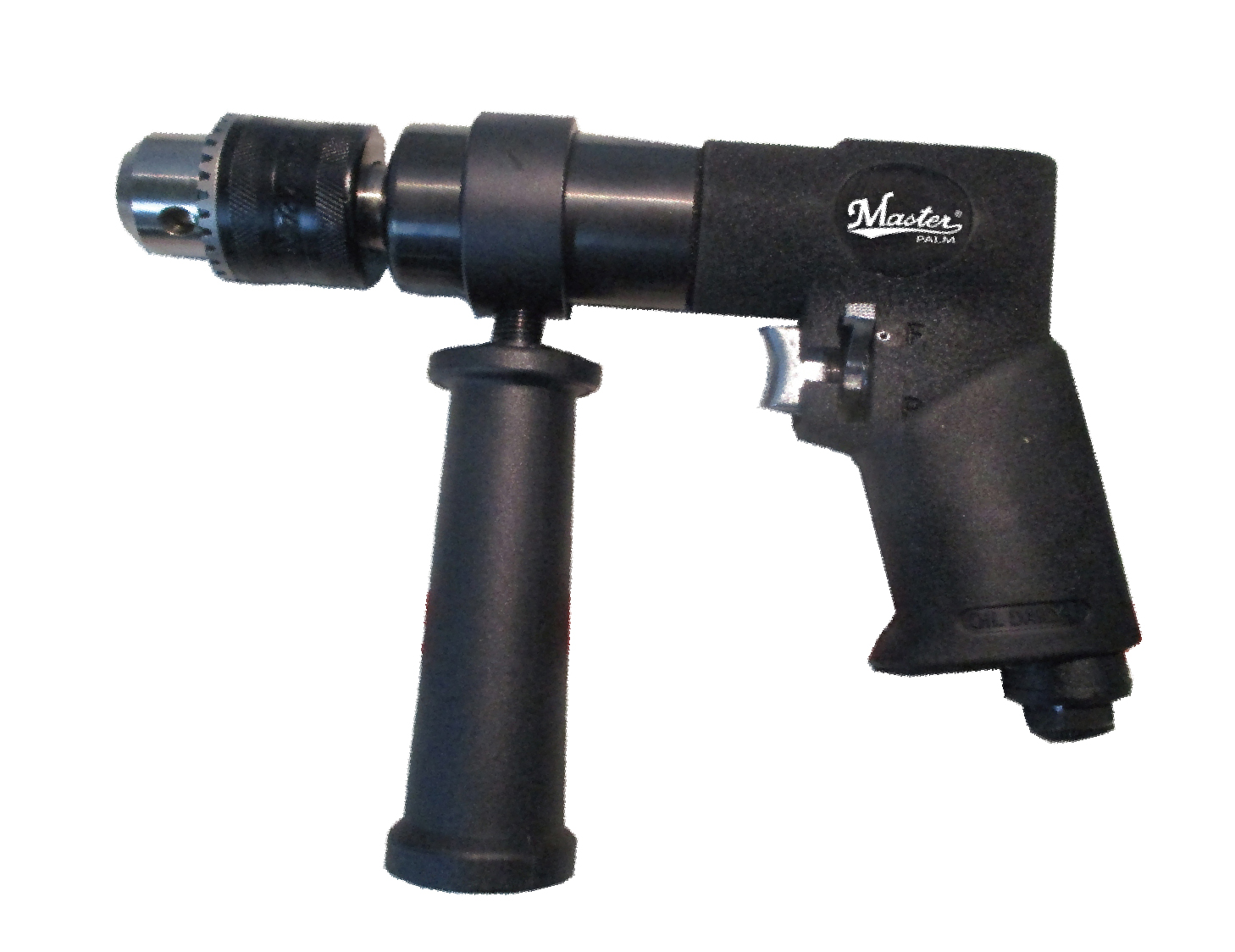

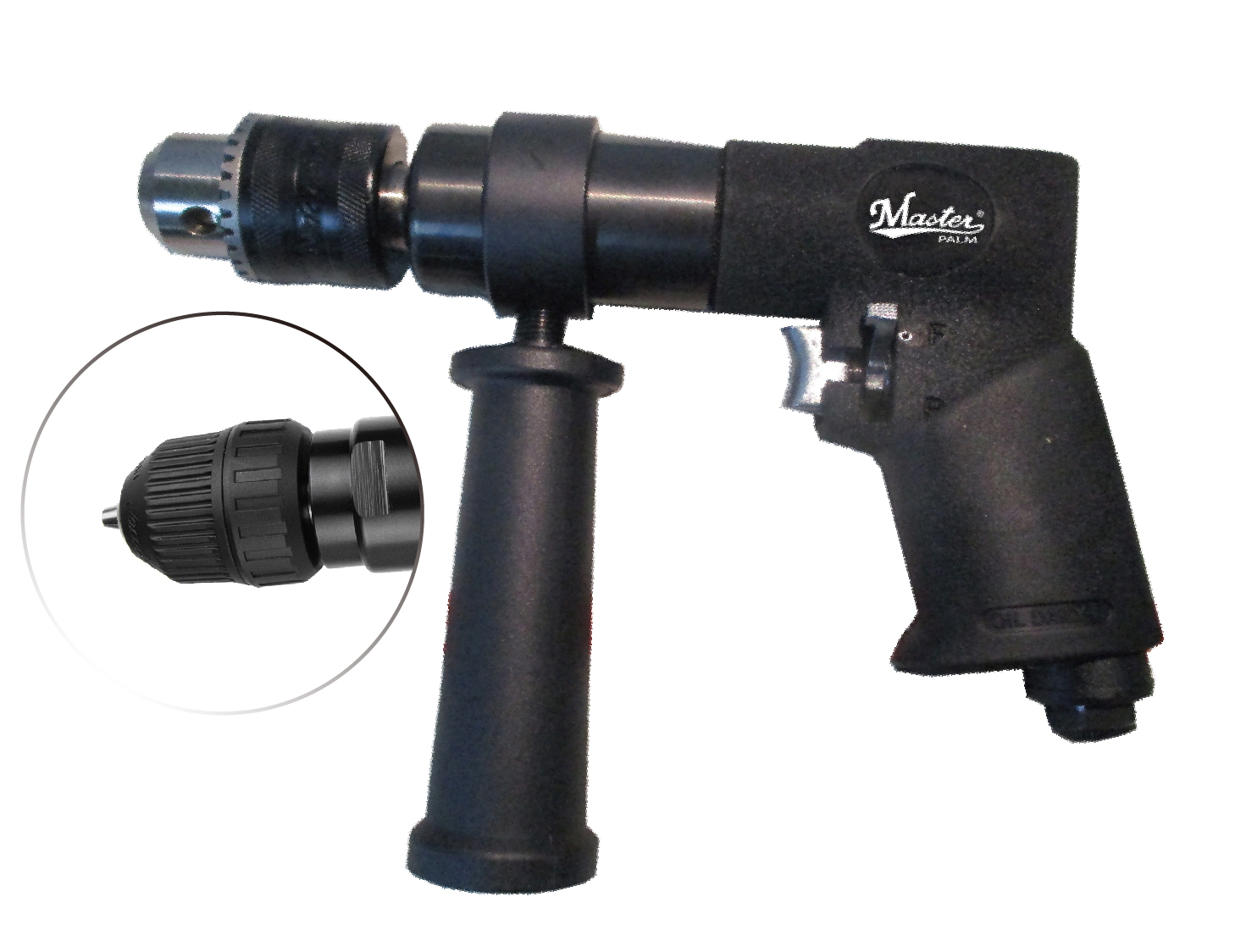

The 1/2" Reversible Air Drill is designed for industrial applications requiring precision and durability. Equipped with a Jacobs super chuck ball bearing keyed chuck, it ensures tight tolerance drilling. The special pressure push design improves holding strength by allowing operators to apply palm pressure during use, enhancing control and stability.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 750 RPM |
| Air Consumption | 19.1 SCFM / 13.4 CFM / 22.75 m³/hr / 0.38 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 8.5 in / 216 mm |
| Weight | 0.95 kg / 2.09 lb |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.5 HP / 0.38 kW |
| Chuck Size | 1/2" |
| Spindle Thread | 3/8"-24T |
| Item No. | 21580 |
|---|---|
| Free Speed / RPM | 750 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 8.5 |
| Overall Length / mm | 216 |
| Weight / lb | 2.09 |
| Weight / kg | 0.95 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Chuck Size / inch | 1/2" |
| Spindle Thread | 3/8"-24T |
Key Features
- Jacobs super chuck ball bearing keyed chuck engineered for heavy-duty, tight tolerance production drilling.
- Special pressure push design enhances holding strength by allowing palm pressure during operation.
- Ergonomically designed for both right-handed and left-handed users.
- Suitable for drilling aluminum, tin, brass, and plastic materials.
- Provides operator comfort during prolonged, high-strength applications.
Applications
Applications
Designed for factory and industrial use, the 1/2" Reversible Air Drill is ideal for precision drilling tasks in metalworking and manufacturing environments. Its durable construction and ergonomic features support extended operation in production settings requiring consistent performance and reliability.
