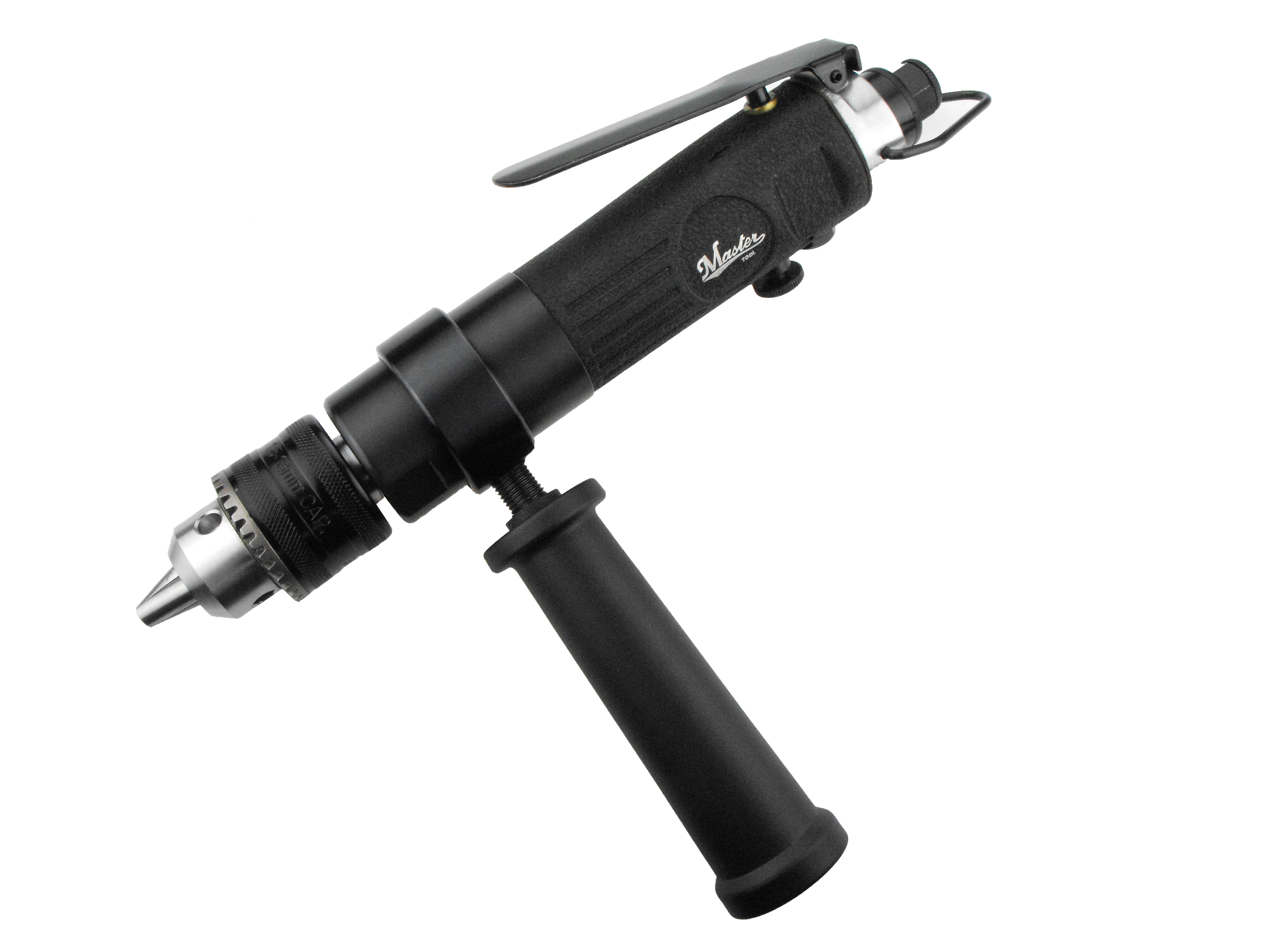

Master Palm 1/2" Straight Drill Overview
The 1/2" Straight Drill is part of the Master Palm Reversible Series, designed for precision and durability in industrial environments. It features a powerful motor and reversible operation, enabling efficient task completion without tool changes. The adjustable side handle provides additional support for controlled and robust drilling performance.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 800 RPM |
| Air Consumption | 20 SCFM / 2.81 CFM / 441.792 m³/hr / 7.3632 m³/min |
| Air Pressure | 90 PSIA / 6.3279 kg/cm² / 6.2055 bar / 620.55 kPa |
| Overall Length | 200 mm / 7.874 in |
| Weight | 2.2 kg / 4.84 lb |
| Exhaust | Rear |
| Noise Level | 88 dBA |
| Air Hose Size | 3/8 in / 9.525 mm |
| Horsepower | 0.5 HP |
| Power | 0.375 kW |
| Chuck Size | 1/2 in / 13 mm |
| Spindle Thread | 3/8-24T |
| Item No. | 21470 |
|---|---|
| Free Speed / RPM | 800 |
| Air Consumption / SCFM | 20 |
| Air Consumption / CFM | 2.81 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 7.874015748 |
| Overall Length / mm | 200 |
| Weight / lb | 4.84 |
| Weight / kg | 2.2 |
| Exhaust | Rear |
| Noise / dBA | 88 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.5 |
| kW | 0.375 |
| Chuck Size / inch | 1/2 |
| Chuck Size / mm | 13 |
| Spindle Thread | 3/8-24T |
Key Features
- Reversible design with easy direction switch via trigger under the housing for efficient operation.
- Powerful motor delivering strong and reliable performance for industrial drilling tasks.
- Adjustable side handle provides extra support and control during drilling operations.
- Durable construction suited for factory and heavy industrial use.
Applications
Applications
The 1/2" Straight Drill is engineered for professional industrial use requiring precise and powerful drilling. Its reversible function and ergonomic handle design make it ideal for tasks demanding efficiency and operator control in manufacturing and maintenance environments.
