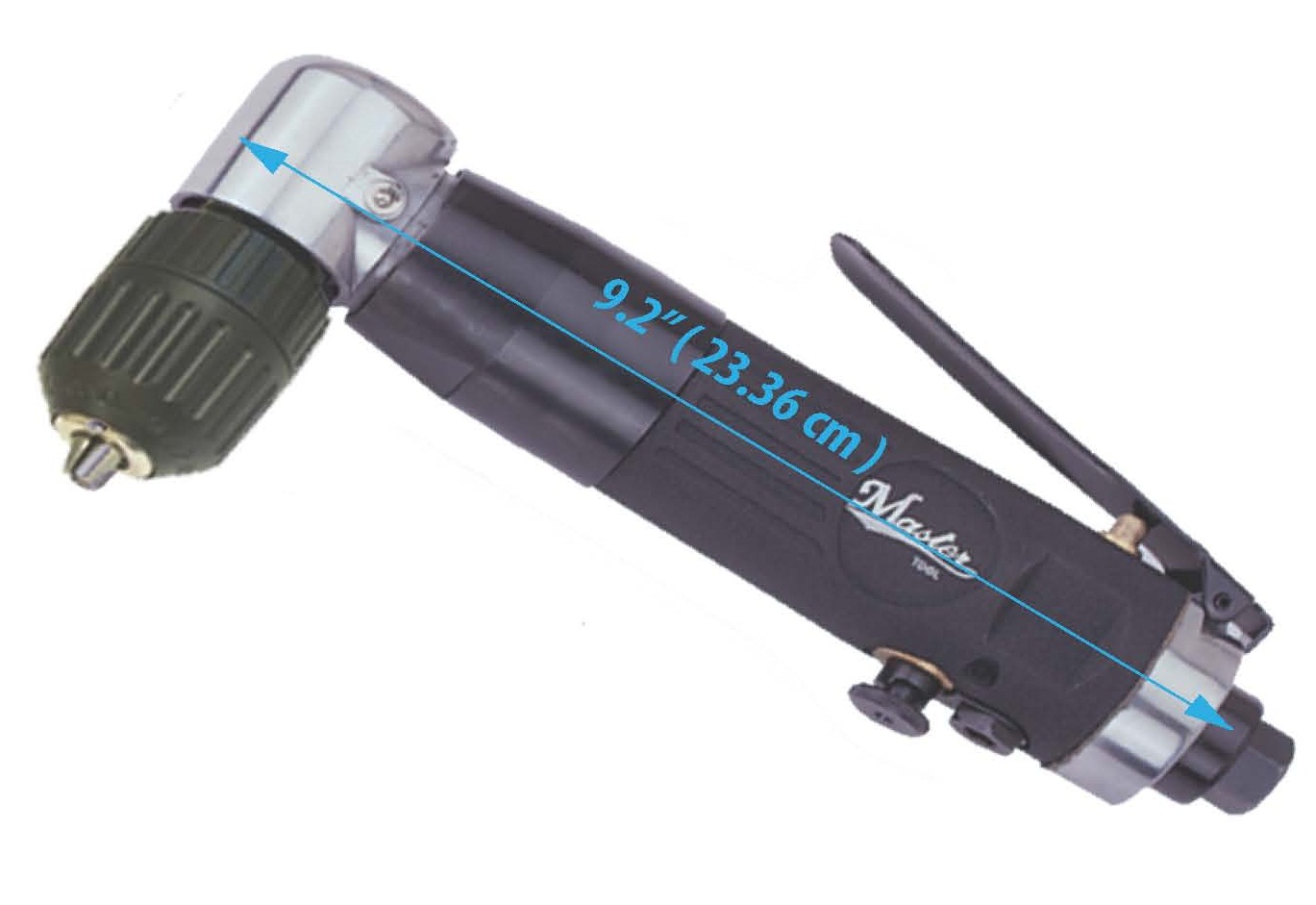

1/2" Right Angle Drill (Heavy Duty)
This right angle drill features a 1/2" chuck size and a 3/8-24T spindle thread, engineered for demanding industrial environments. It operates at a free speed of 500 RPM with an air consumption of 18 SCFM, ensuring efficient pneumatic power delivery. The tool weighs 0.81 kg (1.782 lb) and has an overall length of 233 mm (9.17 in), providing a compact and ergonomic design for factory use.
Its rear exhaust design minimizes interference during operation, while the noise level is maintained at 81 dBA. The drill requires an air pressure of approximately 90 PSIA (6.2 bar) and connects via a 3/8 in (9.525 mm) air hose, supporting consistent performance in industrial settings.
| Item No. | 21490K |
|---|---|
| Free Speed / RPM | 500 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.529 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Angle Height / inch | 1.496062992 |
| Angle Height / mm | 38 |
| Overall Length / inch | 9.173228346 |
| Overall Length / mm | 233 |
| Weight / lb | 1.782 |
| Weight / kg | 0.81 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.5 |
| kW | 0.375 |
| Chuck Size / inch | 1/2 |
| Chuck Size / mm | 13 |
| Spindle Thread | 3/8-24T |
Key Features
- Heavy-duty 1/2" chuck for versatile drilling applications
- Compact right angle design for access in confined spaces
- Robust pneumatic power with 0.5 HP output
- Rear exhaust to reduce operator discomfort
- Lightweight at 0.81 kg for ease of handling
- Operates at 500 RPM for controlled drilling speed
- Compatible with 3/8 in air hose for standard industrial connections
Applications
Industrial Applications
- Precision drilling in metal fabrication and assembly lines
- Maintenance and repair tasks in manufacturing plants
- Installation work requiring compact and durable pneumatic tools
- Operations in tight or confined factory spaces
