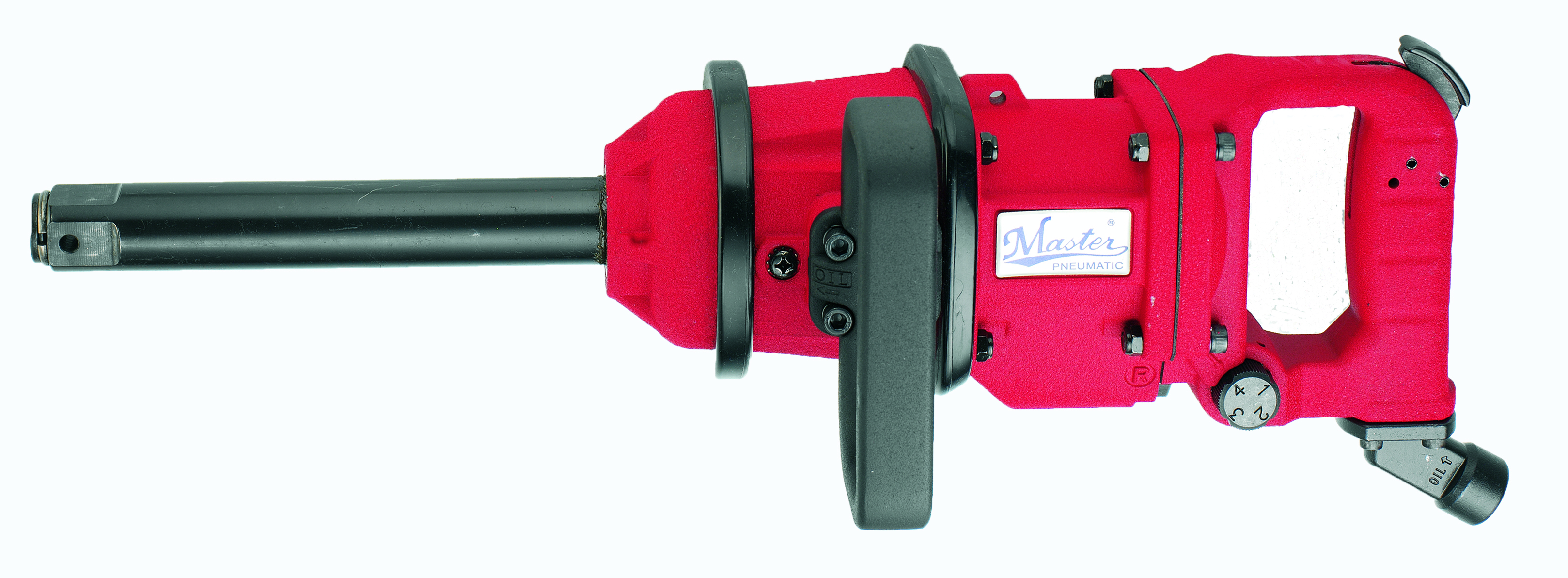

1" Impact Wrench (D-Handle, Long Anvil)
This industrial-grade impact wrench features a 1” square drive twin hammer mechanism delivering robust performance for heavy-duty applications. The long anvil design enhances reach and accessibility in confined spaces. Equipped with a rotatable speed control switch, it allows precise operation tailored to specific tasks. The ergonomic D-handle includes an easy trigger control positioned for optimal handling and on/off operation.
| Specification | Value |
|---|---|
| Free Speed | 3500 RPM |
| Max Torque | 1850 ft-lb (2508.6 Nm) |
| 5 Sec Torque | 1320 ft-lb (1789.92 Nm) |
| Impacts Per Minute | 600 IPM |
| Air Consumption | 7.025 CFM (18.408 m³/min) |
| Air Pressure | 90 PSIA (6.2055 bar) |
| Weight | 7.4 kg (16.28 lb) |
| Overall Length | 423 mm (16.65 in) |
| Square Drive | 1" (25.4 mm) |
| Noise Level | 83 dBA |
| Air Hose Size | 1/2 in (12.7 mm) |
| Horsepower | 0.75 HP (0.5625 kW) |
| Exhaust | Side |
| Item No. | 68350L |
|---|---|
| Free Speed / RPM | 3500 |
| Air Consumption / SCFM | 50 |
| Air Consumption / CFM | 7.025 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 16.65354331 |
| Overall Length / mm | 423 |
| Weight / lb | 16.28 |
| Weight / kg | 7.4 |
| Exhaust | Side |
| Noise / dBA | 83 |
| Air Hose Size / inch | 1/2 |
| Air Hose Size / mm | 12.7 |
| Horsepower | 0.75 |
| kW | 0.5625 |
| Square Drive / inch | 1" |
| Max Torque / ft-lb | 1850 |
| Max Torque / Nm | 2508.6 |
| 5 Sec Torque / ft-lb | 1320 |
| 5 Sec Torque / Nm | 1789.92 |
| Impact Type | twin hammer |
| Impact Per Minute | 600 |
Key Features
- 1" Square Drive Twin Hammer Impact Wrench delivering high torque output.
- Long anvil design for extended reach in industrial applications.
- Rotatable speed control switch for adjustable operating speeds.
- Ergonomic D-handle with easy trigger control positioned on top for efficient operation.
- Durable construction optimized for heavy-duty factory use.
Applications
Applications
- Heavy-duty fastening and loosening tasks requiring 1” square drive tools.
- Industrial assembly lines and maintenance operations demanding reliable impact power.
- Situations requiring extended reach with the long anvil design.
- Factory environments where precise speed control and ergonomic handling improve productivity.
