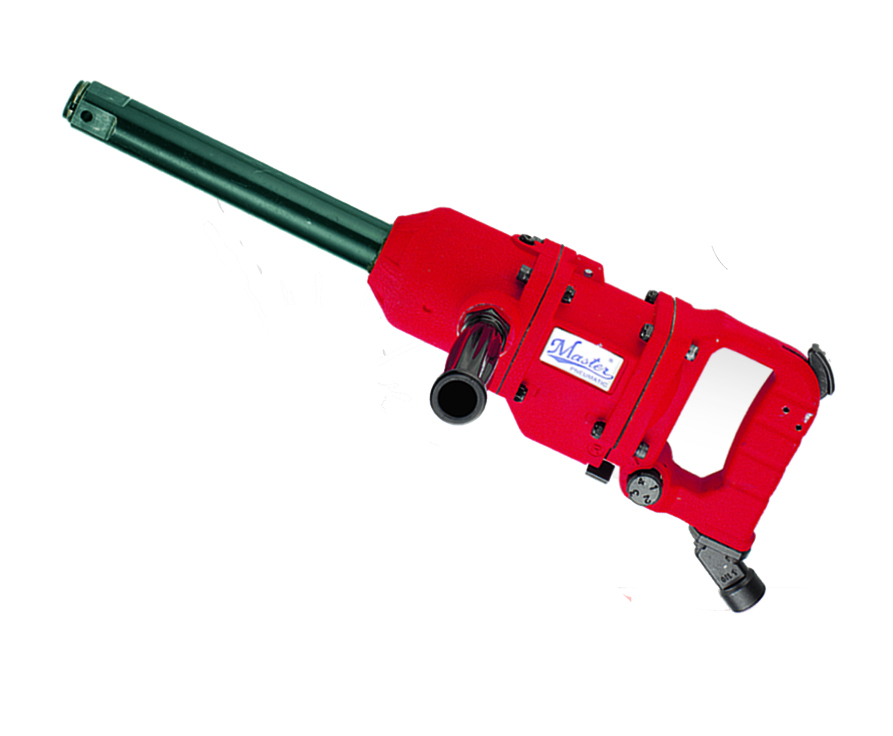

3/4" Impact Wrench (Long Anvil)
This heavy-duty impact wrench is equipped with a 3/4” square drive anvil and a long anvil design, enabling operators to reach confined or deep spaces with ease. The tool incorporates a twin hammer impact mechanism delivering reliable power and durability for demanding factory environments. Its rotatable speed control switch allows precise operation at varying speeds, while the ergonomically positioned trigger on the D-handle ensures comfortable and efficient tool engagement.
| Item No. | 68310L |
|---|---|
| Free Speed / RPM | 3500 |
| Air Consumption / SCFM | 50 |
| Air Consumption / CFM | 7.025 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 14.17322835 |
| Overall Length / mm | 360 |
| Weight / lb | 0 |
| Exhaust | Side |
| Noise / dBA | 83 |
| Air Hose Size / inch | 1/2 |
| Air Hose Size / mm | 12.7 |
| Horsepower | 0.53 |
| kW | 0.3975 |
| Square Drive / inch | 3/4 |
| Max Torque / ft-lb | 1000 |
| Max Torque / Nm | 1356 |
| 5 Sec Torque / ft-lb | 730 |
| 5 Sec Torque / Nm | 989.88 |
| Impact Type | twin hammer |
| Impact Per Minute | 800 |
Key Features
- 3/4" Square Drive Twin Hammer Impact Mechanism
- Long Anvil Design for Extended Reach
- Rotatable Speed Control Switch for Variable Speed Operation
- Ergonomic D-Handle with Top-Mounted Trigger for Easy Control
- Heavy-Duty Construction for Industrial Use
- Free Speed: 3500 RPM
Applications
Applications
Designed for heavy-duty industrial environments, this impact wrench is ideal for tasks requiring high torque and access to deep or confined spaces. Its long anvil design facilitates operations in areas where standard impact wrenches cannot reach, making it suitable for factory maintenance, assembly lines, and other demanding pneumatic tool applications.
