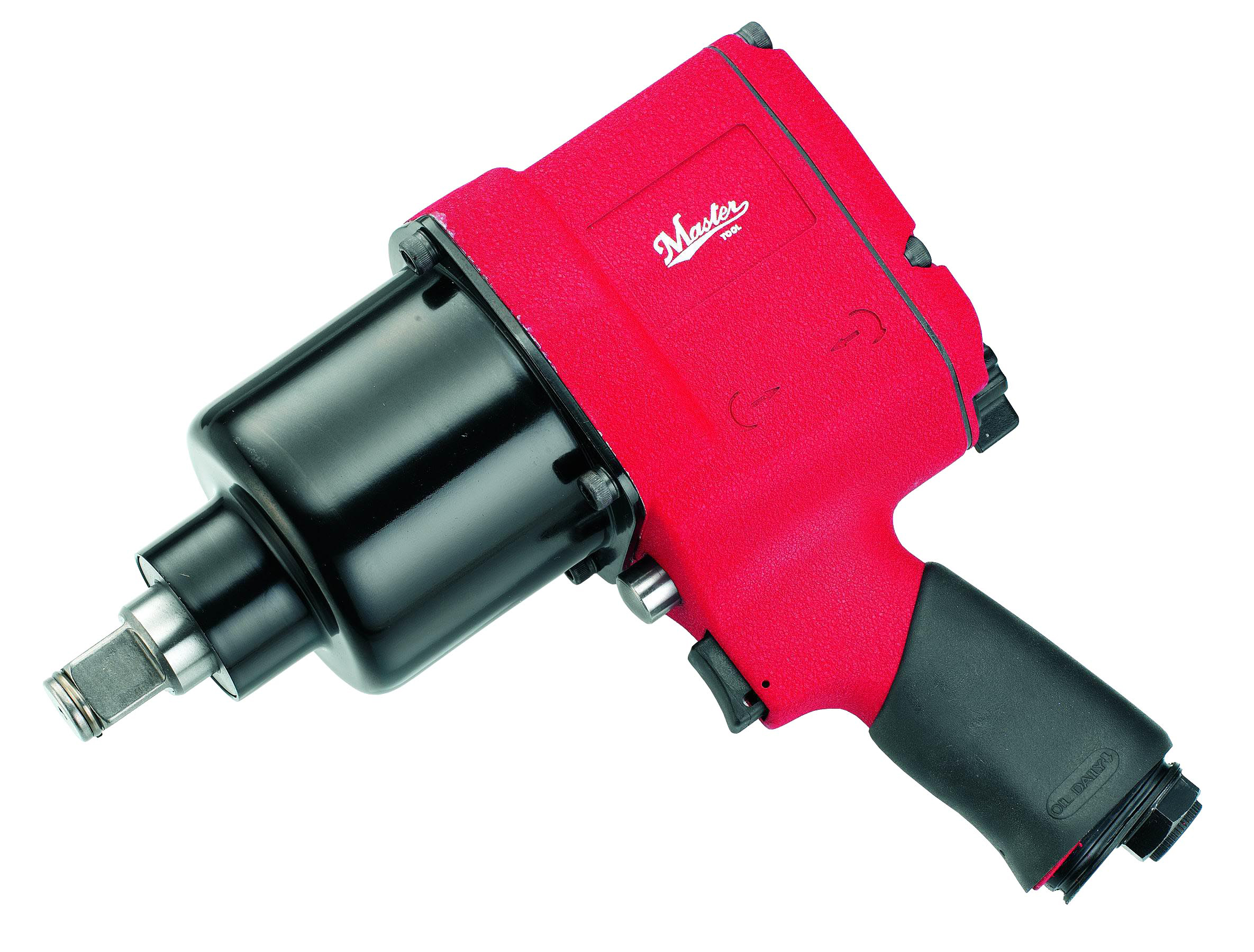

3/4" Impact Wrench Overview
This impact wrench is designed for heavy-duty industrial applications, featuring a twin hammer design that provides balanced, instantaneous blows for maximum torque delivery. Its 3/4" square drive anvil ensures compatibility with a wide range of sockets. The tool includes a rubber jacket grip for enhanced handling and a speed control switch for precise operation.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 4000 RPM |
| Max Torque | 1250 ft-lb (1695 Nm) |
| 5 Sec Torque | 1000 ft-lb (1356 Nm) |
| Impacts Per Minute | 480 IPM |
| Air Pressure | 90 PSIA (6.2055 bar) |
| Air Consumption | 7.025 CFM (18.408 m³/min) |
| Weight | 14.3 lb (6.5 kg) |
| Overall Length | 10 in (254 mm) |
| Air Hose Size | 1/2 in (12.7 mm) |
| Horsepower | 0.45 HP (0.3375 kW) |
| Item No. | 68320 |
|---|---|
| Free Speed / RPM | 4000 |
| Air Consumption / SCFM | 50 |
| Air Consumption / CFM | 7.025 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 10 |
| Overall Length / mm | 254 |
| Weight / lb | 14.3 |
| Weight / kg | 6.5 |
| Exhaust | Side |
| Noise / dBA | 90 |
| Air Hose Size / inch | 1/2 |
| Air Hose Size / mm | 12.7 |
| Horsepower | 0.45 |
| kW | 0.3375 |
| Square Drive / inch | 1 |
| Max Torque / ft-lb | 1250 |
| Max Torque / Nm | 1695 |
| 5 Sec Torque / ft-lb | 1000 |
| 5 Sec Torque / Nm | 1356 |
| Impact Type | twin hammer |
| Impact Per Minute | 480 |
Key Features
- Twin Hammer Design: Provides the most durable hammer mechanism for heavy-duty industrial tasks with balanced, instantaneous blows.
- 3/4" Square Drive Anvil: Compatible with standard sockets for versatile use.
- Rubber Jacket Grip: Enhances operator control and holding strength during operation.
- Speed Control Switch: Allows precise adjustment of operating speed to match job requirements.
Applications
Applications
Engineered for demanding industrial environments, this impact wrench excels in heavy-duty fastening and loosening tasks. Its robust twin hammer design and ergonomic grip make it ideal for factory use, maintenance, and assembly lines requiring reliable torque delivery and operator comfort.
