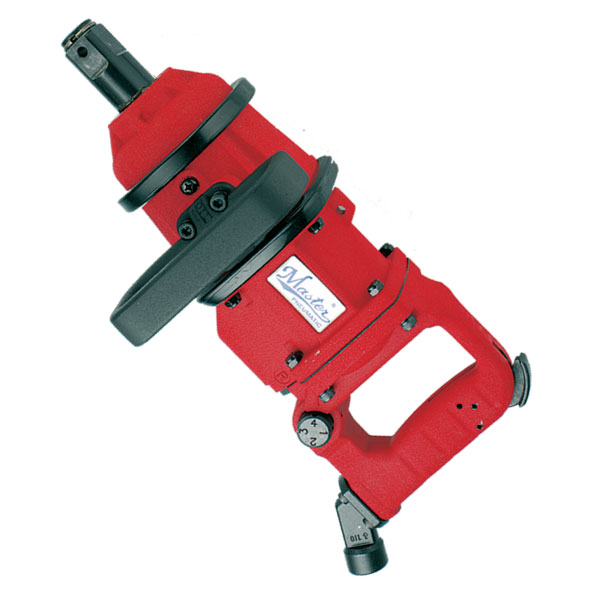

Industrial Grade 1" Impact Wrench
The 1" Impact Wrench with D-Handle and Short Anvil is engineered for demanding industrial environments. Its twin hammer mechanism ensures balanced, instantaneous impacts for maximum durability and power. The ergonomic D-handle includes a simple speed control switch and an easy trigger for precise operation. Designed for factory use, this tool provides compact power with a lightweight build and optimized speed.
Its short anvil design allows access to tighter spaces without compromising torque delivery. The wrench supports heavy-duty applications requiring reliable, consistent performance under rigorous conditions.
| Item No. | 68350 |
|---|---|
| Free Speed / RPM | 3500 |
| Air Consumption / SCFM | 50 |
| Air Consumption / CFM | 7.025 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 14.37007874 |
| Overall Length / mm | 365 |
| Weight / lb | 14.52 |
| Weight / kg | 6.6 |
| Exhaust | Side |
| Noise / dBA | 83 |
| Air Hose Size / inch | 1/2 |
| Air Hose Size / mm | 12.7 |
| Horsepower | 0.75 |
| kW | 0.5625 |
| Square Drive / inch | 1" |
| Max Torque / ft-lb | 1850 |
| Max Torque / Nm | 2508.6 |
| 5 Sec Torque / ft-lb | 1320 |
| 5 Sec Torque / Nm | 1789.92 |
| Impact Type | twin hammer |
| Impact Per Minute | 600 |
Key Features
- Operable vibration within +/-10 degree range for user comfort
- Ergonomic D-handle with simple speed control switch
- Lighter weight and faster speed compared to similar models
- Super powerful motor driving a 1" square drive twin hammer impact mechanism
- Free speed of 3500 RPM for efficient operation
Applications
Applications
- Twin Hammer Design: Provides the most durable hammer mechanism for heavy-duty industrial jobs with balanced instantaneous blows.

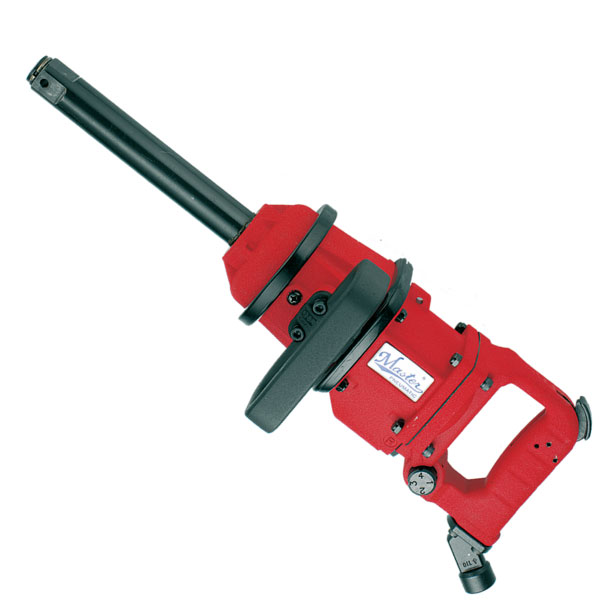

- Speed Control: Industrial-grade long anvil design enables access to deeper spaces for precise task execution.
- Extra Side D-Handle: Offers additional support during operation of this heavy-duty impact wrench.
- Easy Trigger Control: On/off trigger located on top of the D-handle for convenient tool activation while maintaining grip.
