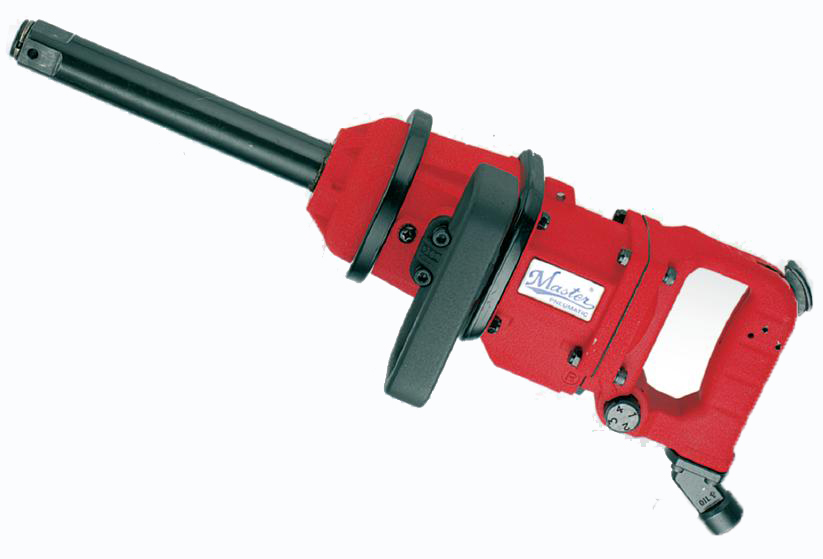

Industrial-Grade Impact Wrench
The 1" Impact Wrench (D-Handle, Long Anvil) is built for demanding factory environments requiring compact power and durability. Featuring a 1” square drive twin hammer gear mechanism, it delivers robust torque and reliable performance.
Design and Control
The long anvil design enables access to recessed areas, enhancing operational flexibility. A rotatable speed control switch allows precise adjustment of tool speed, while the ergonomically placed trigger on the D-handle ensures easy on/off control during use.
Performance Specifications
This impact wrench operates at a free speed of 2500 rpm, with a maximum torque of 2100 ft-lb and impacts per minute of 700, making it suitable for heavy industrial fastening tasks.
| Item No. | 68360L |
|---|---|
| Free Speed / RPM | 2500 |
| Air Consumption / SCFM | 50 |
| Air Consumption / CFM | 7.025 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 20.27559055 |
| Overall Length / mm | 515 |
| Weight / lb | 33 |
| Weight / kg | 15 |
| Exhaust | Side |
| Noise / dBA | 83 |
| Air Hose Size / inch | 1/2 |
| Air Hose Size / mm | 12.7 |
| Horsepower | 0.75 |
| kW | 0.5625 |
| Square Drive / inch | 1 |
| Max Torque / ft-lb | 2100 |
| Max Torque / Nm | 2847.6 |
| 5 Sec Torque / ft-lb | 1620 |
| 5 Sec Torque / Nm | 2196.72 |
| Impact Type | twin hammer |
| Impact Per Minute | 700 |
Key Features
- 1" square drive twin hammer gear for high torque output
- Industrial-grade long anvil design for deep space reach
- Rotatable speed control switch for variable speed operation
- Ergonomic D-handle with top-mounted trigger for easy control
- Free speed of 2500 rpm ensuring efficient performance
Applications
Applications
Designed for heavy-duty industrial use, this impact wrench is ideal for assembly lines, maintenance, and repair tasks requiring high torque and access to recessed fasteners. Its long anvil design supports operations in confined or deep spaces commonly found in factory settings.
