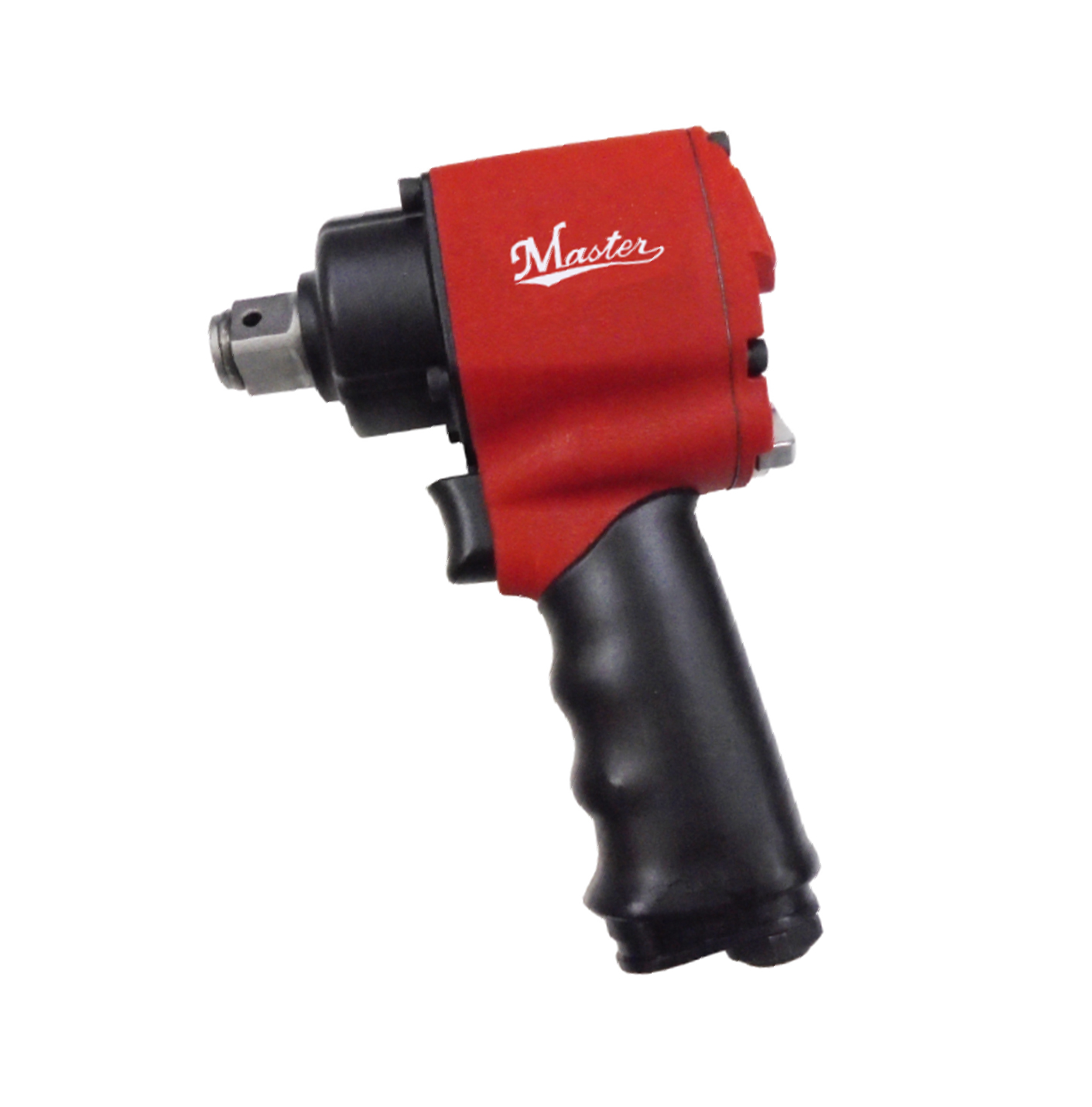

3/4" Mini Impact Wrench (Twin) Overview
The 3/4" Mini Impact Wrench (Twin) from the Balance Weight series is engineered for precision and durability in demanding industrial environments. Featuring a twin hammer mechanism, it delivers instantaneous balanced blows for maximum torque and control. Its oil-free design and lightweight aluminum housing make it reliable and easy to maintain, suitable for continuous factory operations.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 9000 RPM |
| Air Consumption | 10.24 SCFM / 7.2 CFM / 12.22 m³/hr / 0.2 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 5.75 in / 146 mm |
| Weight | 1.9 kg / 4.18 lb |
| Exhaust | Side |
| Noise Level | 87 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Square Drive | 3/4" / 19.1 mm |
| Max Torque | 1100 ft-lb / 1491 Nm |
| 5 Sec Torque | 860 ft-lb / 1166 Nm |
| Impacts Per Minute | 1500 IPM |
| Item No. | 68580 |
|---|---|
| Free Speed / RPM | 9000 |
| Air Consumption / SCFM | 10.24 |
| Air Consumption / CFM | 7.2 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 5.75 |
| Overall Length / mm | 146 |
| Weight / lb | 4.18 |
| Weight / kg | 1.9 |
| Exhaust | Side |
| Noise / dBA | 87 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Square Drive / inch | 3/4" |
| Max Torque / ft-lb | 1100 |
| Max Torque / Nm | 1491 |
| 5 Sec Torque / ft-lb | 860 |
| 5 Sec Torque / Nm | 1166 |
| Impact Per Minute | 1500 |
Key Features
- Durable twin hammer design delivers instantaneous balanced blows for heavy-duty industrial jobs.
- Oil-free operation with lightweight aluminum housing ensures readiness and longevity.
- Safety-driven reverse switch control prevents accidental direction changes.
- Extended holding comfort with vibration resistance for operator ease.
- Designed for maximum performance control and ease of maintenance.
Applications
Industrial Applications
The 3/4" Mini Impact Wrench (Twin) is engineered for demanding factory environments requiring compact power and durability. It is ideal for assembly lines, maintenance, and repair tasks where reliable torque and vibration control are critical for productivity and operator safety.
