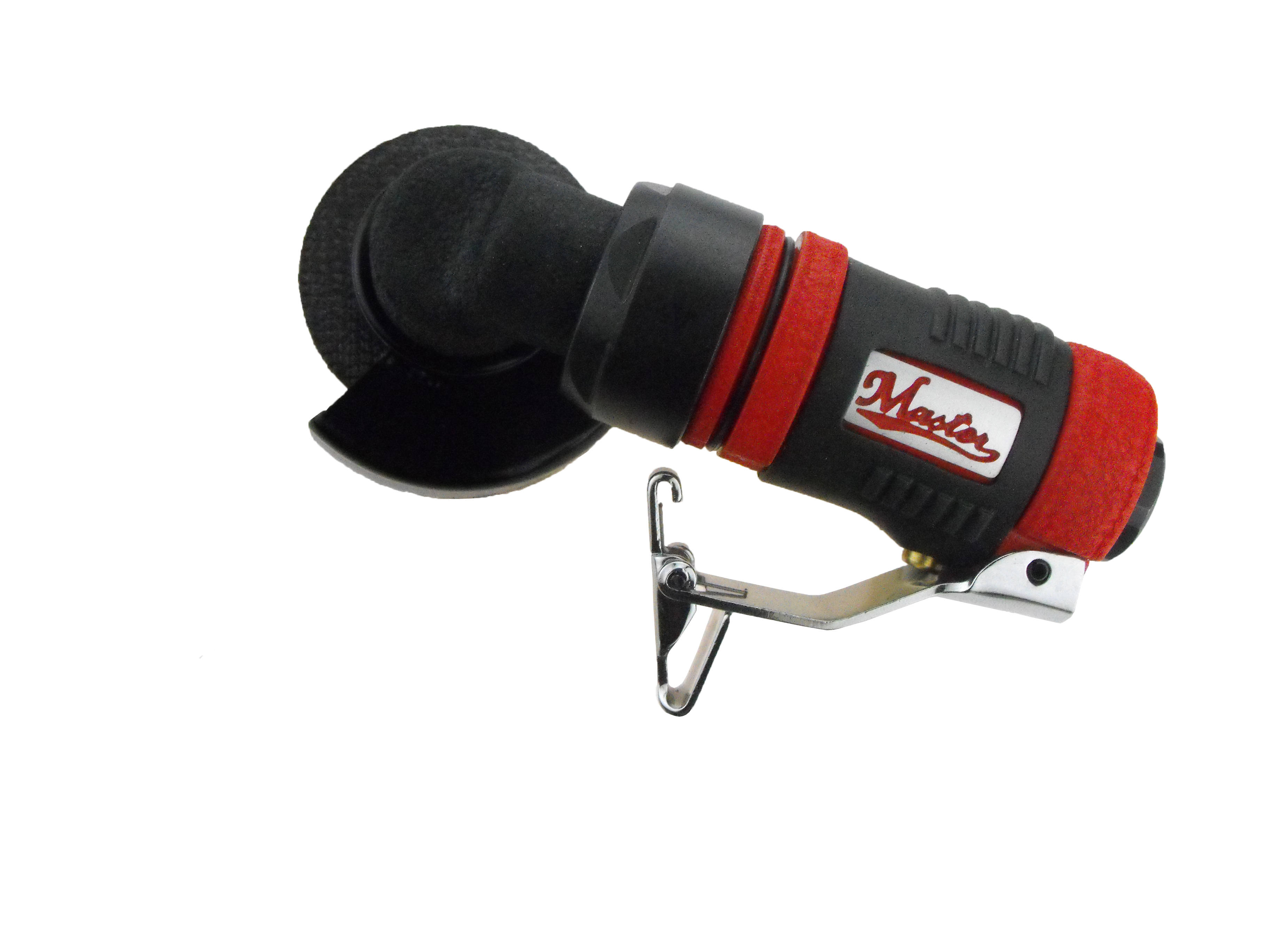

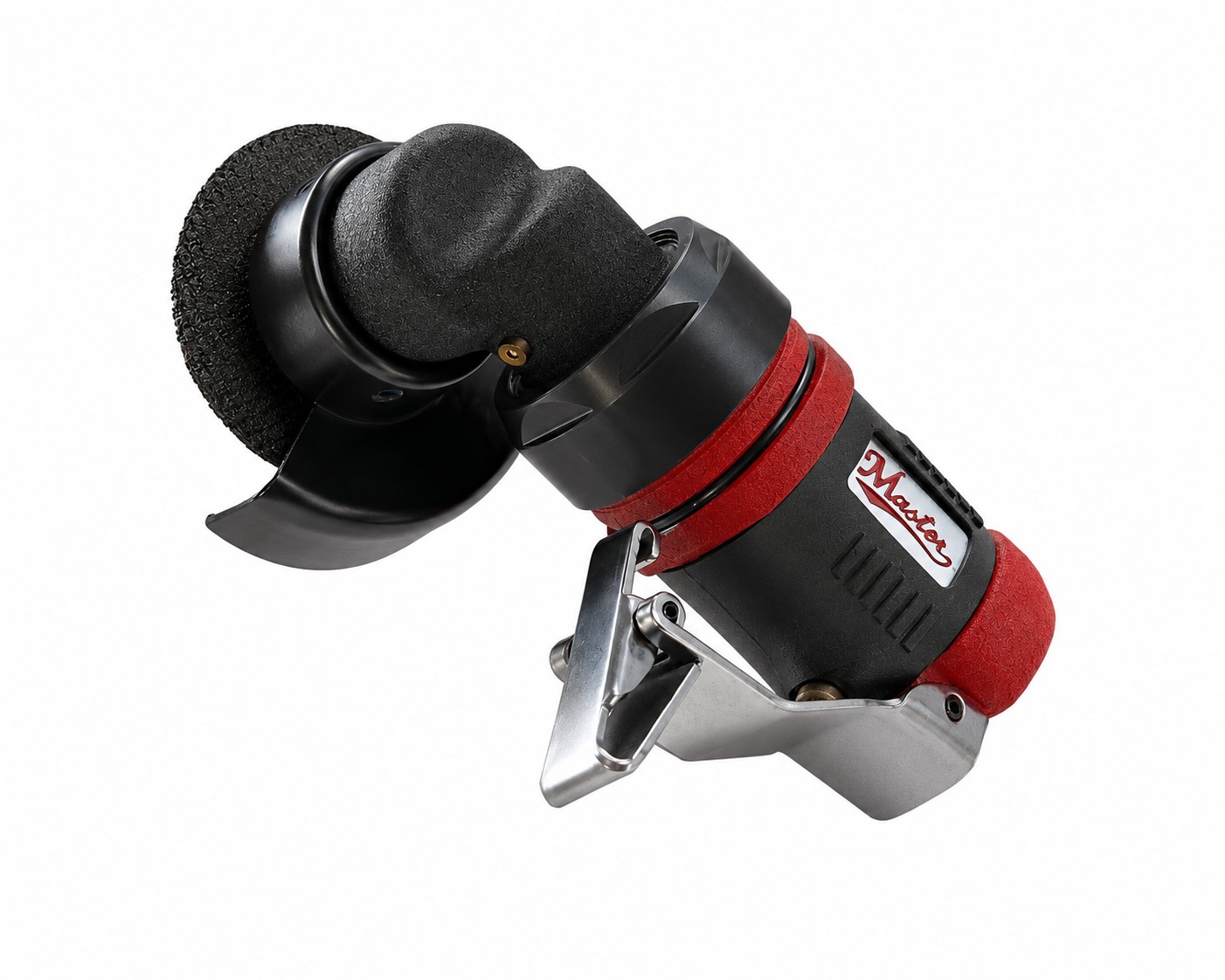

2" Right Angle Cut-off Tool Overview
This tool features a patented low profile angle palm mine series design, optimized for factory use. It operates at a free speed of 16500 rpm and includes an optional muffler (MSA-005A) to reduce noise during operation. Its compact size and rear exhaust make it suitable for demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 16500 rpm |
| Air Consumption | 12 SCFM / 1.86 CFM / 265.0752 m³/hr / 4.41792 m³/min |
| Air Pressure | 5.6248 kg/cm² / 80 PSIA / 5.516 bar / 551.6 kPa |
| Angle Height | 0.94488189 in / 24 mm |
| Overall Length | 4.330708661 in / 110 mm |
| Weight | 0.41 kg / 0.902 lb |
| Exhaust | Rear |
| Noise Level | 81 dBA |
| Air Hose Size | 3/16 in / 4.7625 mm |
| Horsepower | 0.25 HP |
| Power | 0.1875 kW |
| Disc/Wheel Size | 2 x 3/8 in / 50 x 9.5 mm |
| Item No. | 18030 |
|---|---|
| Free Speed / RPM | 16500 |
| Air Consumption / SCFM | 12 |
| Air Consumption / CFM | 1.86 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.516 |
| Angle Height / inch | 0.94488189 |
| Angle Height / mm | 24 |
| Overall Length / inch | 4.330708661 |
| Overall Length / mm | 110 |
| Weight / lb | 0.902 |
| Weight / kg | 0.41 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.25 |
| kW | 0.1875 |
| Disc Size / inch | 2X3/8 |
| Disc Size / mm | 50X9.5 |
Key Features
- Patented low profile angle palm mine series design for compact power and precision
- Free speed of 16500 rpm for efficient cutting performance
- Optional muffler MSA-005A available to reduce operational noise
- Rear exhaust design for improved user comfort and safety
- Lightweight construction at 0.41 kg (0.902 lb) for ease of handling
Applications
Industrial Applications
Designed for heavy-duty factory use, this 2" right angle cut-off tool is ideal for precision cutting tasks in confined spaces. Its compact size and durable construction make it suitable for assembly lines, maintenance operations, and other industrial environments requiring reliable pneumatic cutting solutions.
