Overview

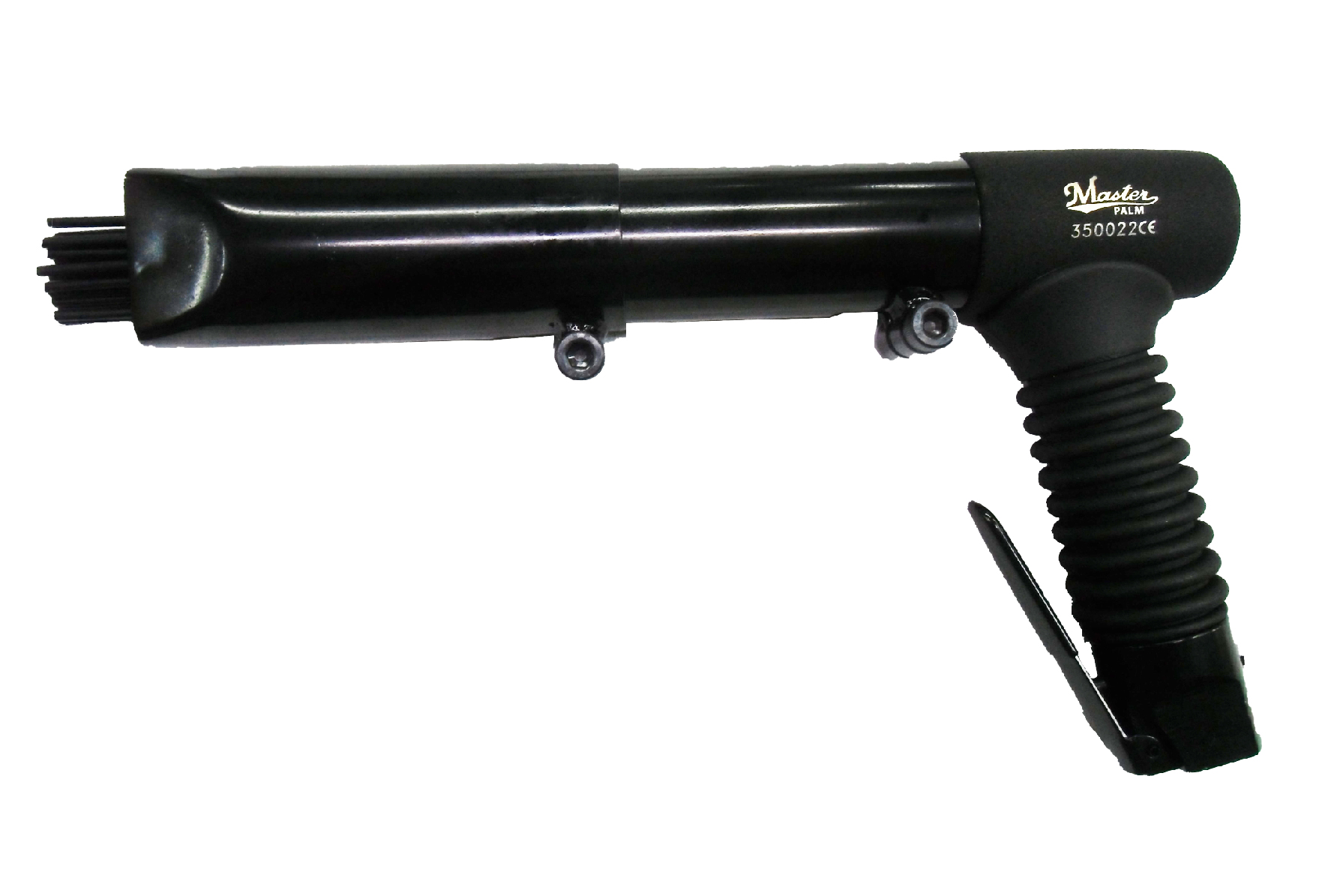

The Pistol Grip Needle Scaler is engineered for industrial use, providing reliable rust and scale removal on steel surfaces. Its robust pneumatic design ensures consistent performance in demanding factory and field environments.
Technical Specifications
| Specification | Value |
|---|---|
| Strokes Per Minute | 3200 BPM |
| Air Consumption | 14.22 SCFM / 10 CFM / 16.98 m³/hr / 0.28 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 11.02 in / 280 mm |
| Weight | 2.8 kg / 6.17 lb |
| Exhaust | Rear |
| Noise Level | 98 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Item No. | 11450 |
|---|---|
| Strokes Per Minute | 3200 |
| Air Consumption / SCFM | 14.22 |
| Air Consumption / CFM | 10 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 11.02 |
| Overall Length / mm | 280 |
| Weight / lb | 6.17 |
| Weight / kg | 2.8 |
| Exhaust | Rear |
| Noise / dBA | 98 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
Key Features
- Optional 2mm needle holder accommodating 29 needles for versatile scaling tasks.
- Superior internal spring components enhance durability under heavy industrial use.
- Effective removal of coatings, corrosion, rust, and scale from steel structures.
- Sturdy and simple design suitable for wide industrial applications.
- Rear exhaust design reduces operator discomfort during extended use.
Applications
Applications
- Heavy rust and scale removal on steel structures including bridges, ships, and offshore platforms.
- Surface preparation for painting and coating removal.
- Cleaning and stress relieving of weld seams and joints.
- Industrial maintenance and refurbishment tasks requiring durable pneumatic tools.
