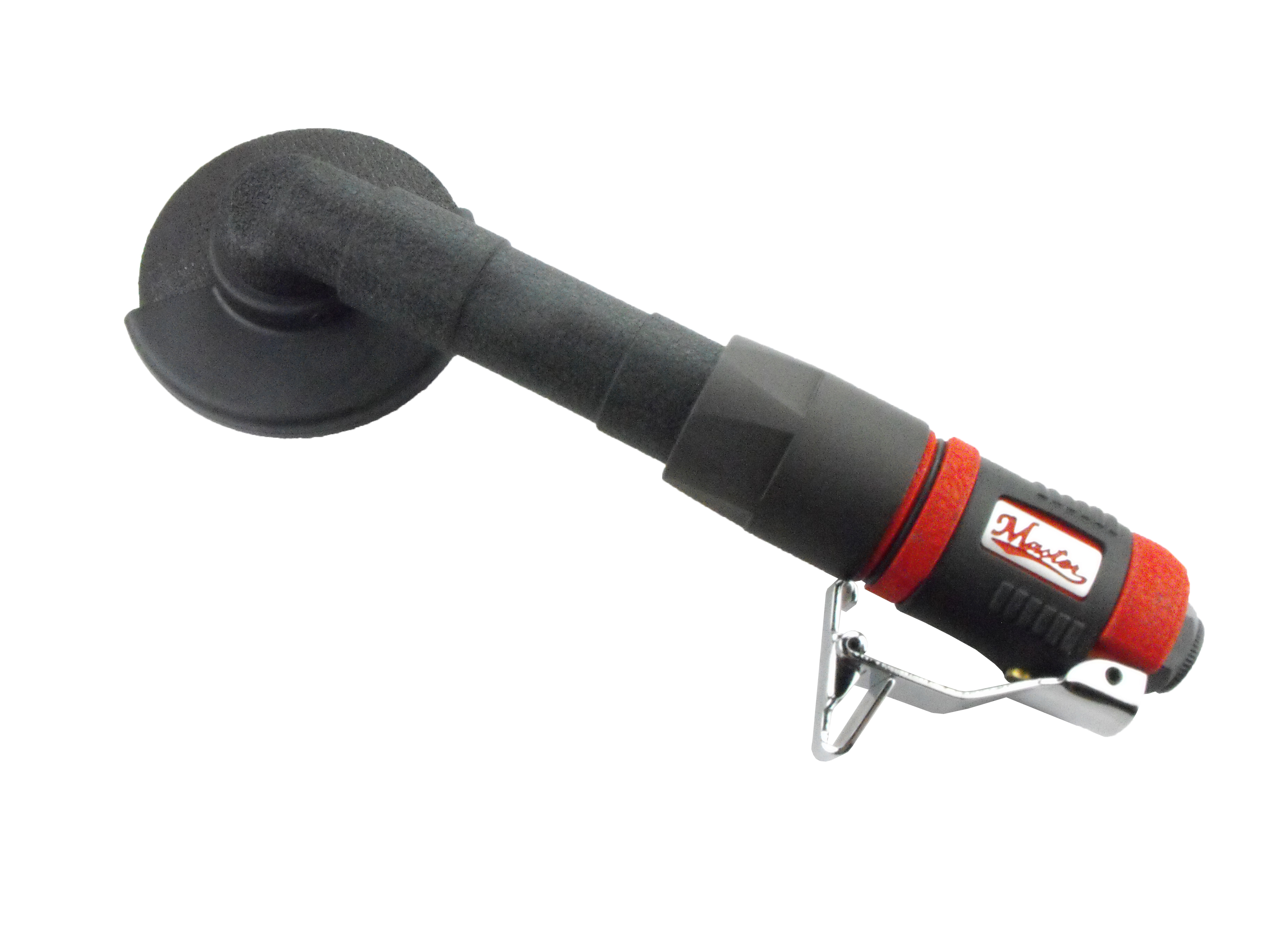

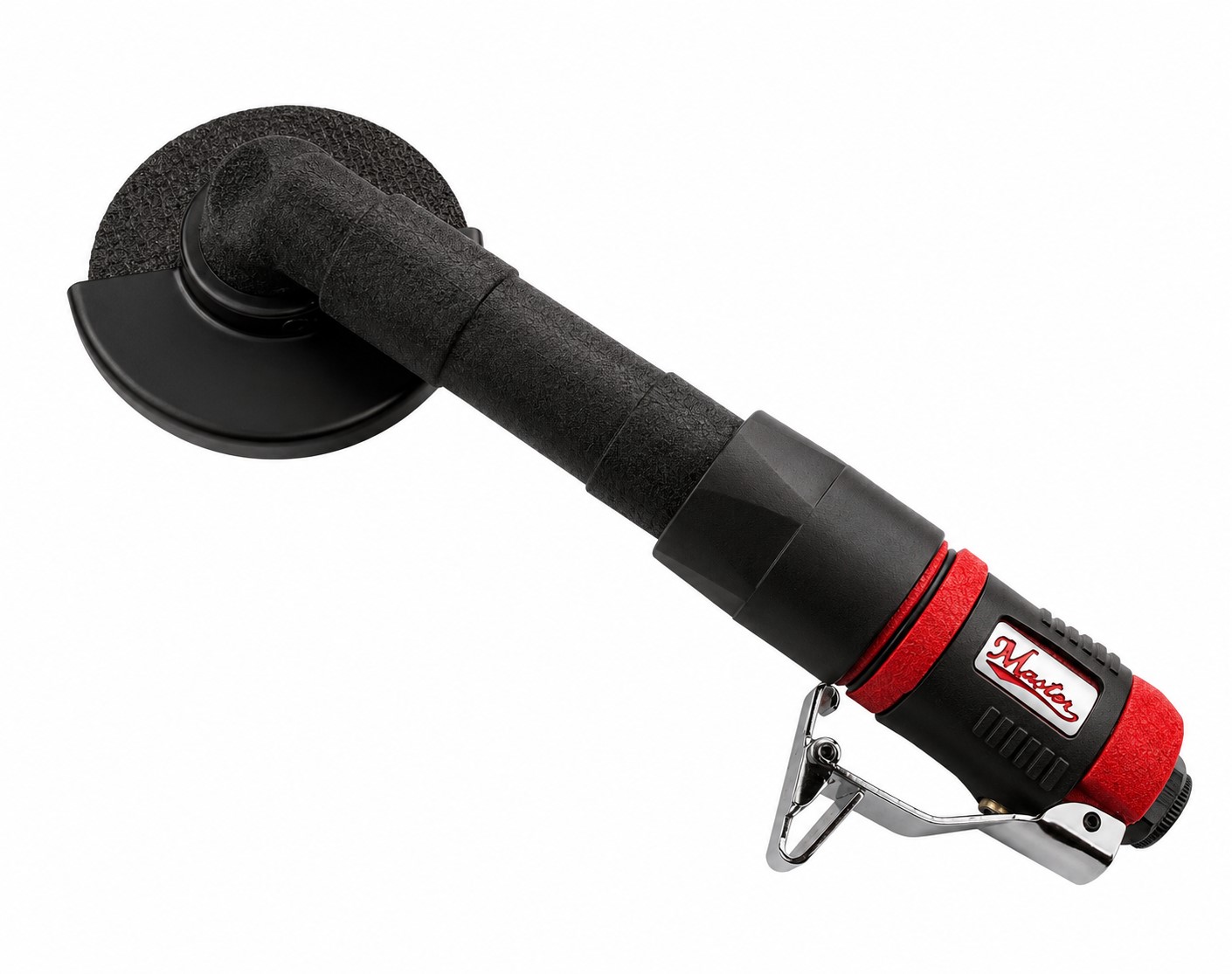

3" Right Angle Cut-off Tool Overview
This tool features a low profile angle palm mini design with a 3" extensive shaft, optimized for industrial cutting tasks requiring precision and durability. It operates at a free speed of 19000 rpm and supports an optional muffler (MSA-005A) to reduce noise levels.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 19000 rpm |
| Air Consumption | 1.686 CFM / 12 SCFM / 4.41792 m³/min |
| Air Pressure | 90 PSIA / 6.2055 bar / 620.55 kPa |
| Angle Height | 24 mm (0.94488 in) |
| Overall Length | 220 mm (8.6614 in) |
| Weight | 0.49 kg (1.078 lb) |
| Exhaust | Rear |
| Noise Level | 81 dBA |
| Air Hose Size | 1/4 in (6.35 mm) |
| Horsepower | 0.3 HP (0.225 kW) |
| Disc/Wheel Size | 3" x 3/8" (75 x 9.5 mm) |
| Item No. | 18060 |
|---|---|
| Free Speed / RPM | 19000 |
| Air Consumption / SCFM | 12 |
| Air Consumption / CFM | 1.686 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Angle Height / inch | 0.94488189 |
| Angle Height / mm | 24 |
| Overall Length / inch | 8.661417323 |
| Overall Length / mm | 220 |
| Weight / lb | 1.078 |
| Weight / kg | 0.49 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 1/4 |
| Air Hose Size / mm | 6.35 |
| Horsepower | 0.3 |
| kW | 0.225 |
| Disc Size / inch | 3X3/8 |
| Disc Size / mm | 75X9.5 |
Key Features
- Low profile angle palm mini series design for enhanced maneuverability
- 3" extensive shaft for improved reach in tight spaces
- High free speed of 19000 rpm for efficient cutting performance
- Optional muffler MSA-005A available to reduce operational noise
- Durable construction suitable for rigorous factory use
Applications
Applications
Engineered for industrial environments, this right angle cut-off tool is ideal for precision cutting tasks in manufacturing, assembly lines, and maintenance operations where compact power and durability are critical.
