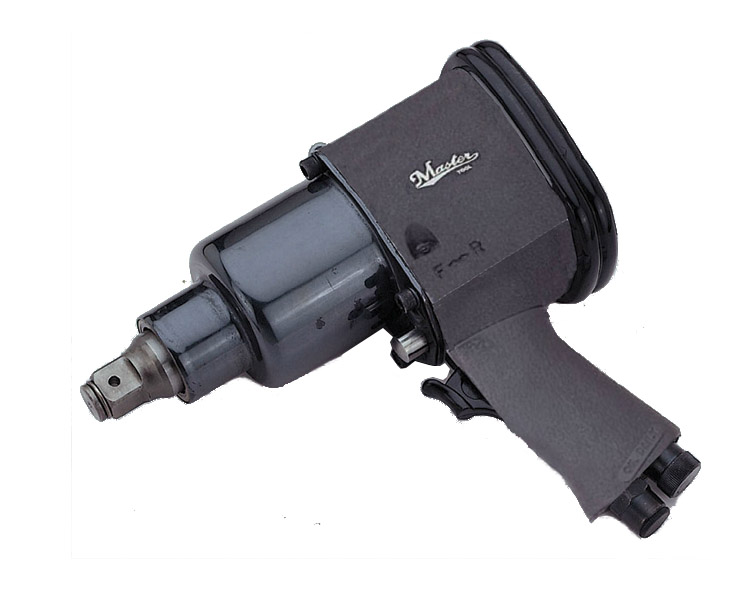

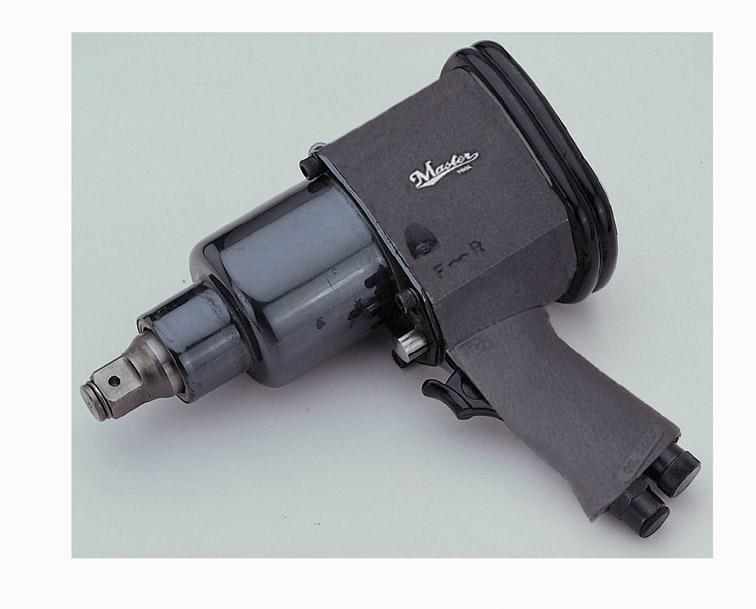

3/4" Impact Wrench Overview
This pneumatic impact wrench offers robust performance with a 3/4" square drive and a twin hammer impact mechanism. Engineered for durability and ease of use, it features an easy trigger design to prevent slippage and a reversible direction press button for efficient socket changes.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 4800 rpm |
| Air Consumption | 7.025 CFM / 50 SCFM |
| Air Pressure | 6.2 bar / 90 PSIA |
| Overall Length | 246 mm (9.685 in) |
| Weight | 5 kg (11 lb) |
| Noise Level | 92 dBA |
| Air Hose Size | 3/8 in (9.525 mm) |
| Horsepower | 0.35 HP |
| Power | 0.2625 kW |
| Square Drive | 3/4 in (19.05 mm) |
| Max Torque | 1000 ft-lb (1356 Nm) |
| 5 Sec Torque | 950 ft-lb (1288.2 Nm) |
| Impact Type | Twin hammer |
| Impacts Per Minute | 720 IPM |
| Item No. | 61250 |
|---|---|
| Free Speed / RPM | 4800 |
| Air Consumption / SCFM | 50 |
| Air Consumption / CFM | 7.025 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 9.68503937 |
| Overall Length / mm | 246 |
| Weight / lb | 11 |
| Weight / kg | 5 |
| Exhaust | Side |
| Noise / dBA | 92 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.35 |
| kW | 0.2625 |
| Square Drive / inch | 3/4 |
| Max Torque / ft-lb | 1000 |
| Max Torque / Nm | 1356 |
| 5 Sec Torque / ft-lb | 950 |
| 5 Sec Torque / Nm | 1288.2 |
| Impact Type | twin hammer |
| Impact Per Minute | 720 |
Key Features
- 3/4" square drive for heavy-duty fastening
- Free speed of 4800 rpm for efficient operation
- Twin hammer impact mechanism for durability and power
- Easy trigger design to prevent user slippage and provide feather control
- Reversible design with direction press button for quick socket changes
Applications
Applications
- Industrial assembly lines requiring high torque fastening
- Maintenance and repair in factory environments
- Heavy machinery and equipment fastening
- Situations demanding reliable and compact pneumatic tools
