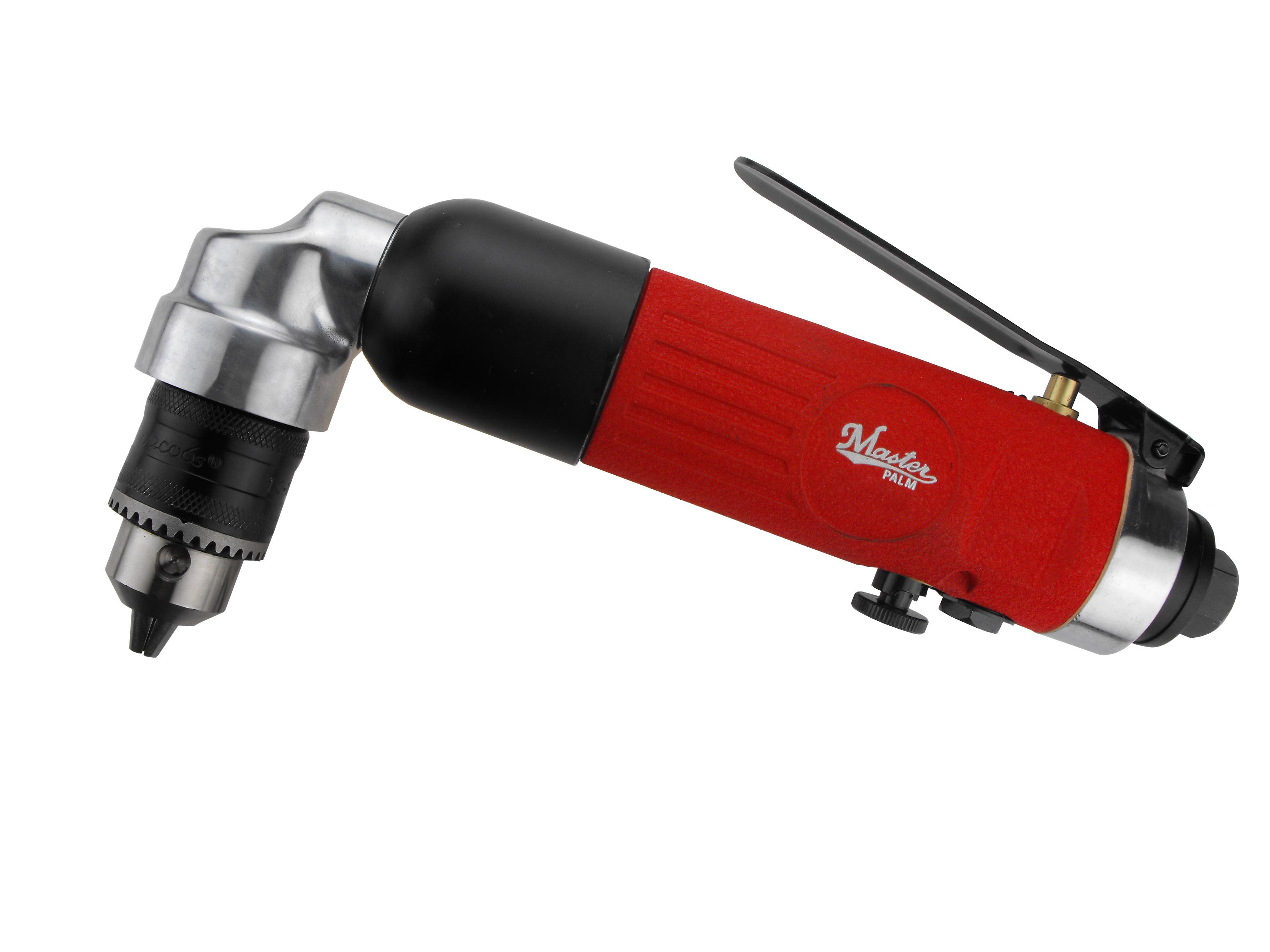

3/8" Right Angle Drill (Heavy Duty)
This heavy-duty right angle drill is designed for precision and durability in factory environments. Its low-profile 90-degree head allows access to confined corners and tight spaces where standard drills cannot reach. Equipped with a two-gear drive system, it ensures reliable performance and ease of operation.
The drill features convenient reverse valves for simple forward and reverse direction changes, enhancing operational efficiency. Its compact size and ergonomic design reduce operator fatigue during extended use.
| Specification | Value |
|---|---|
| Free Speed | 1700 RPM |
| Air Consumption | 18 SCFM / 2.53 CFM / 397.61 m³/hr / 6.63 m³/min |
| Air Pressure | 6.32 kg/cm² / 90 PSIA / 6.21 bar / 620.55 kPa |
| Angle Height | 1.5 in / 38 mm |
| Overall Length | 8.5 in / 216 mm |
| Weight | 0.58 kg / 1.28 lb |
| Exhaust | Rear |
| Noise Level | 81 dBA |
| Air Hose Size | 3/8 in / 9.52 mm |
| Horsepower | 0.5 HP |
| Power | 0.38 kW |
| Chuck Size | 3/8 in / 10 mm |
| Spindle Thread | 3/8-24T |
| Item No. | 28500 |
|---|---|
| Free Speed / RPM | 1700 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.53 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.21 |
| Angle Height / inch | 1.5 |
| Angle Height / mm | 38 |
| Overall Length / inch | 8.5 |
| Overall Length / mm | 216 |
| Weight / lb | 1.28 |
| Weight / kg | 0.58 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.52 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Chuck Size / inch | 3/8 |
| Chuck Size / mm | 10 |
| Spindle Thread | 3/8-24T |
Features
- 90-degree right angle head for access to confined and hard-to-reach areas
- Convenient reverse valves for easy forward and reverse operation
- Low-profile design for compactness and ease of use
- Two-gear drive system for enhanced tool performance and control
- Rear exhaust to direct air away from the operator
- Lightweight construction at 0.58 kg (1.28 lb) for reduced operator fatigue
Applications
Applications
- Screw driving and drilling in tight corners and confined spaces
- Industrial assembly lines requiring compact and durable air tools
- Factory maintenance and repair tasks in restricted access areas
- Operations demanding reliable forward and reverse drilling control
