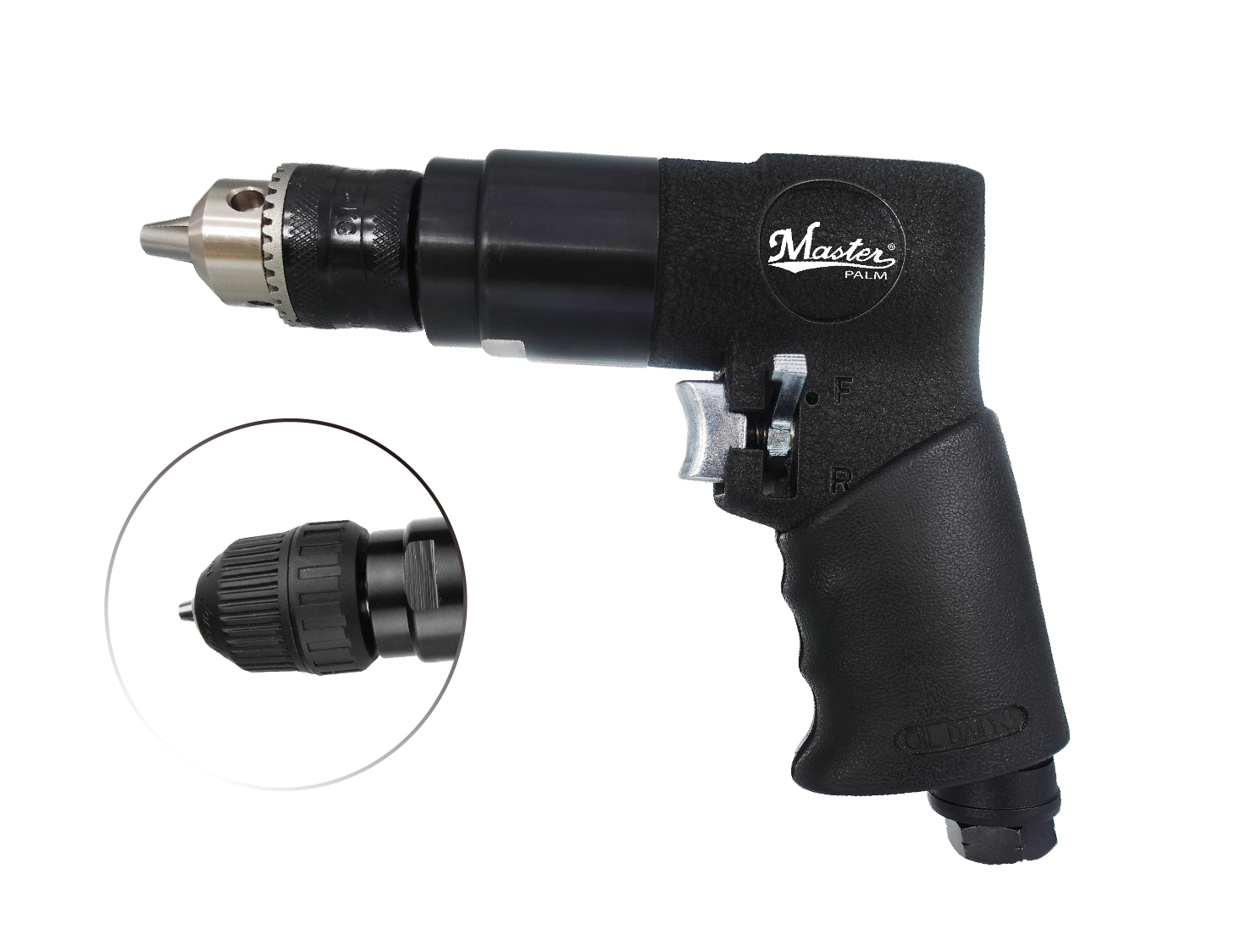

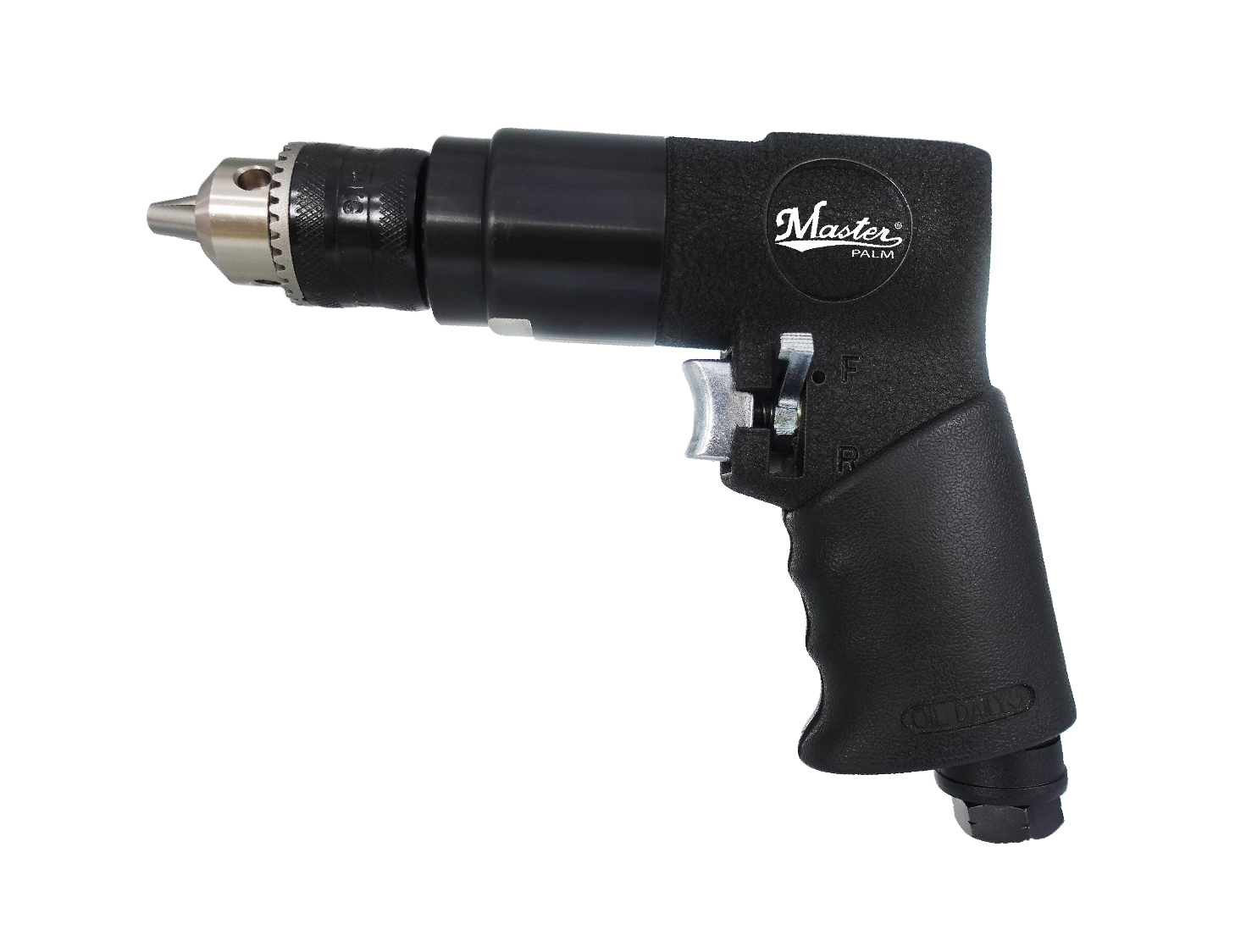

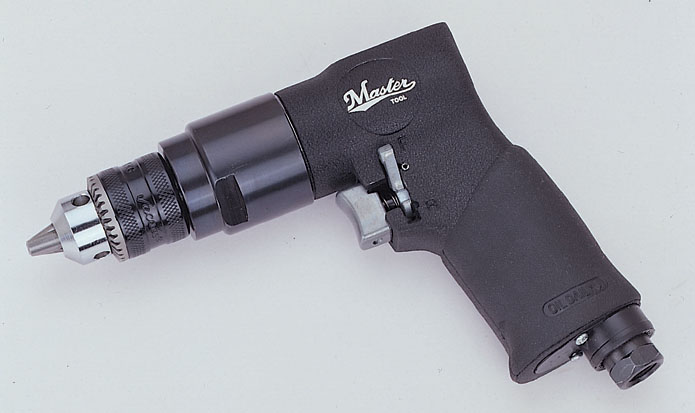

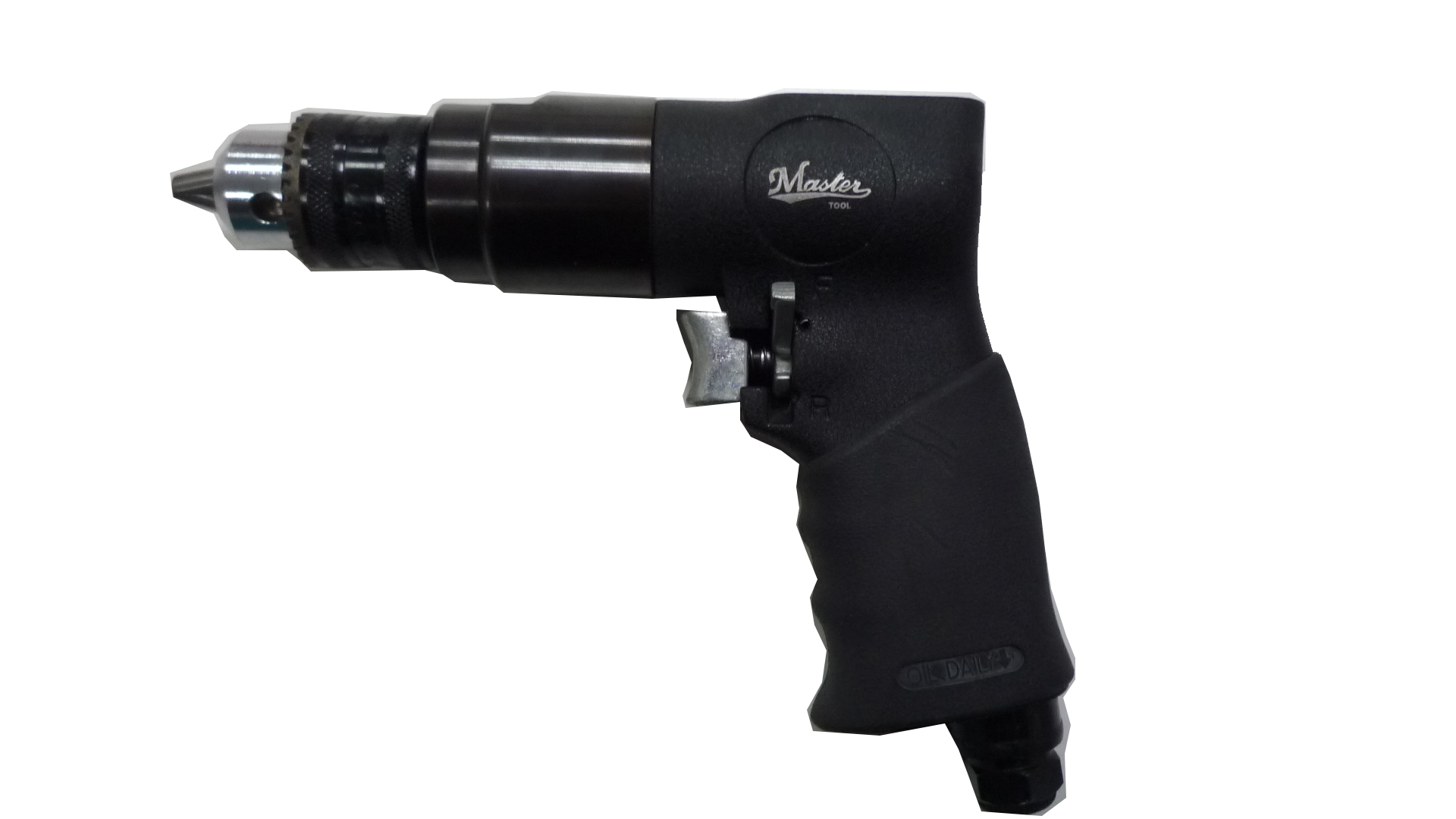

3/8" H.D. Rev. Air Drill Overview
The 3/8" H.D. Rev. Air Drill is engineered for industrial applications requiring durability and precision. Equipped with a Jacobs super chuck ball bearing keyed chuck, it ensures tight tolerance production drilling. The ergonomic palm curve tail design enhances push point strength and control, complemented by a side handle for added stability. The drill allows easy switching between reverse and forward directions to accommodate various operational needs.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 2000 RPM |
| Air Consumption | 19.1 SCFM / 13.4 CFM / 22.75 m³/hr / 0.38 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 7.87 in / 200 mm |
| Weight | 1.5 kg / 3.3 lb |
| Exhaust | Side |
| Noise Level | 82 dBA |
| Air Hose Size | 3/8" in / 9.5 mm |
| Horsepower | 0.5 HP / 0.38 kW |
| Chuck Size | 3/8" in |
| Spindle Thread | 3/8"-24T |
| Item No. | 21570 |
|---|---|
| Free Speed / RPM | 2000 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 7.87 |
| Overall Length / mm | 200 |
| Weight / lb | 3.3 |
| Weight / kg | 1.5 |
| Exhaust | Side |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Chuck Size / inch | 3/8" |
| Spindle Thread | 3/8"-24T |
Key Features
Jacobs super chuck ball bearing keyed chuck is engineered for heavy-duty, tight tolerance production drilling. The palm curve tail design provides easy push point strength with side handle. Easy to switch between reverse or forward direction.
Applications
Industrial Applications
Designed for factory and industrial environments, the 3/8" H.D. Rev. Air Drill is suitable for precision drilling tasks requiring durability and ergonomic handling. Its reversible function supports versatile production line operations and maintenance tasks.
