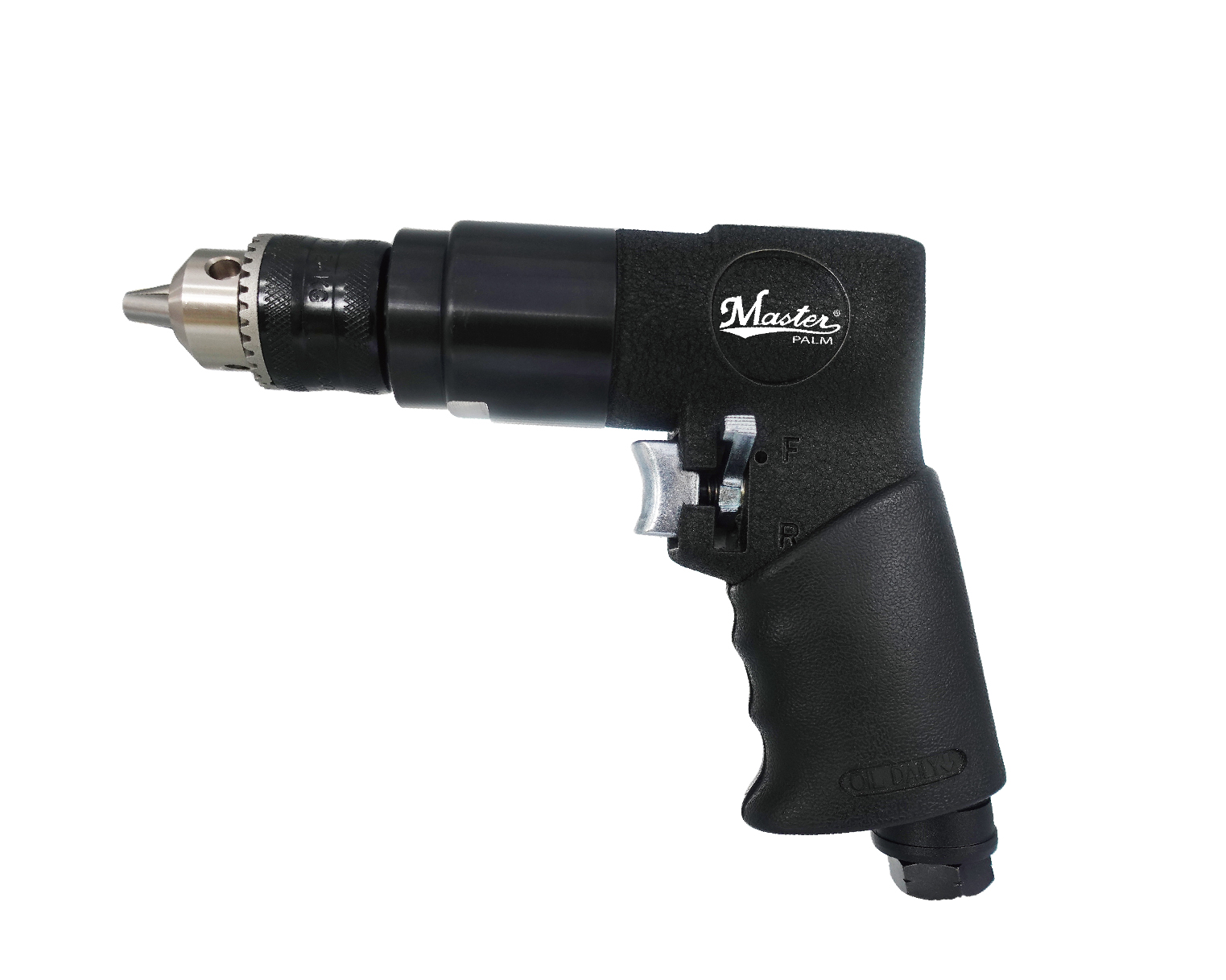

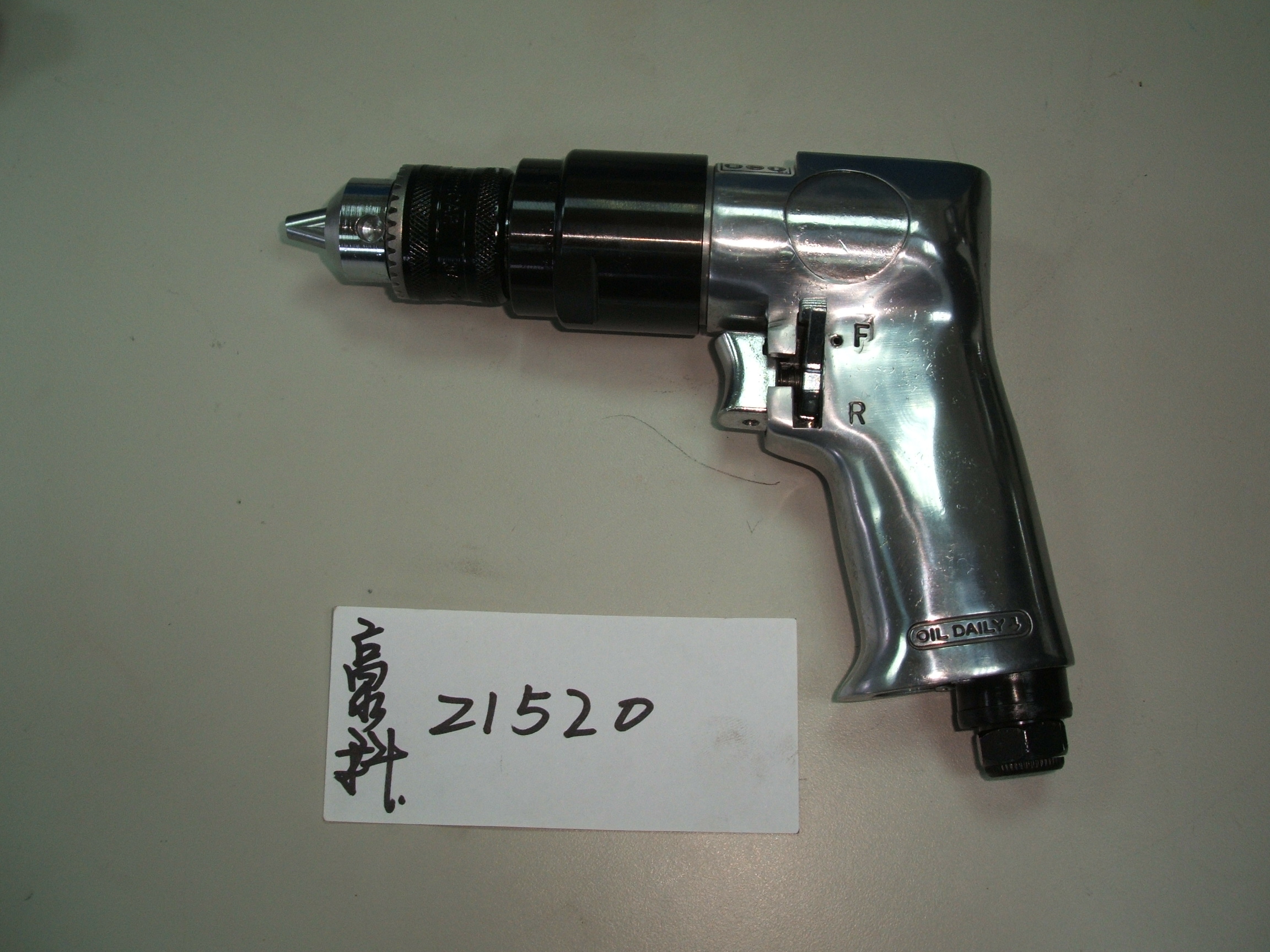

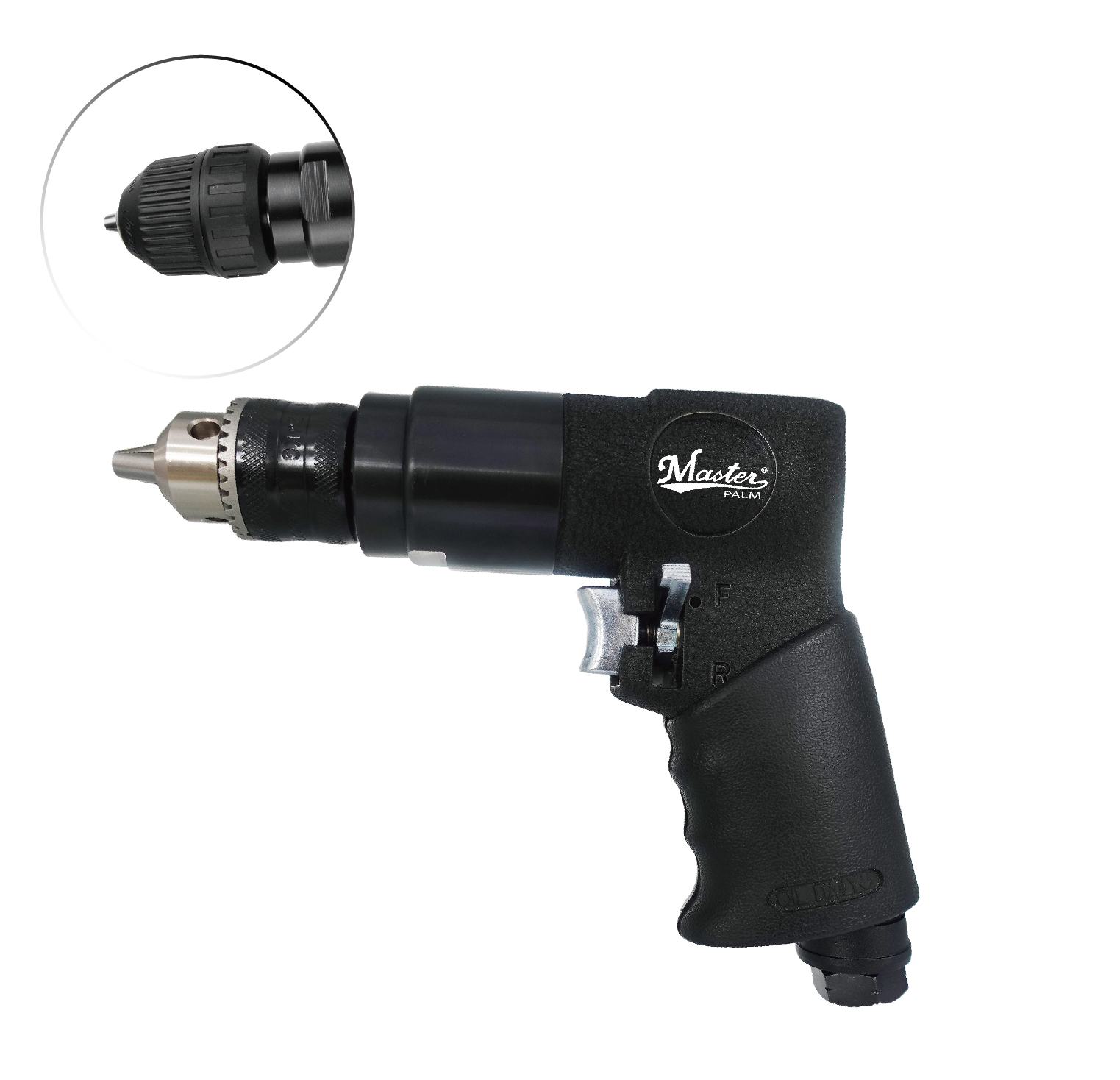

3/8" Reversible Air Drill Overview
The 3/8" Reversible Air Drill is designed for industrial applications requiring precision and durability. Equipped with a Jacobs super chuck ball bearing keyed chuck, it ensures tight tolerance drilling performance. The ergonomic palm curve tail design combined with a side handle provides optimal push point strength and control. The drill easily switches between reverse and forward directions to accommodate various operational needs.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 2000 RPM |
| Air Consumption | 19.1 SCFM / 13.4 CFM / 22.75 m³/hr / 0.38 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 7.87 in / 200 mm |
| Weight | 1.5 kg / 3.3 lb |
| Exhaust | Side |
| Noise Level | 82 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.5 HP |
| Power | 0.38 kW |
| Chuck Size | 3/8" |
| Spindle Thread | 3/8"-24T |
| Item No. | 21520 |
|---|---|
| Free Speed / RPM | 2000 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 7.87 |
| Overall Length / mm | 200 |
| Weight / lb | 3.3 |
| Weight / kg | 1.5 |
| Exhaust | Side |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Chuck Size / inch | 3/8" |
| Spindle Thread | 3/8"-24T |
Key Features
- Jacobs super chuck ball bearing keyed chuck engineered for heavy-duty, tight tolerance production drilling
- Ergonomic palm curve tail design for enhanced push point strength
- Side handle for improved control and stability during operation
- Easy switch between reverse and forward directions for versatile use
Applications
Applications
Designed for factory and industrial use, the 3/8" Reversible Air Drill is ideal for precision drilling tasks requiring durability and consistent performance in heavy-duty production environments.
