Overview

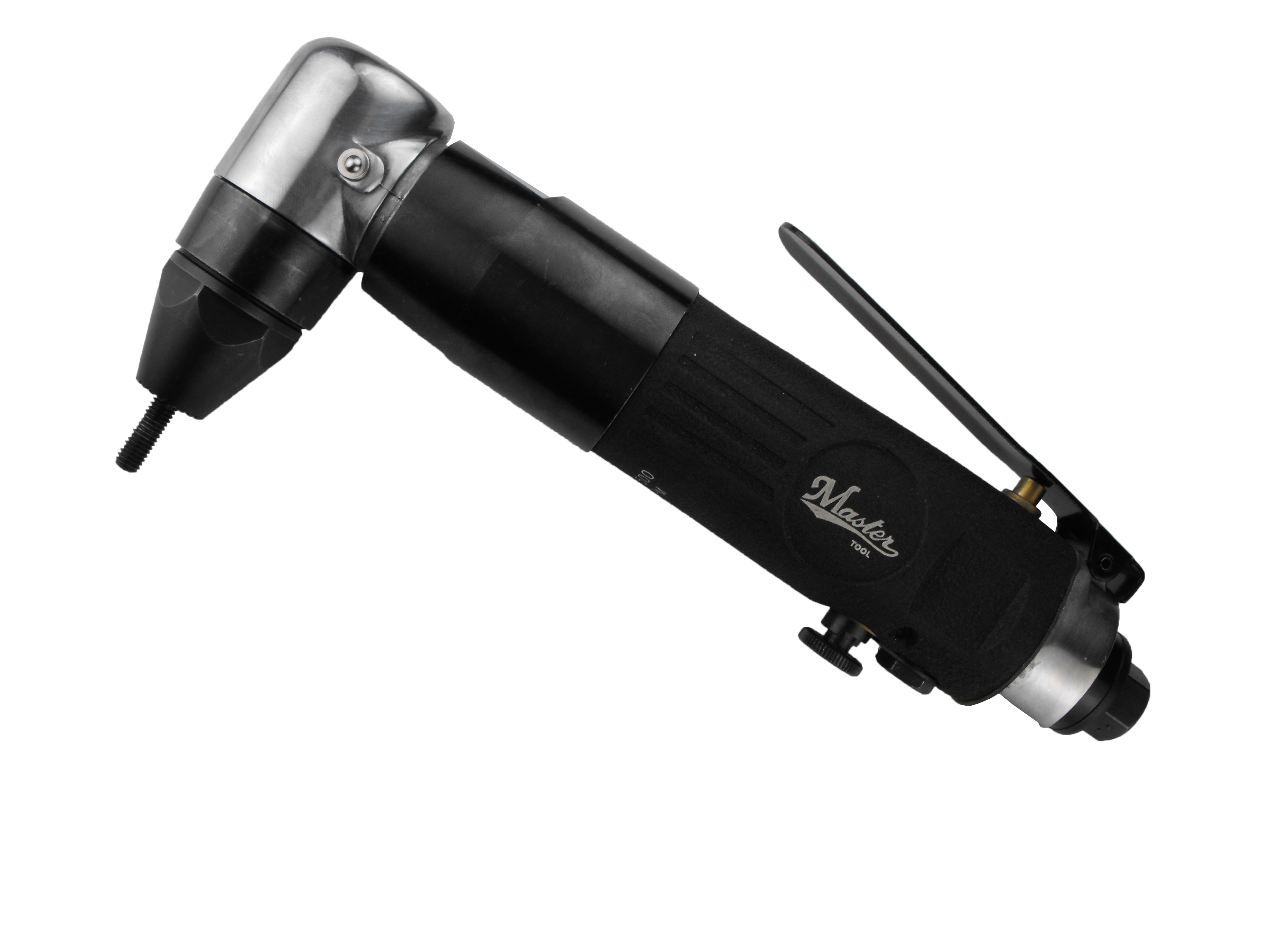

The M5 Right Angle Nut Pull Setter is engineered for precision nut installation in demanding factory environments. Its compact design integrates a reversible valve trigger for effortless directional control and a rear exhaust system that enhances tool performance and operator comfort.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 1700 RPM |
| Air Consumption | 18 SCFM / 2.79 CFM / 397.6 L/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Angle Height | 38 mm (1.496 in) |

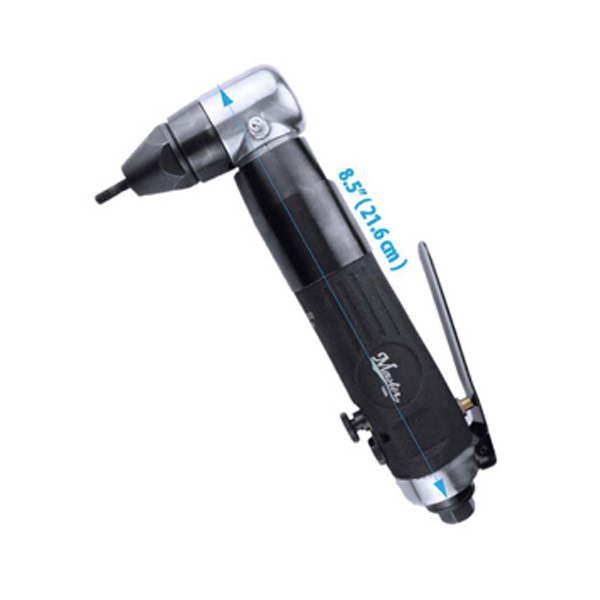

| Overall Length | 216 mm (8.5 in) |
| Weight | 0.81 kg (1.78 lb) |
| Exhaust | Rear |
| Noise Level | 81 dBA |
| Air Hose Size | 3/8 in (9.5 mm) |
| Horsepower | 0.9 HP |
| Power | 0.675 kW |
| Compatible Nut Sizes | Iron Round M3, M4, M5, M6; Iron Hex M3, M4, M5; Stainless Round M3, M4; Stainless Hex M3, M4 |
| Item No. | 71700 |
|---|---|
| Free Speed / RPM | 1700 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Angle Height / inch | 1.496062992 |
| Angle Height / mm | 38 |
| Overall Length / inch | 8.503937008 |
| Overall Length / mm | 216 |
| Weight / lb | 1.782 |
| Weight / kg | 0.81 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
Key Features
- Reversible Valve Design: Simple direction valve trigger enables quick and easy change of nut setter direction, enhancing operational flexibility.
- Rear Exhaust Design: Exhaust is routed to the rear to improve performance and reduce operator exposure to exhaust air.
Applications
Applications
Designed for industrial nut installation, the M5 Right Angle Nut Pull Setter is ideal for factory use where compact power and durability are essential. Its reversible valve and rear exhaust features support efficient fastening in confined or hard-to-reach areas.
