Product Overview

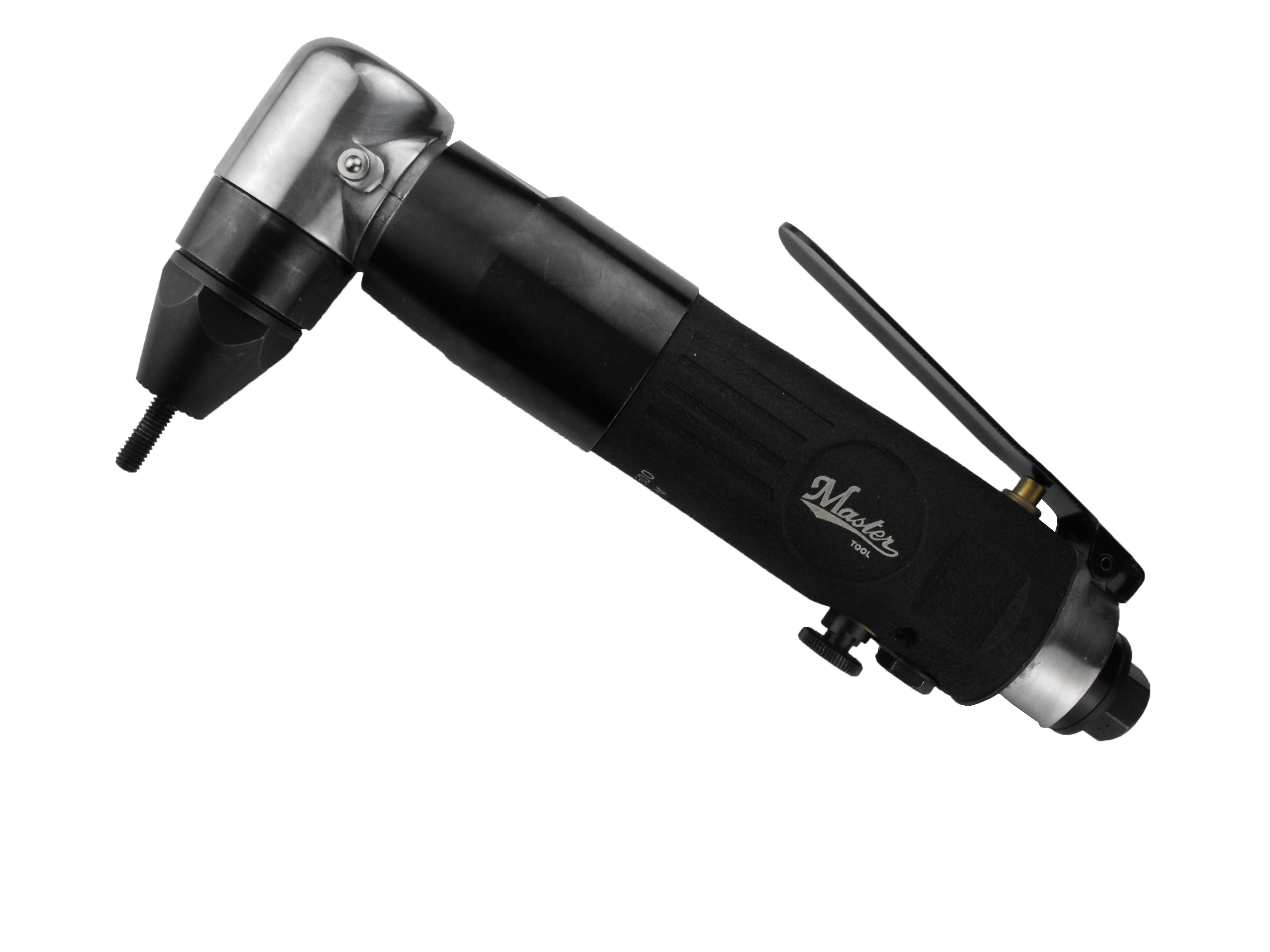

The M8 Right Angle Nut Pull Setter is engineered for precision nut installation in industrial environments. Its reversible valve design allows users to easily switch the tool's operational direction, enhancing workflow efficiency. The rear exhaust system improves performance by directing air away from the operator, ensuring durability and comfort during extended use.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 650 RPM |
| Air Consumption | 18 SCFM / 2.79 CFM / 397.6 L/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Angle Height | 38 mm |
| Overall Length | 233 mm |
| Weight | 1.05 kg |
| Exhaust | Rear |
| Noise Level | 81 dBA |
| Air Hose Size | 3/8 in (9.525 mm) |
| Power | 0.9 HP / 0.675 kW |
| Item No. | 71690 |
|---|---|
| Free Speed / RPM | 650 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Angle Height / inch | 1.496062992 |
| Angle Height / mm | 38 |
| Overall Length / inch | 9.173228346 |
| Overall Length / mm | 233 |
| Weight / lb | 2.31 |
| Weight / kg | 1.05 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
Key Features
- Reversible Valve Design: Simple directional valve trigger enables easy switching of tool operation direction.
- Rear Exhaust Design: Exhaust air is directed to the rear, improving performance and operator comfort.
Applications
Applications
Designed for industrial nut installation, the M8 Right Angle Nut Pull Setter is ideal for fastening M3 to M8 iron and stainless steel round and hex nuts. Its compact power and durable construction make it suitable for factory use and heavy-duty assembly lines.
