Product Overview

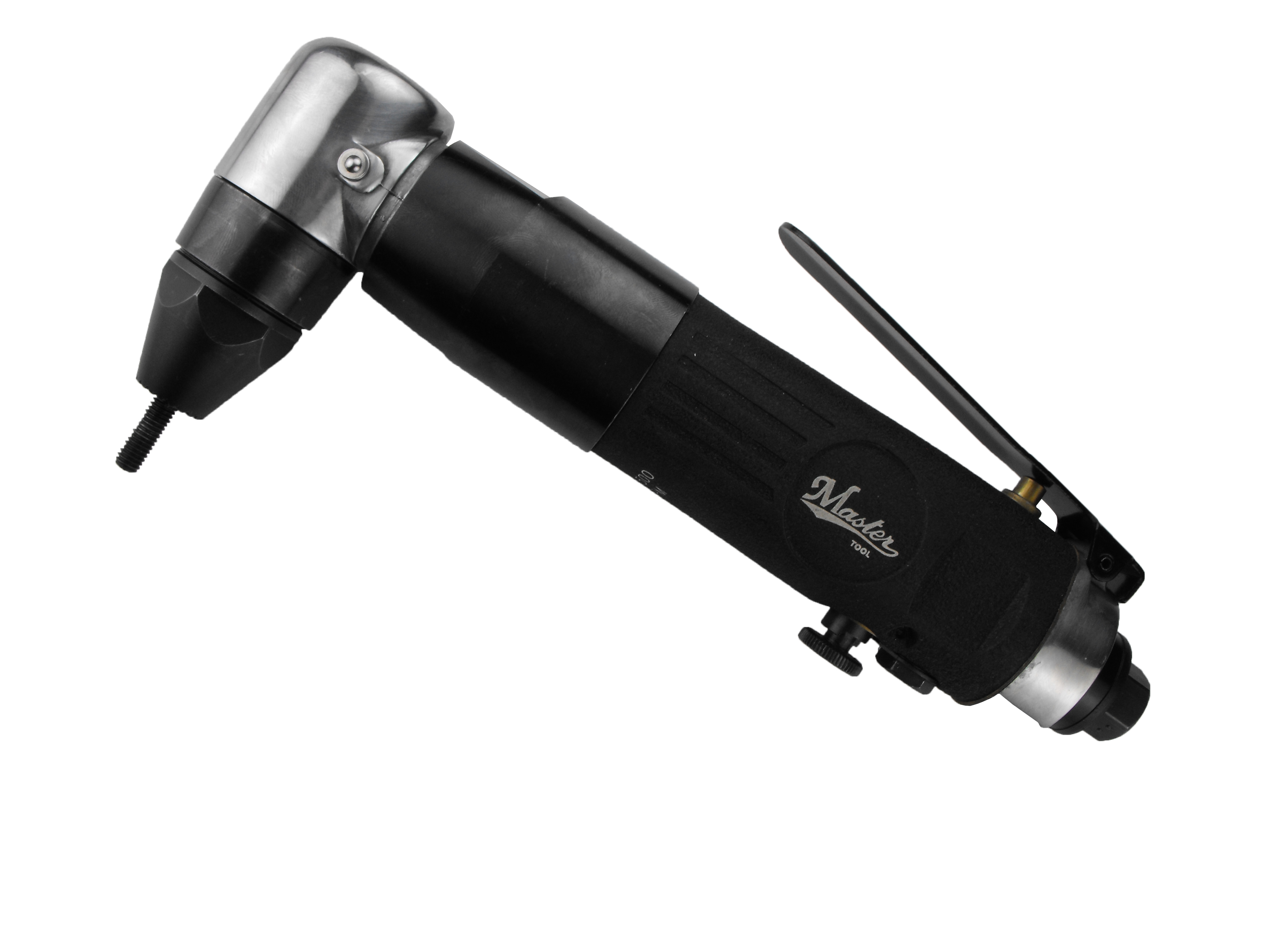

The M6 Right Angle Nut Pull Setter (Rivet Nut Setter) is a pneumatic tool designed for industrial nut installation applications. It features a reversible valve trigger that allows users to easily switch the tool's operating direction. The rear exhaust design improves performance and user comfort during extended factory use.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 650 RPM |
| Air Consumption | 18 SCFM / 2.79 CFM / 397.6 L/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Angle Height | 38 mm (1.496 in) |
| Overall Length | 233 mm (9.17 in) |
| Weight | 1.05 kg (2.31 lb) |
| Exhaust | Rear |
| Noise Level | 81 dBA |
| Air Hose Size | 3/8 in (9.525 mm) |
| Power | 0.675 kW / 0.9 HP |
| Compatible Nut Sizes | Iron Round/Hex M3, M4, M5, M6, M8; Stainless Round/Hex M3, M4, M5, M6 |
| Item No. | 71710 |
|---|---|
| Free Speed / RPM | 650 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Angle Height / inch | 1.496062992 |
| Angle Height / mm | 38 |
| Overall Length / inch | 9.173228346 |
| Overall Length / mm | 233 |
| Weight / lb | 2.31 |
| Weight / kg | 1.05 |
| Exhaust | Rear |
| Noise / dBA | 81 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
Key Features
- Reversible Valve Design: Simple direction valve trigger enables easy change of tool operation direction.
- Rear Exhaust Design: Exhaust is routed to the rear to enhance performance and reduce operator discomfort.
Applications
Industrial Applications
Designed for factory and industrial environments, the M6 Right Angle Nut Pull Setter is ideal for precise installation of rivet nuts in metal assemblies. Its compact power and durable construction support high-volume production and maintenance tasks requiring reliable pneumatic nut setting.
