Product Overview

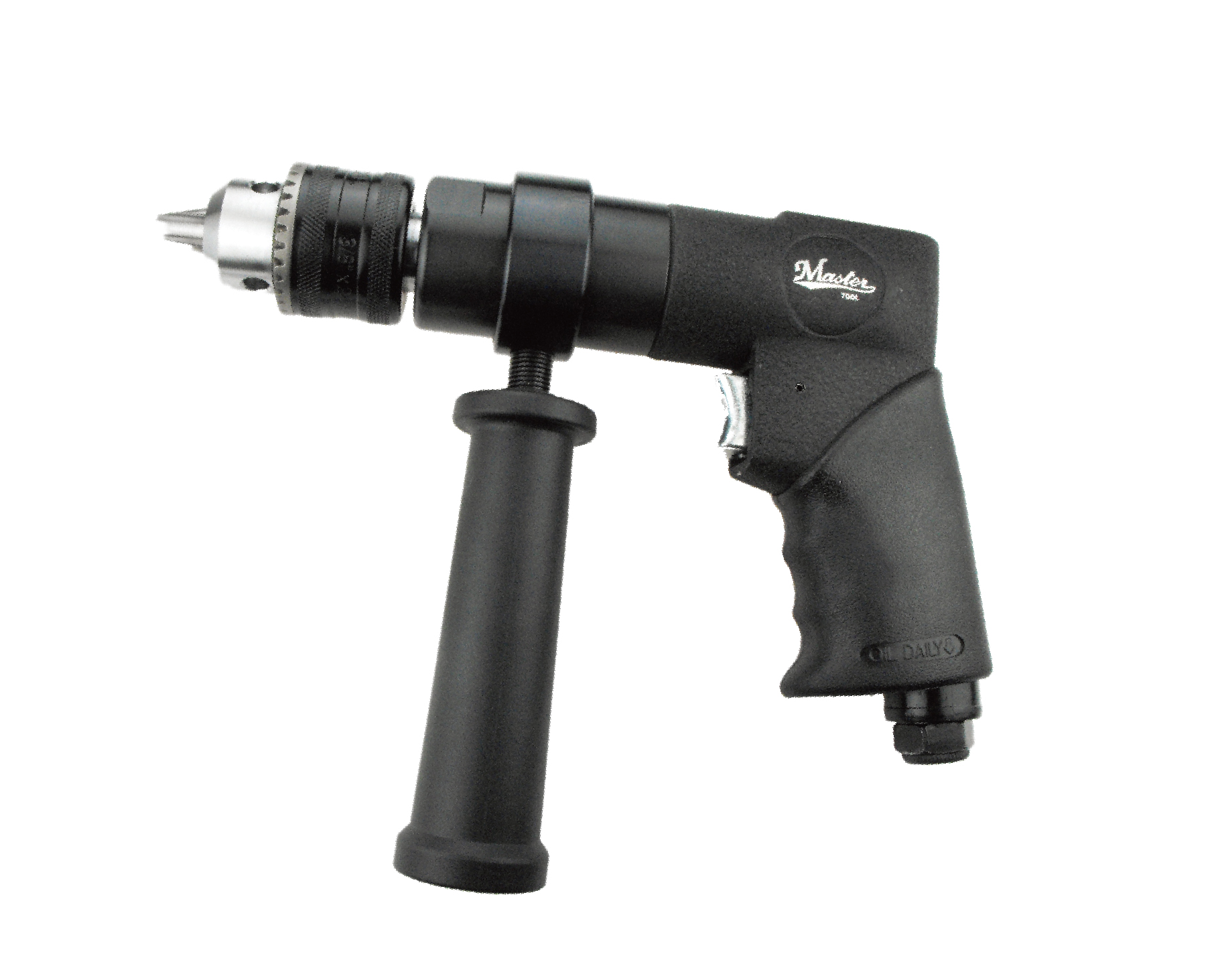

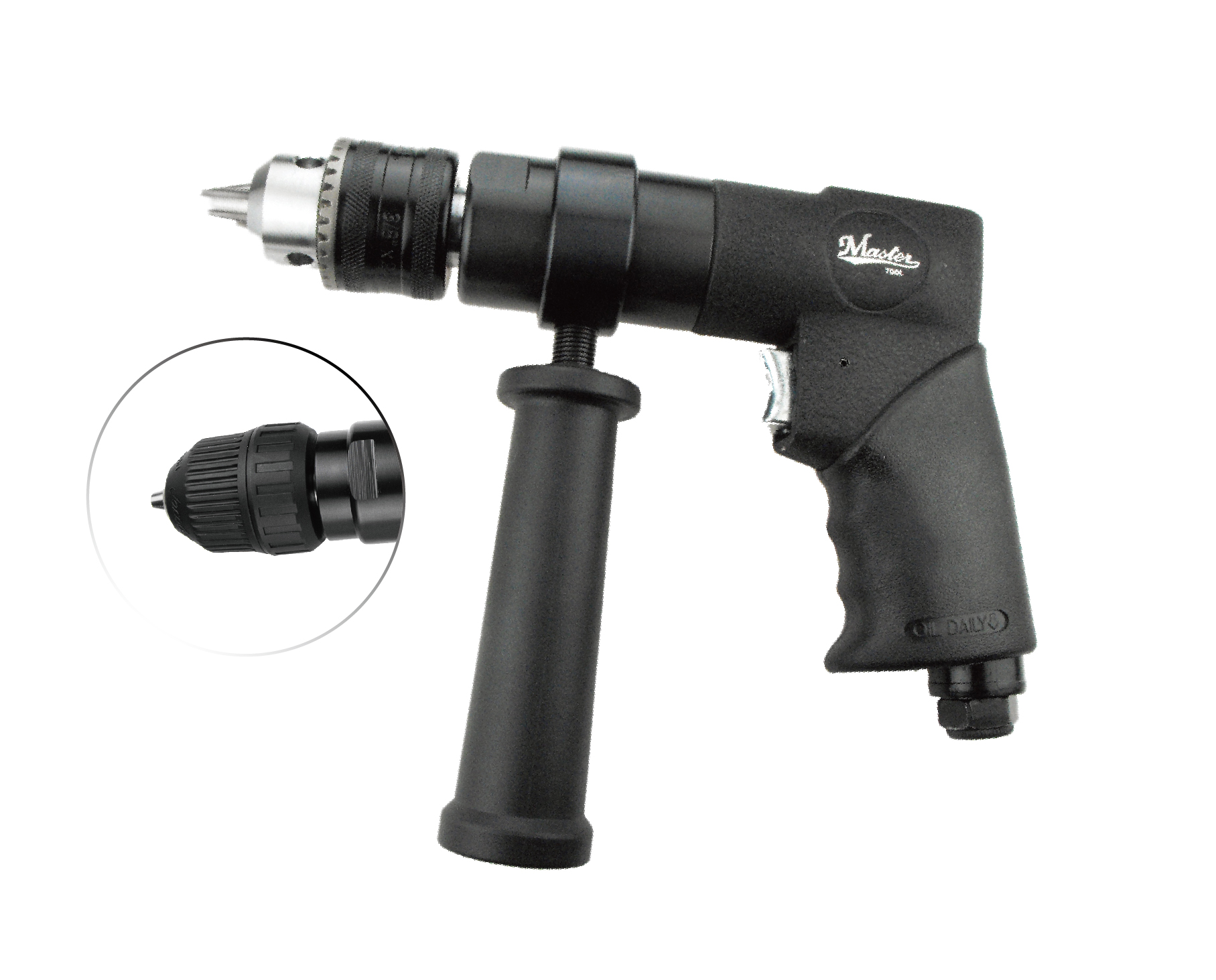

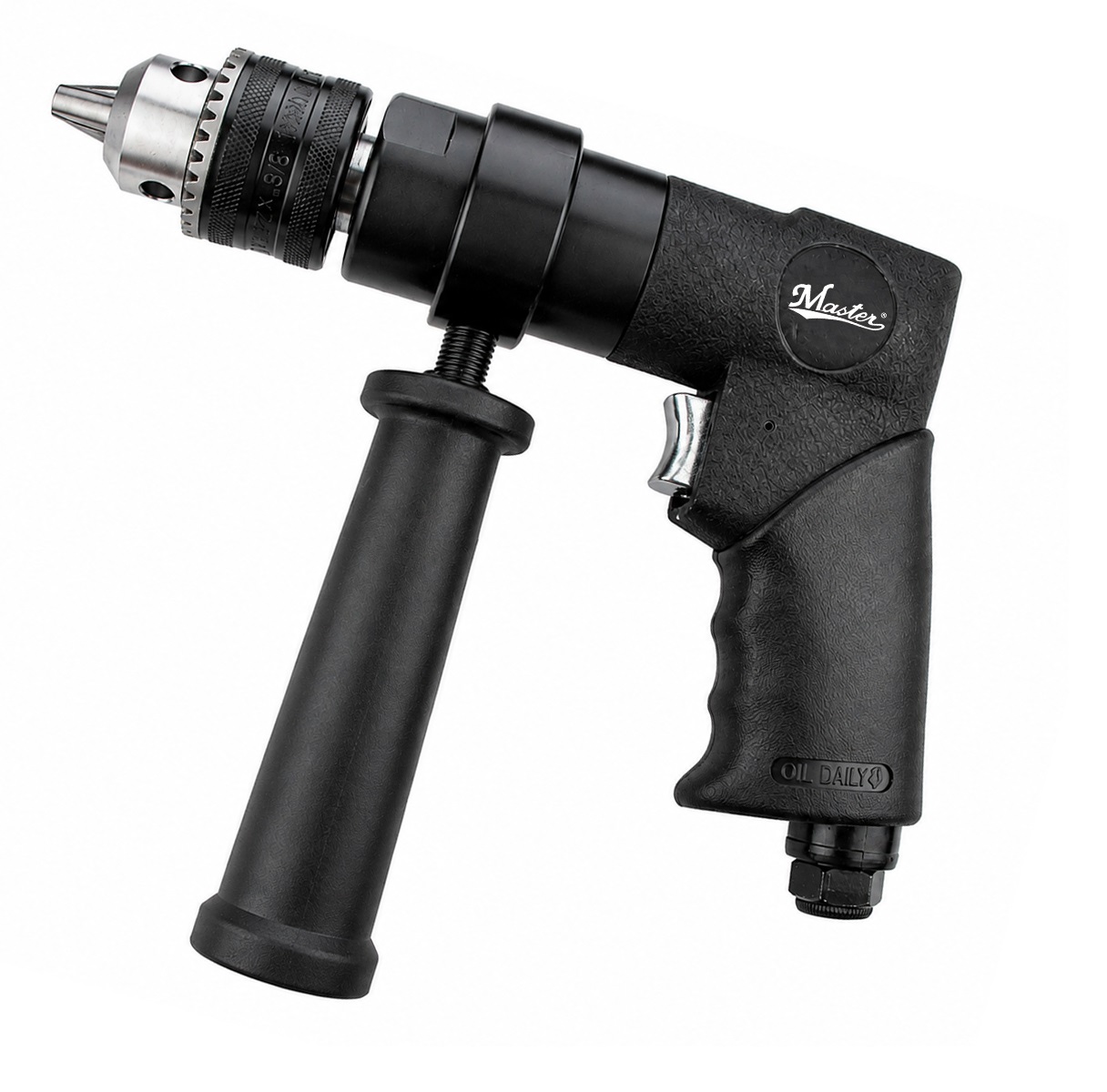

The 1/2" Extra H.D.Rev. Air Drill is designed for industrial applications requiring precision and durability. Equipped with a Jacobs super chuck ball bearing keyed chuck, it ensures tight tolerance drilling. Its special pressure push design improves holding strength by allowing operators to apply palm pressure during use, enhancing control and performance.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 450 RPM |
| Air Consumption | 19.1 SCFM / 13.4 CFM / 22.75 m³/hr / 0.38 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 8.27 in / 210 mm |
| Weight | 0.95 kg / 2.09 lb |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.5 HP |
| Power | 0.38 kW |
| Chuck Size | 1/2" |
| Spindle Thread | 3/8"-24T |
| Item No. | 21550 |
|---|---|
| Free Speed / RPM | 450 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 8.27 |
| Overall Length / mm | 210 |
| Weight / lb | 2.09 |
| Weight / kg | 0.95 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Chuck Size / inch | 1/2" |
| Spindle Thread | 3/8"-24T |
Key Features
Jacobs super chuck ball bearing keyed chuck engineered for heavy-duty, tight tolerance production drilling.
Special pressure push design enhances holding strength by applying palm pressure during operation.
Ergonomically designed for both right-handed and left-handed users.
Suitable for drilling aluminum, tin, brass, and plastic materials.
Provides operator comfort during extended use requiring higher strength and durability.
Applications
Applications
Ideal for factory and industrial environments requiring compact, durable air drills with precise control.
Designed for production drilling tasks involving metals such as aluminum, tin, brass, and plastics.
Suitable for use in assembly lines, maintenance, and repair operations demanding reliable pneumatic tools.
