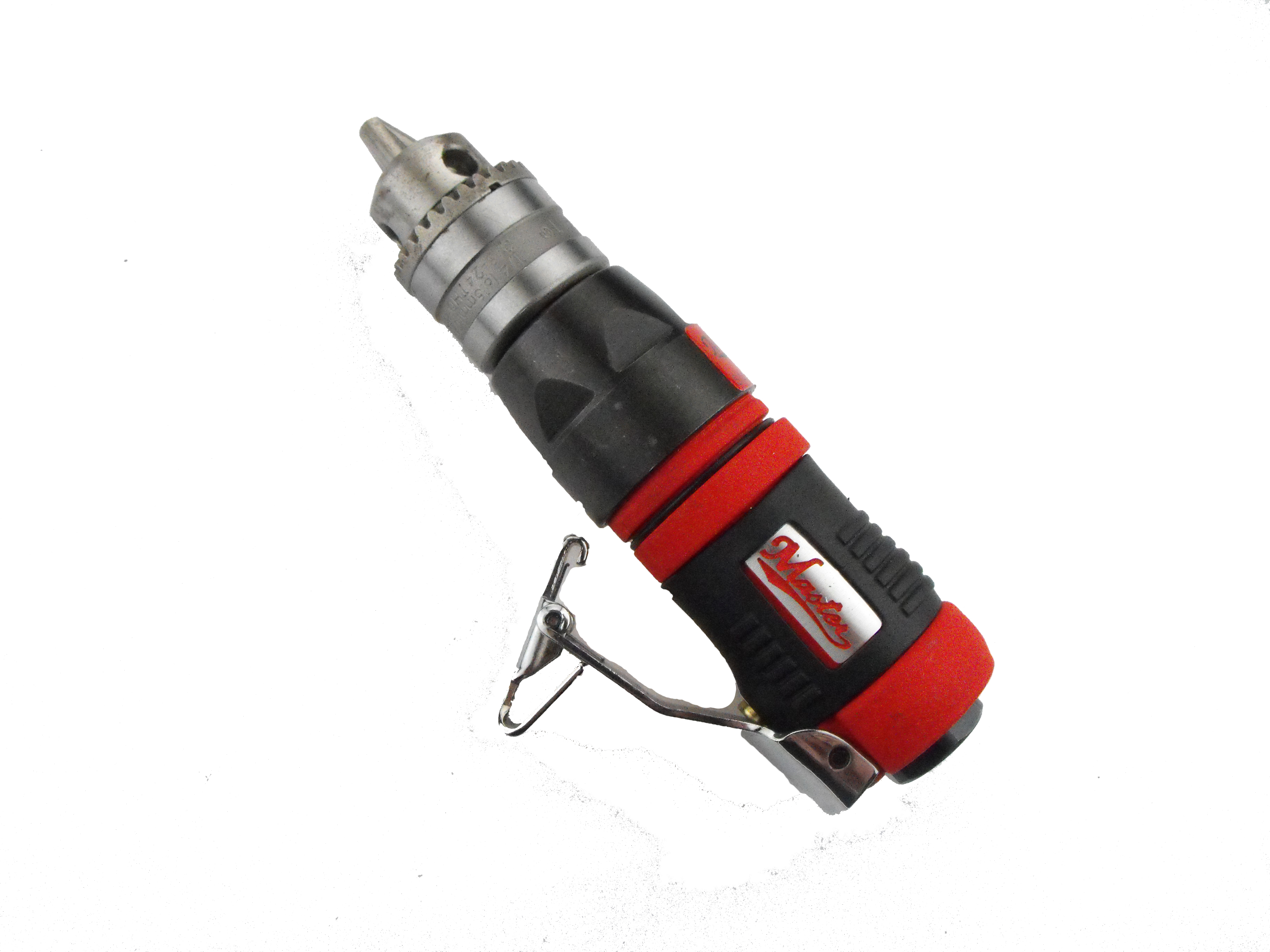

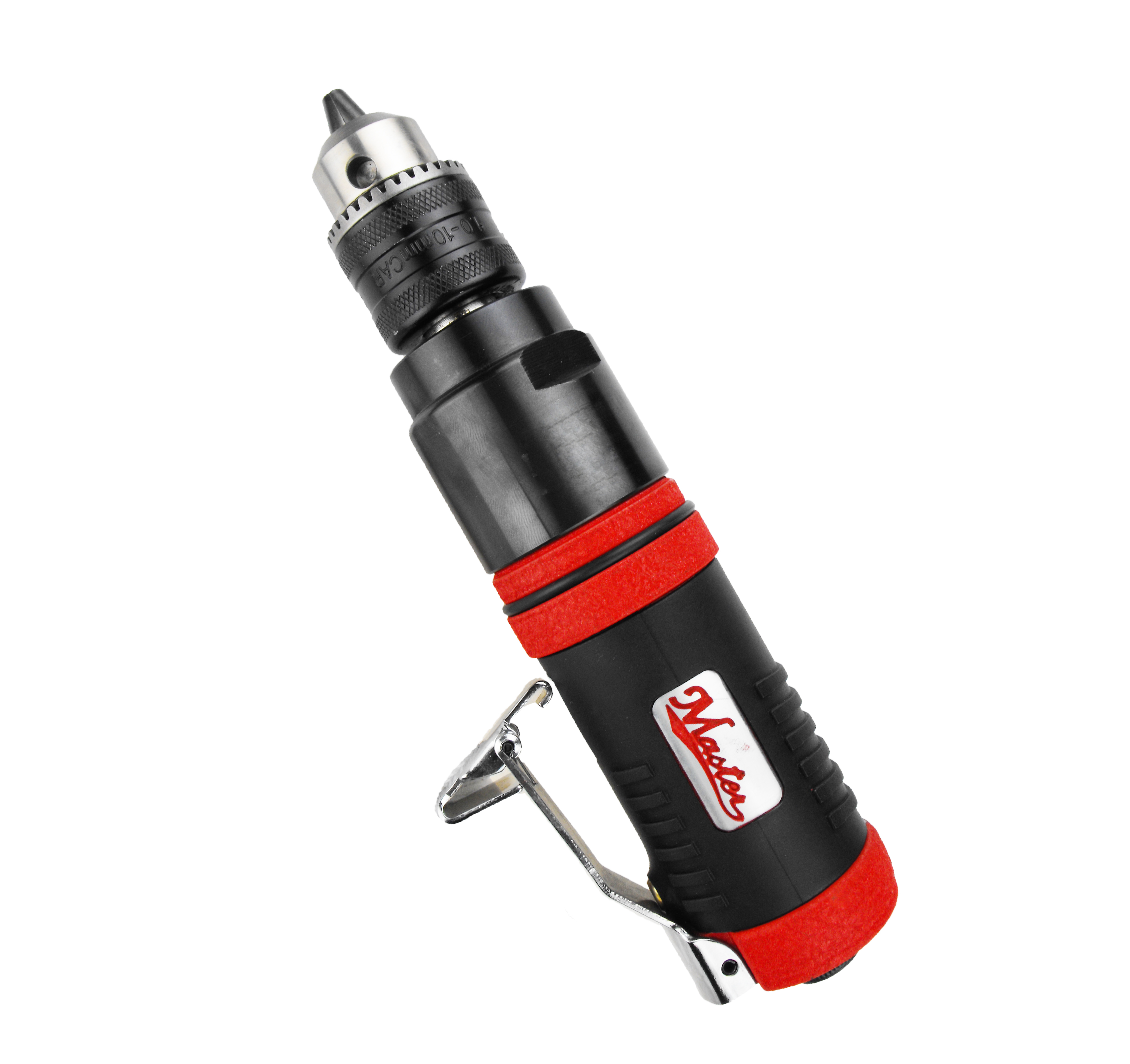

3/8" Straight Air Drill Overview
The 3/8" Straight Air Drill is engineered for industrial environments requiring compact power and durability. Featuring a planetary gear drive and industrial housing grip, it ensures efficient performance while minimizing user vibration. Designed for factory use, it supports precise touch drilling and tough drilling tasks with reliable safety throttle control.
| Item No. | 28680 |
|---|---|
| Free Speed / RPM | 2500 |
| Air Consumption / SCFM | 20 |
| Air Consumption / CFM | 2.81 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 7.992125984 |
| Overall Length / mm | 203 |
| Weight / lb | 2.75 |
| Weight / kg | 1.25 |
| Exhaust | Rear |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
| Chuck Size / inch | 3/8 |
| Chuck Size / mm | 10 |
| Spindle Thread | 3/8-24T |
Key Features
- Industrial Housing Grip: Designed to coordinate powerful performance and protect users from vibration.
- Planetary Gear Drive: Provides robust and efficient power transmission for demanding drilling operations.
- Safety Throttle Control: Safety lever design enables precise air flow adjustment and prevents accidental startup.
Applications
Applications
- Touch Drilling: Compact size without compromising power, ideal for precise drilling tasks.
- Tough Drilling Tasks: Built to handle demanding industrial drilling requirements with durability and control.
