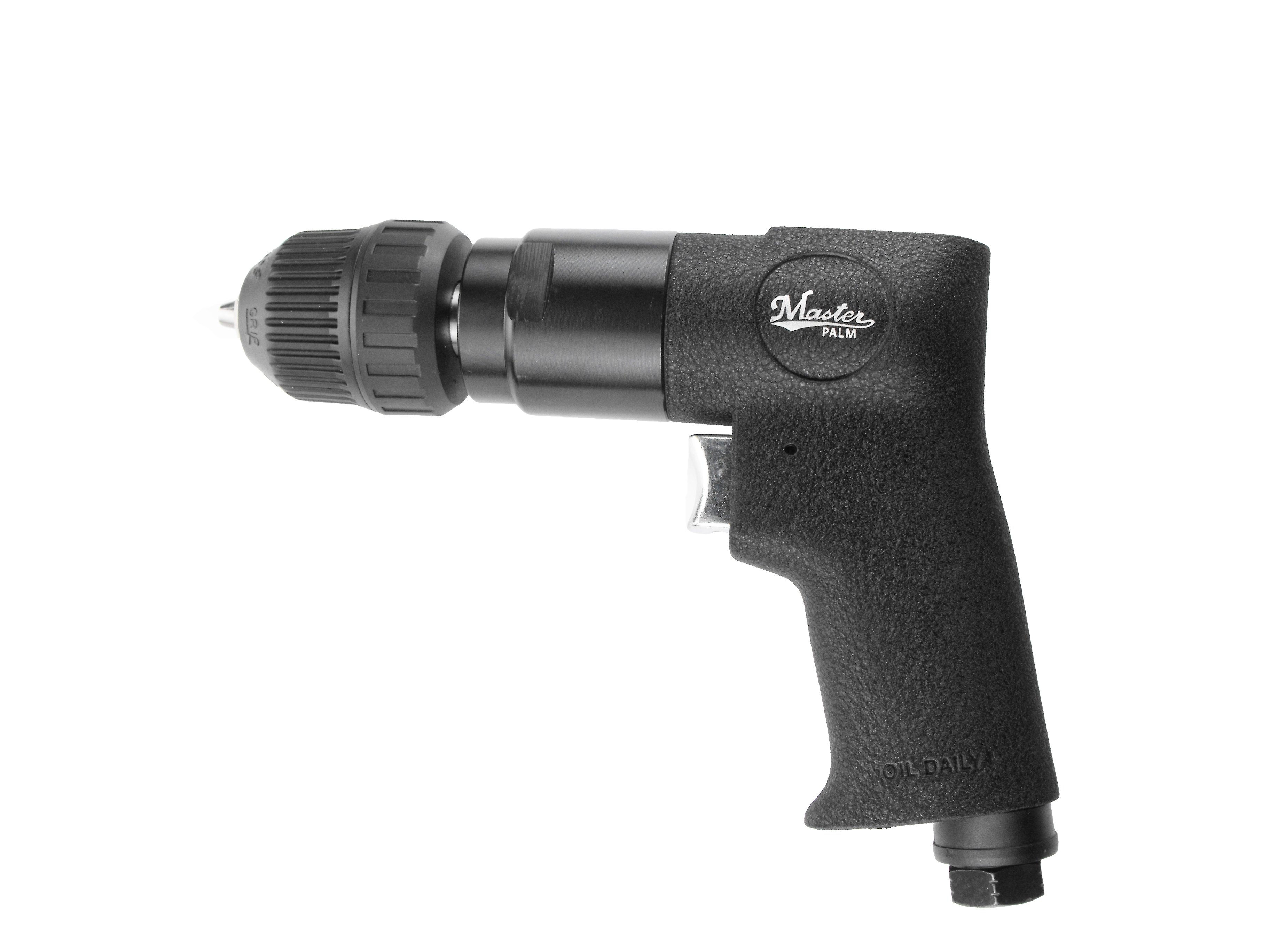

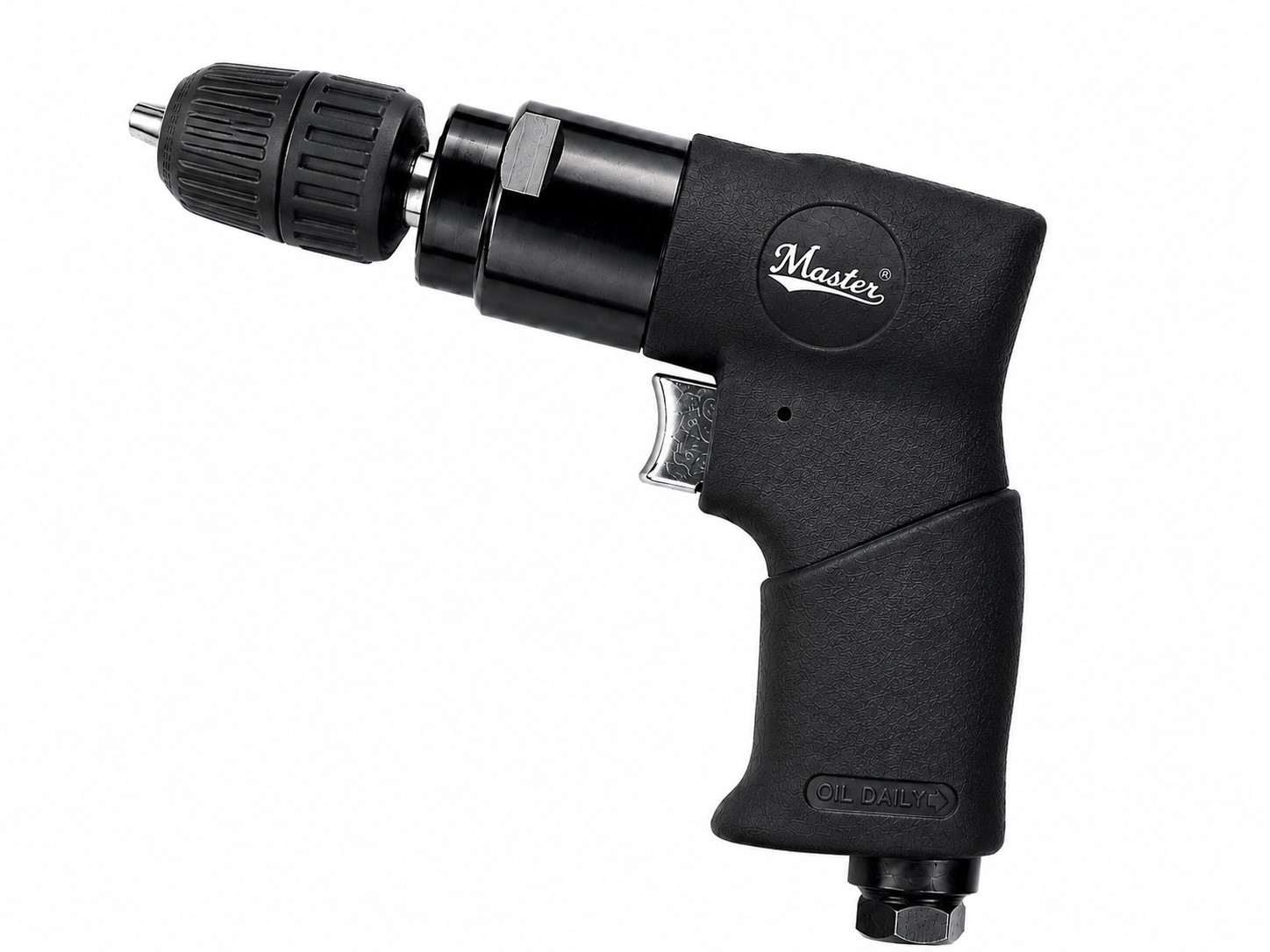

3/8" Pistol Air Drill Overview
The 3/8" Pistol Air Drill is part of MasterPalm's Heavy Duty series, designed for professional industrial applications requiring precision and durability. Equipped with a high-quality Jacob keyless chuck, this pneumatic tool delivers reliable performance for various drilling tasks.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 2000 RPM |
| Air Consumption | 17 SCFM / 2.3885 CFM / 375.5232 m³/hr / 6.25872 m³/min |
| Air Pressure | 6.3279 kg/cm² / 90 PSIA / 6.2055 bar / 620.55 kPa |
| Overall Length | 200 mm / 7.874 in |
| Weight | 1.15 kg / 2.53 lb |
| Exhaust | Rear |
| Noise Level | 88 dBA |
| Air Hose Size | 3/8 in / 9.525 mm |
| Horsepower | 0.5 HP / 0.375 kW |
| Chuck Size | 3/8 in / 10 mm |
| Spindle Thread | 3/8-24T |
| Item No. | 21530K |
|---|---|
| Free Speed / RPM | 2000 |
| Air Consumption / SCFM | 17 |
| Air Consumption / CFM | 2.3885 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 7.874015748 |
| Overall Length / mm | 200 |
| Weight / lb | 2.53 |
| Weight / kg | 1.15 |
| Exhaust | Rear |
| Noise / dBA | 88 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.5 |
| kW | 0.375 |
| Chuck Size / inch | 3/8 |
| Chuck Size / mm | 10 |
| Spindle Thread | 3/8-24T |
Key Features
- Powerful motor delivering strong, high performance
- Non-reversible design for enhanced control and efficiency
- Ergonomic push point for comfortable operation
- Rubber jacket grip for secure handling in industrial environments
- Pressure push tail design for reliable trigger response
- Heavy Duty series construction for durability in factory use
- High-quality Jacob keyless chuck for precise drilling with ordinary or sets of drill bits
Applications
Applications
Designed for industrial and factory environments, the 3/8" Pistol Air Drill is ideal for precise drilling tasks requiring durability and consistent performance. Its robust construction and keyless chuck support a wide range of drilling operations with ordinary or sets of drill bits.
