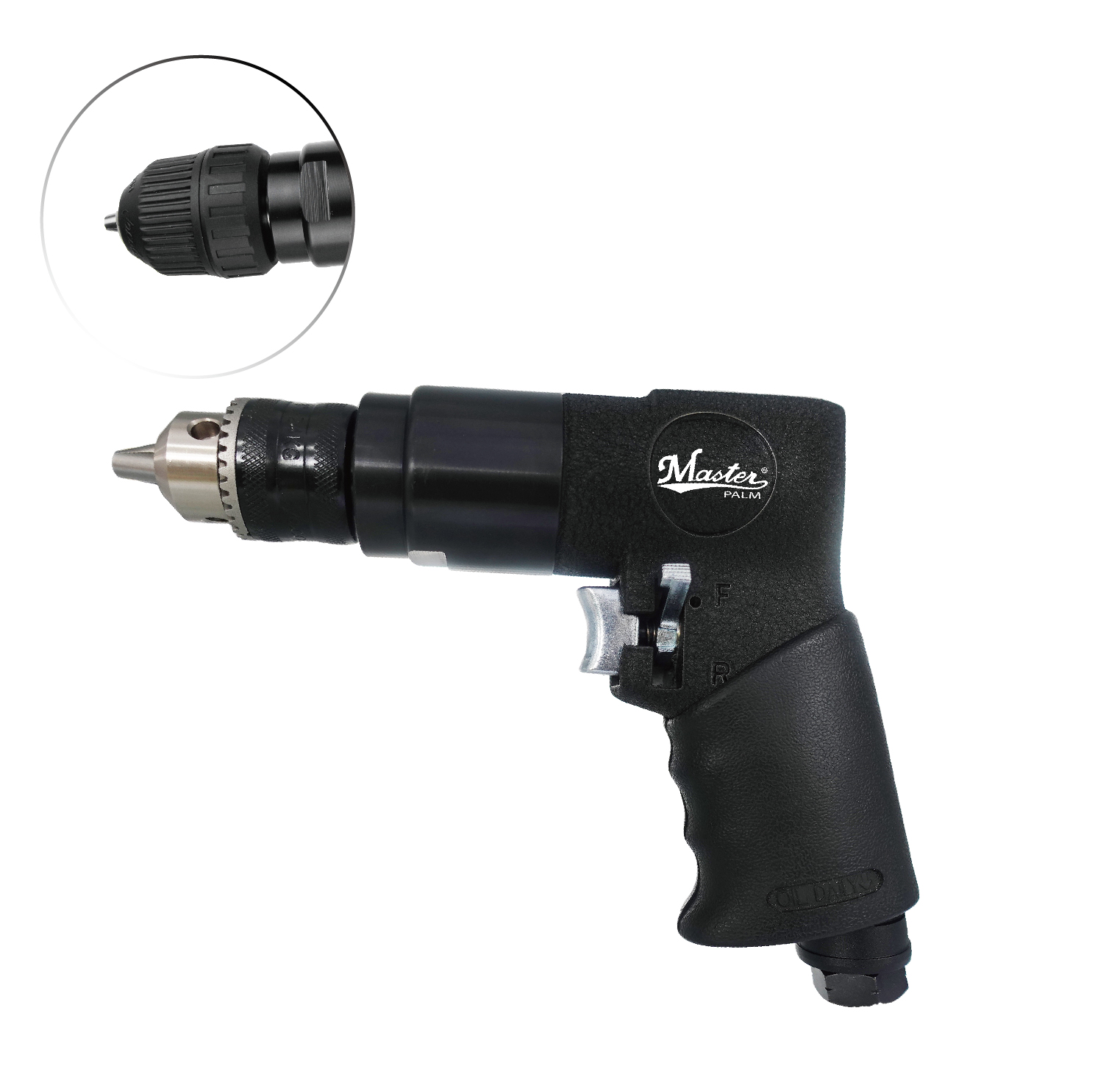

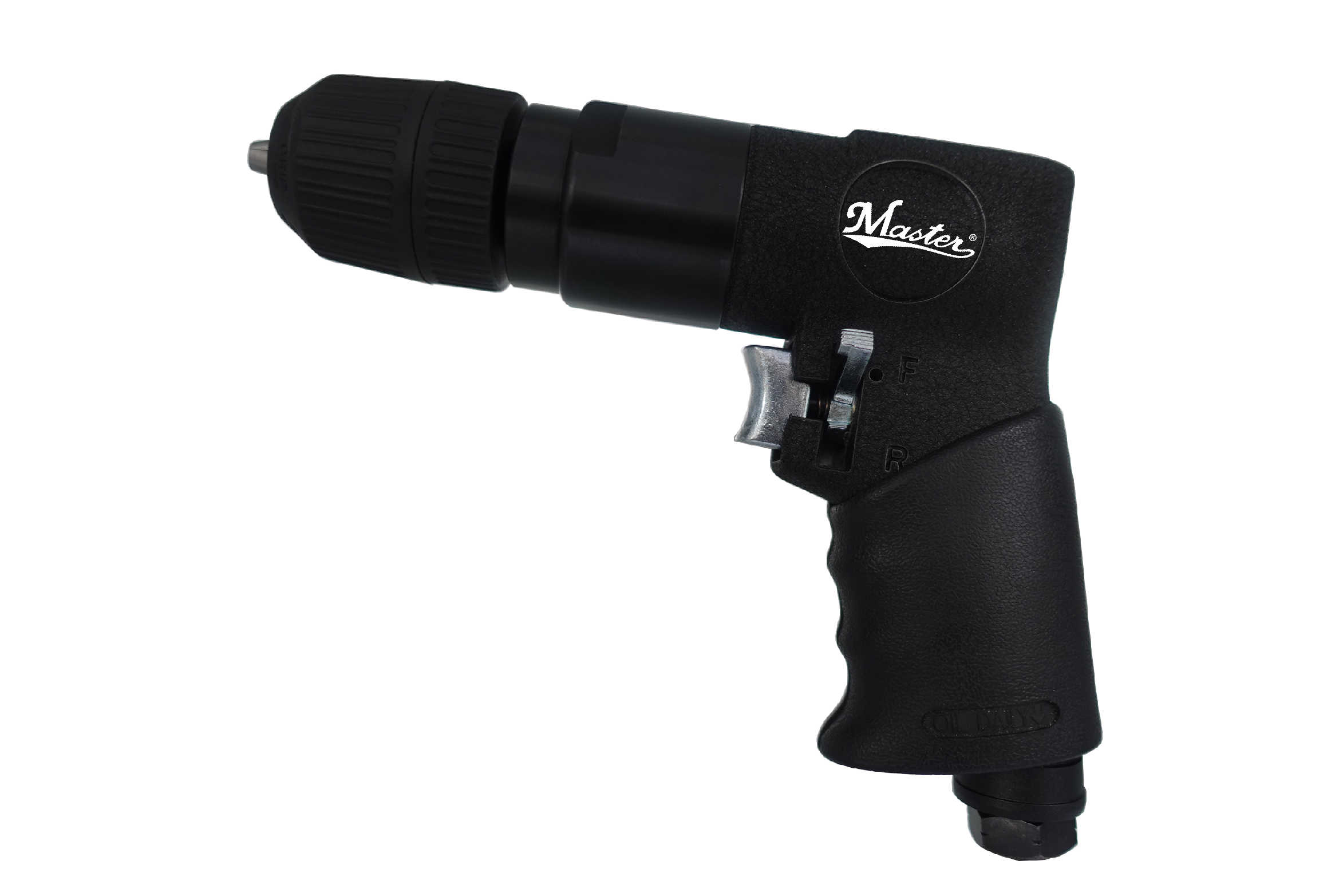

3/8" Reversible Air Drill Overview
The 3/8" Reversible Air Drill is engineered for industrial applications requiring precision and durability. Equipped with a Jacobs super chuck ball bearing keyed chuck, it ensures tight tolerance drilling. The ergonomic palm curve tail design enhances push point strength, complemented by a side handle for improved control. The drill easily switches between reverse and forward directions, optimizing workflow efficiency.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 2000 RPM |
| Air Consumption | 19.1 SCFM / 13.4 CFM / 22.75 m³/hr / 0.38 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 7.87 in / 200 mm |
| Weight | 1.5 kg / 3.3 lb |
| Exhaust | Side |
| Noise Level | 82 dBA |
| Air Hose Size | 3/8" in / 9.5 mm |
| Horsepower | 0.5 HP / 0.38 kW |
| Chuck Size | 3/8" in |
| Spindle Thread | 3/8"-24T |
| Item No. | 21520K |
|---|---|
| Free Speed / RPM | 2000 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 7.87 |
| Overall Length / mm | 200 |
| Weight / lb | 3.3 |
| Weight / kg | 1.5 |
| Exhaust | Side |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Chuck Size / inch | 3/8" |
| Spindle Thread | 3/8"-24T |
Key Features
- Jacobs Super Chuck Ball Bearing Keyed Chuck: Engineered for heavy-duty, tight tolerance production drilling.
- Ergonomic Palm Curve Tail Design: Provides easy push point strength for operator comfort and control.
- Side Handle: Enhances stability and handling during operation.
- Reversible Operation: Simple switching between reverse and forward directions for versatile use.
Applications
Industrial Applications
Designed for factory and heavy industrial environments, the 3/8" Reversible Air Drill is ideal for precision drilling tasks requiring durability and consistent performance. Its compact power and ergonomic design support extended use in assembly lines, maintenance, and production facilities worldwide.
