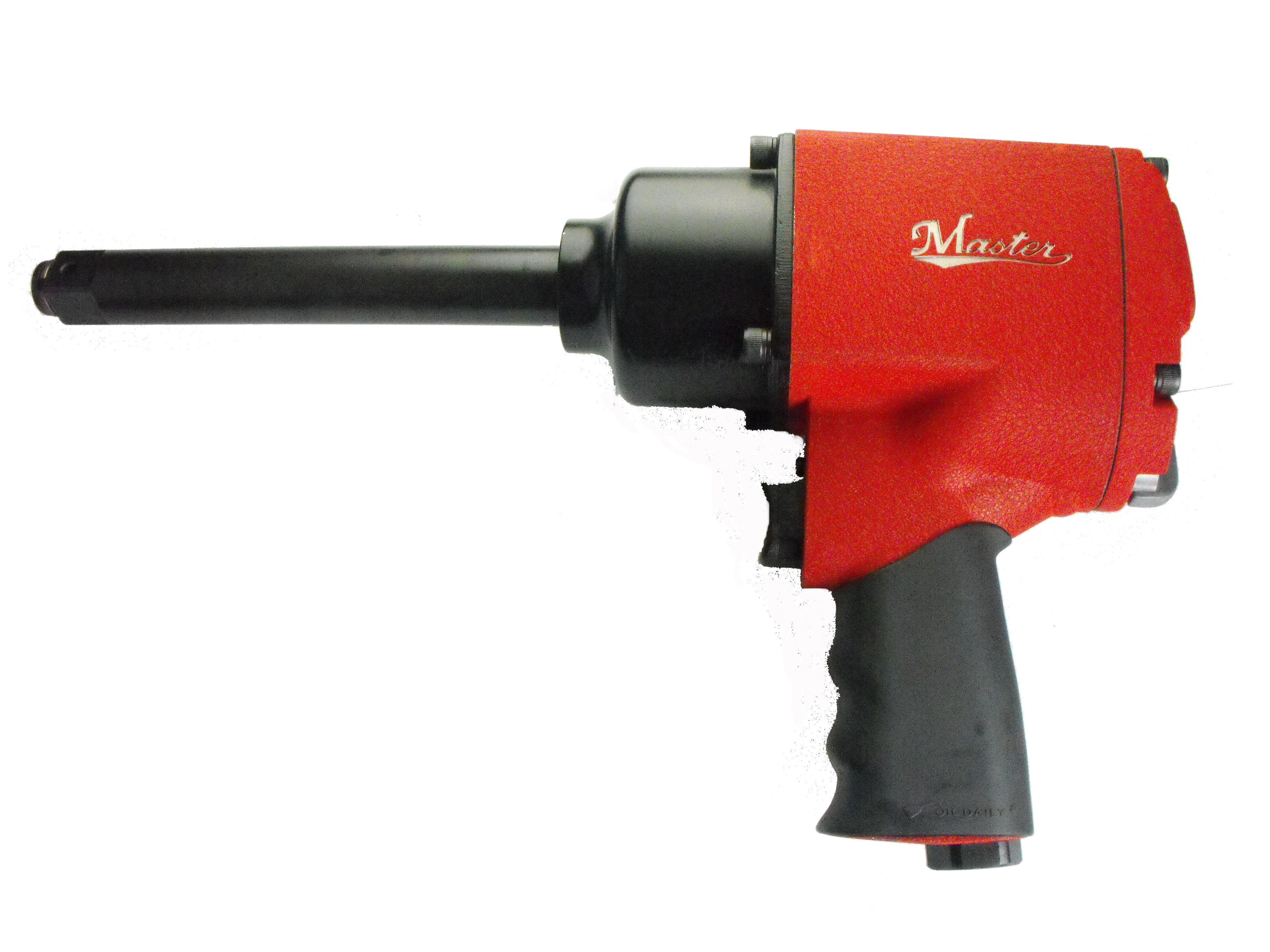

3/4" Impact Wrench (Long Anvil)
This industrial-grade pneumatic impact wrench features a 3/4" square drive and twin hammer design, providing balanced and instantaneous blows for heavy-duty applications. The long anvil design enables operators to reach deeper spaces without compromising performance. Engineered for factory use, it offers a free speed of 6000 RPM and a maximum torque of 1000 ft-lb, ensuring compact power and durability.
| Specification | Value |
|---|---|
| Free Speed | 6000 RPM |
| Air Consumption | 25 SCFM / 9.204 m³/min |
| Air Pressure | 90 PSIA / 6.2055 bar |
| Overall Length | 359 mm (14.13 in) |
| Weight | 20.02 lb (9.1 kg) |
| Square Drive | 3/4 in (19.05 mm) |
| Max Torque | 1000 ft-lb (1356 Nm) |
| Impact Type | Twin Hammer |
| Noise Level | 94 dBA |
| Item No. | 68260L |
|---|---|
| Free Speed / RPM | 6000 |
| Air Consumption / SCFM | 25 |
| Air Consumption / CFM | 3.5125 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 14.13385827 |
| Overall Length / mm | 359 |
| Weight / lb | 20.02 |
| Weight / kg | 9.1 |
| Exhaust | Side |
| Noise / dBA | 94 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.53 |
| kW | 0.3975 |
| Square Drive / inch | 3/4 |
| Max Torque / ft-lb | 1000 |
| Max Torque / Nm | 1356 |
| 5 Sec Torque / ft-lb | 950 |
| 5 Sec Torque / Nm | 1288.2 |
| Impact Type | twin hammer |
| Impact Per Minute | 1000 |
Features
MASTER PALM INDUSTRIAL SERIES IMPACT WRENCH with 3/4" square drive and twin hammer mechanism delivers balanced, instantaneous blows for maximum durability and power. The tool operates at a free speed of 6000 RPM, optimized for heavy industrial tasks requiring compact power and reliability.
Applications
Applications
The twin hammer design is ideal for heavy-duty industrial jobs, providing durable and balanced impact force. The long anvil design allows users to access deeper spaces, enhancing operational reach and efficiency in factory and industrial environments.
