Overview

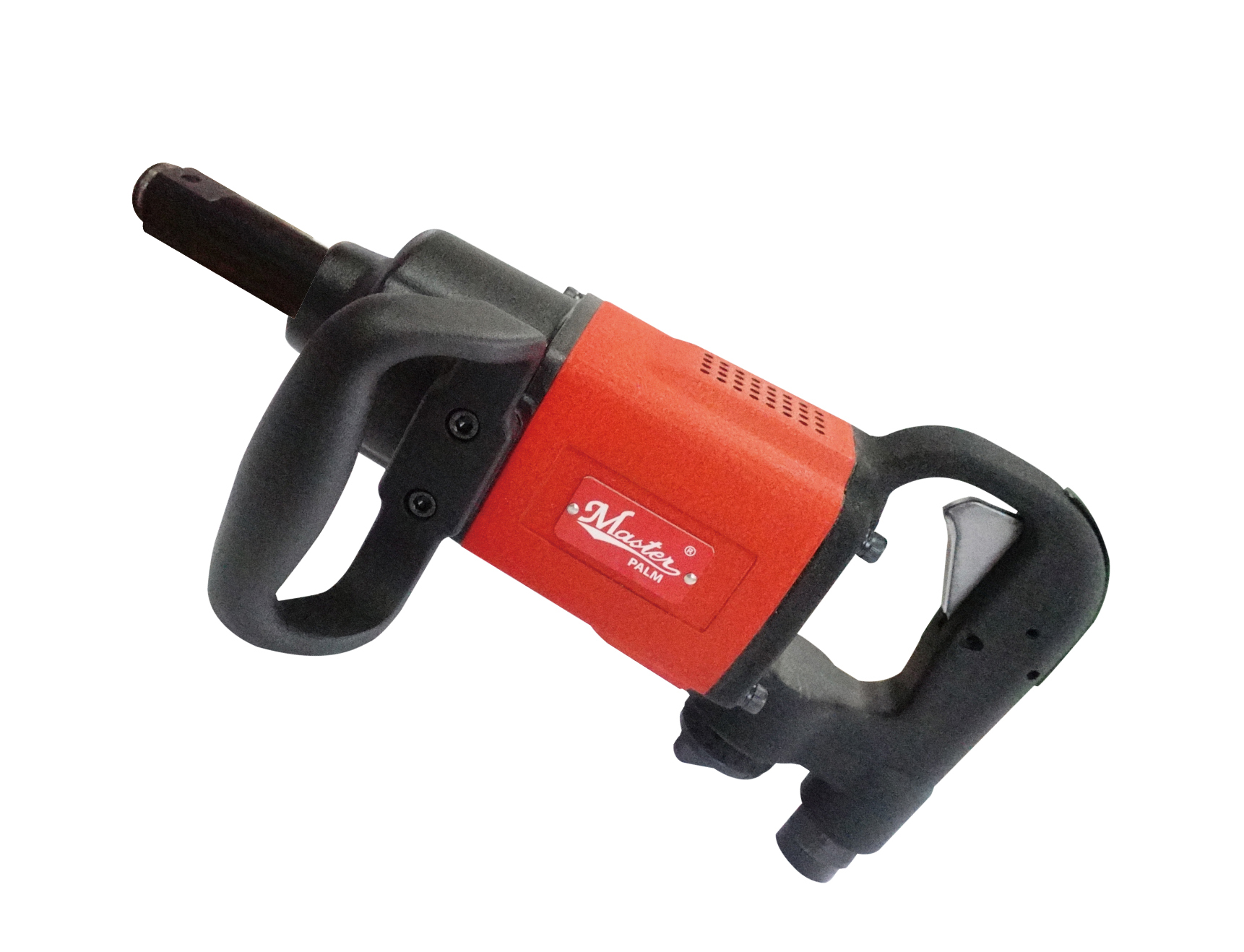

The 1" Heavy Duty Mini Impact Wrench is built for demanding industrial environments requiring compact power and durability. Its twin hammer mechanism ensures balanced impact delivery, reducing vibration and transferring maximum torque to the drive.
Specifications
| Specification | Value |
|---|---|
| Free Speed | 5000 RPM |
| Air Consumption | 24.6 SCFM / 17.3 CFM / 29.37 m³/hr / 0.49 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 13.3 in / 339 mm |
| Weight | 6.5 kg / 14.3 lb |
| Exhaust | Top |
| Noise Level | 98 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Square Drive | 1" / 25.4 mm |
| Max Torque | 2500 ft-lb / 3390 Nm |
| Item No. | 68450 |
|---|---|
| Free Speed / RPM | 5000 |
| Air Consumption / SCFM | 24.6 |
| Air Consumption / CFM | 17.3 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 13.3 |
| Overall Length / mm | 339 |
| Weight / lb | 14.3 |
| Weight / kg | 6.5 |
| Exhaust | Top |
| Noise / dBA | 98 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Square Drive / inch | 1" |
| Max Torque / ft-lb | 2500 |
| Max Torque / Nm | 3390 |
Key Features
The most durable hammer mechanism designed for industrial heavy-duty impact wrench applications. Twin hammers use two identical hammers delivering instantaneous balanced blows while reducing vibration. This design transfers more torque to the drive than other impact wrench types. Adjustable torque switch allows precise torque control. Flex D-Handle provides superior balance during operation. Equipped with a new power motor design that supports high power output, extends motor life, reduces air consumption, and decreases tool weight compared to traditional motors.
Applications
Applications
Ideal for industrial heavy-duty jobs requiring reliable torque delivery and durability. Suitable for factory use, assembly lines, maintenance, and repair tasks where compact power and vibration reduction are critical.
