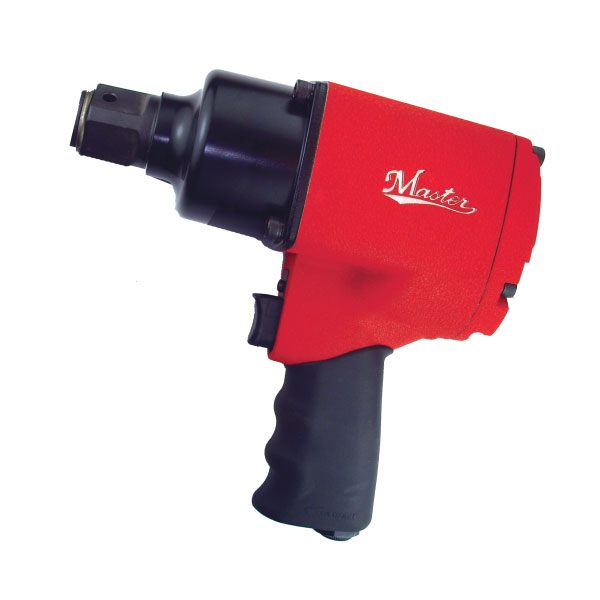

1" Impact Wrench (Short Anvil) Overview
This impact wrench is designed for heavy-duty industrial applications, featuring a robust twin hammer mechanism that delivers balanced blows to maximize torque transfer while minimizing vibration. Its lightweight aluminum housing and oil-free design ensure reliable operation and ease of maintenance. The tool includes a torque control switch for precise adjustment and a rubber cushion grip to enhance operator comfort during extended use.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 6000 RPM |
| Max Torque | 1200 ft-lb (1627.2 Nm) |
| 5 Sec Torque | 1050 ft-lb (1423.8 Nm) |
| Air Pressure | 90 PSIA (6.2055 bar) |
| Air Consumption | 7.025 CFM (18.408 m³/min) |
| Weight | 9.46 lb (4.3 kg) |
| Square Drive | 1 inch (25.4 mm) |
| Noise Level | 94 dBA |
| Air Hose Size | 3/8 inch (9.525 mm) |
| Impact Type | Twin Hammer |
| Impacts Per Minute | 1000 IPM |
| Overall Length | 8.46 inch (215 mm) |
| Item No. | 68280 |
|---|---|
| Free Speed / RPM | 6000 |
| Air Consumption / SCFM | 50 |
| Air Consumption / CFM | 7.025 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 8.464566929 |
| Overall Length / mm | 215 |
| Weight / lb | 9.46 |
| Weight / kg | 4.3 |
| Exhaust | Side |
| Noise / dBA | 94 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.53 |
| kW | 0.3975 |
| Square Drive / inch | 1 |
| Max Torque / ft-lb | 1200 |
| Max Torque / Nm | 1627.2 |
| 5 Sec Torque / ft-lb | 1050 |
| 5 Sec Torque / Nm | 1423.8 |
| Impact Type | twin hammer |
| Impact Per Minute | 1000 |
Key Features
- Twin Hammer Design for maximum torque and reduced vibration
- Lightweight Aluminum Housing with oil-free operation
- Adjustable Torque Control Switch for precise torque settings
- Rubber Cushion Grip to reduce operator fatigue and vibration
- Reliable Air Flow Control for consistent performance and extended tool life
Applications
Industrial Applications
Engineered for heavy-duty industrial tasks, this impact wrench excels in applications requiring high torque and durability. The twin hammer mechanism delivers balanced impacts that enhance fastening efficiency while minimizing vibration transfer. Its compact design and ergonomic grip make it suitable for factory maintenance, assembly lines, and other demanding environments where reliable pneumatic tools are essential.
